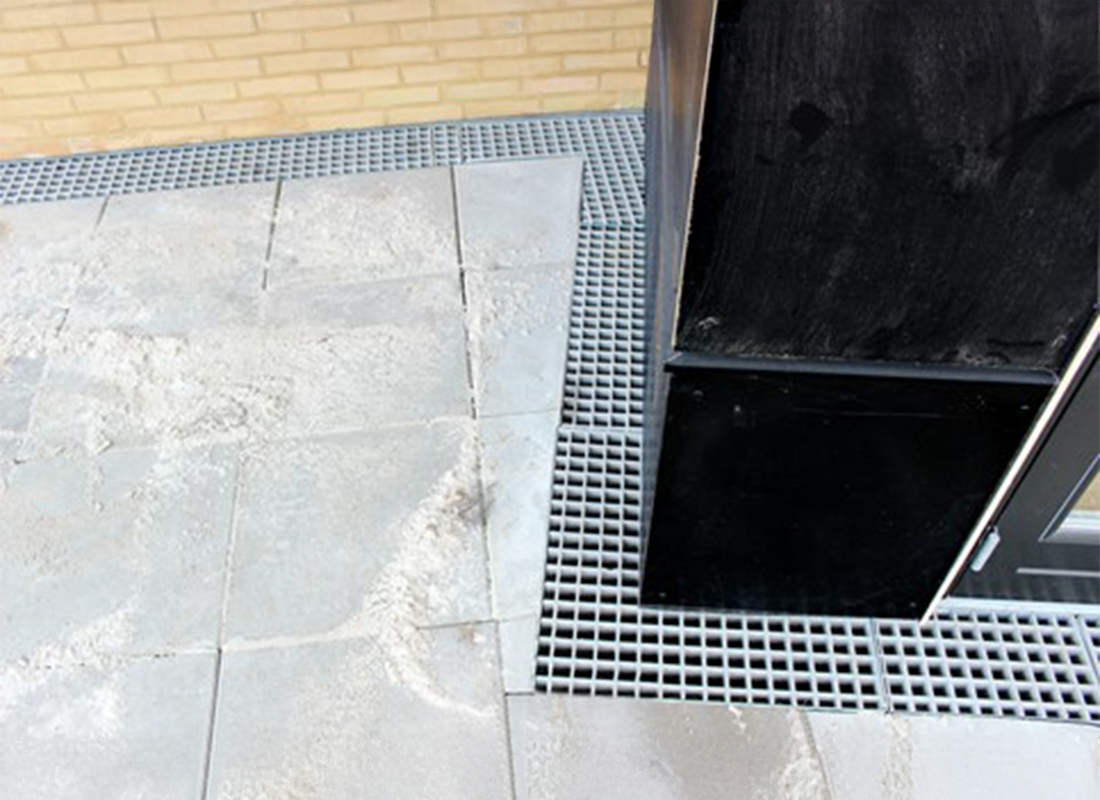

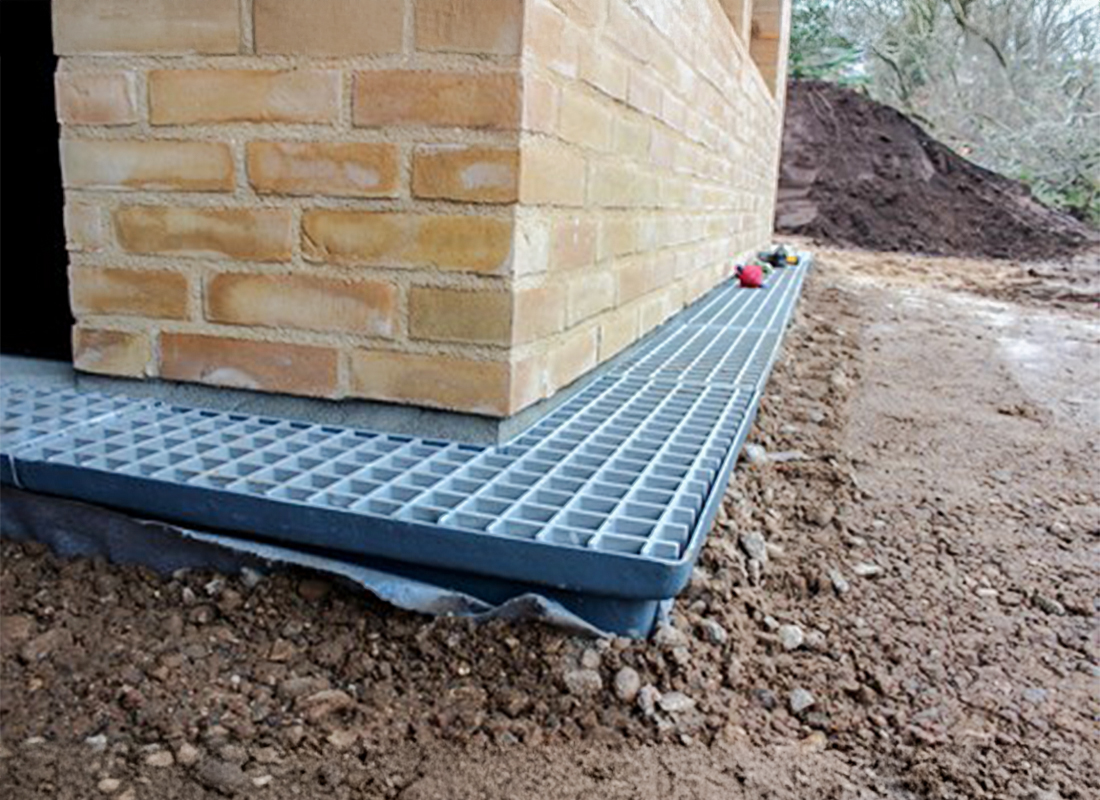

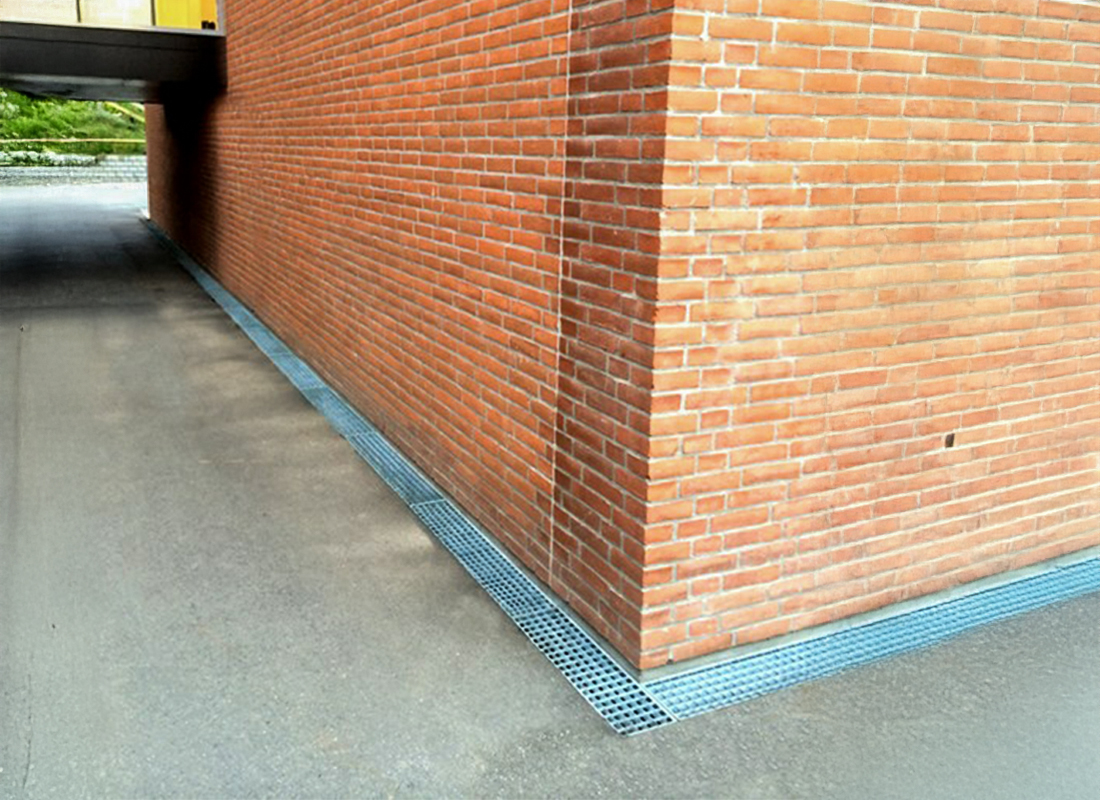

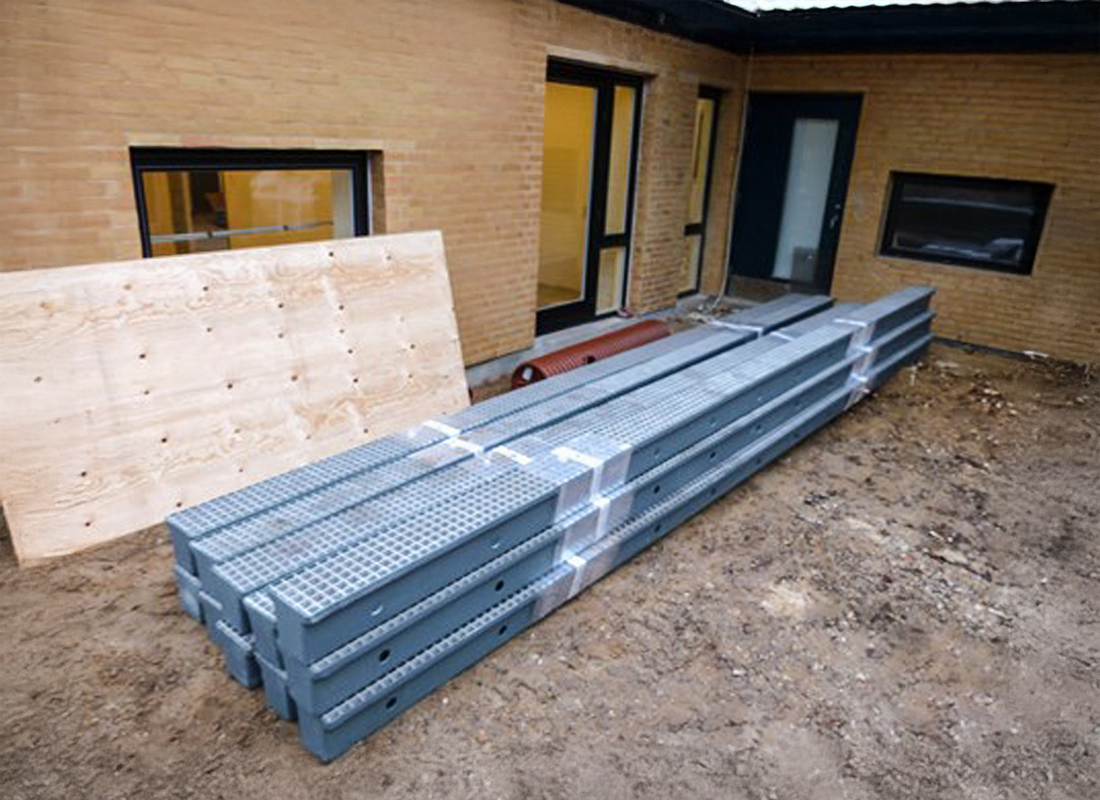

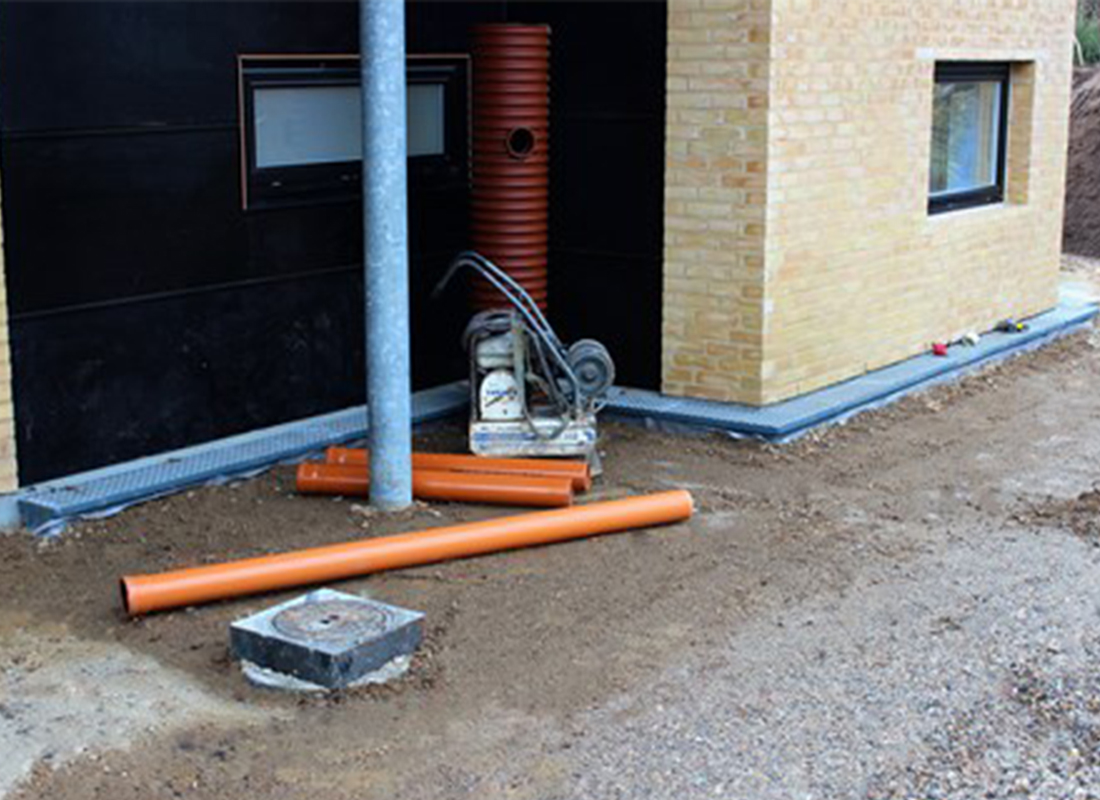

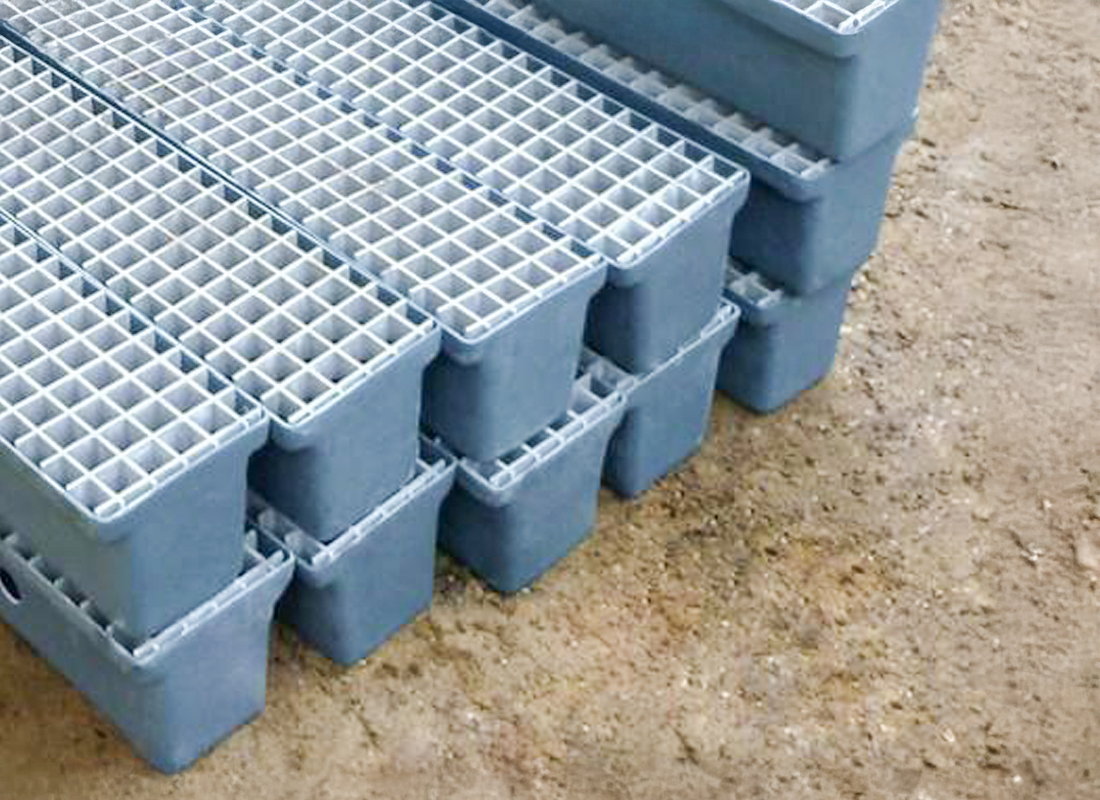

Foundation Perimeter Drain Channels

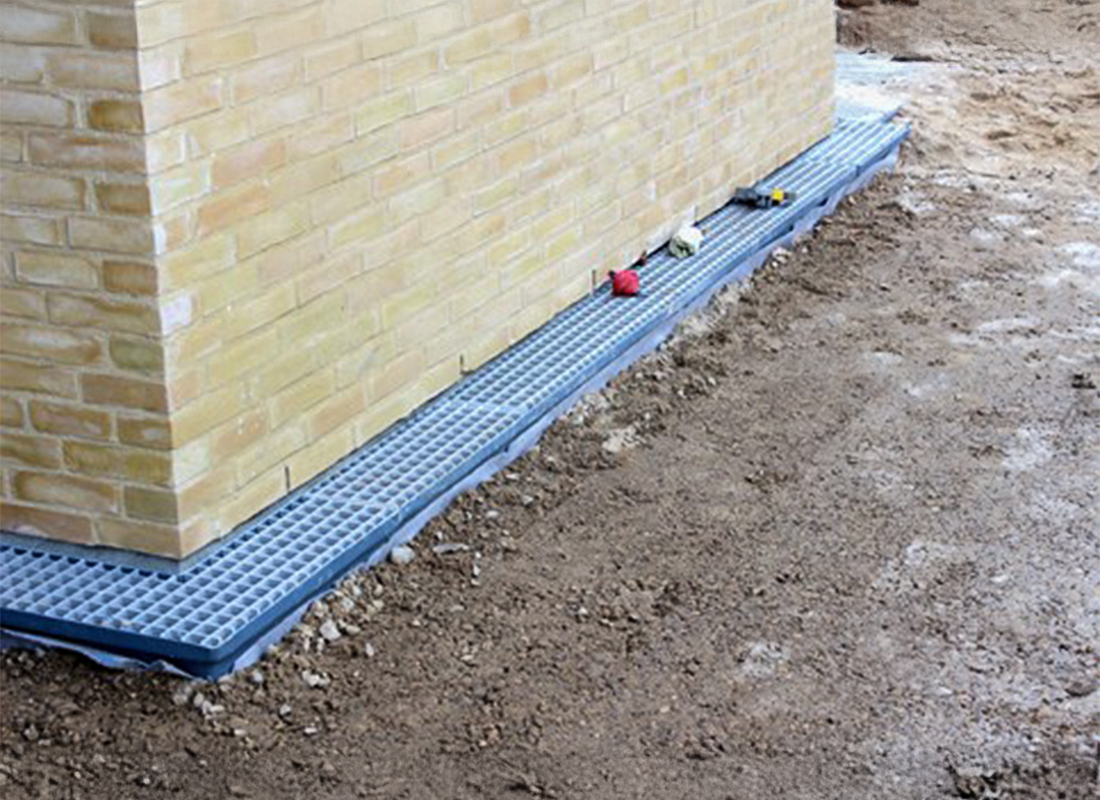

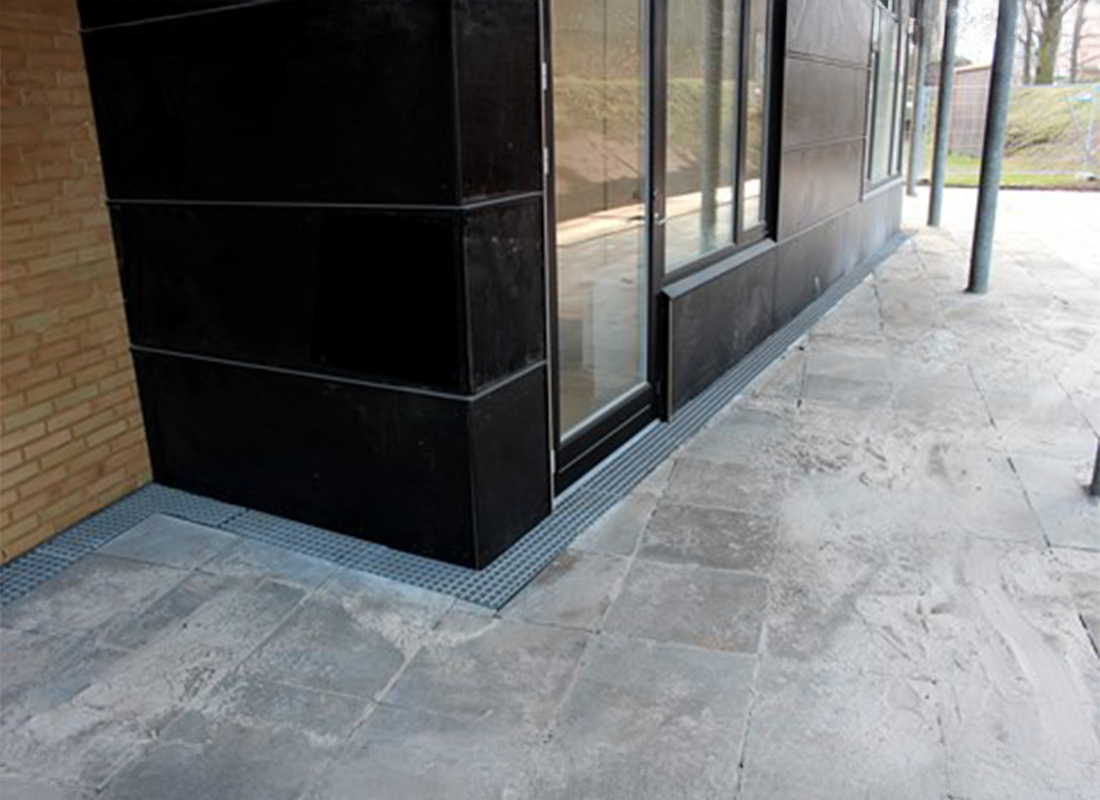

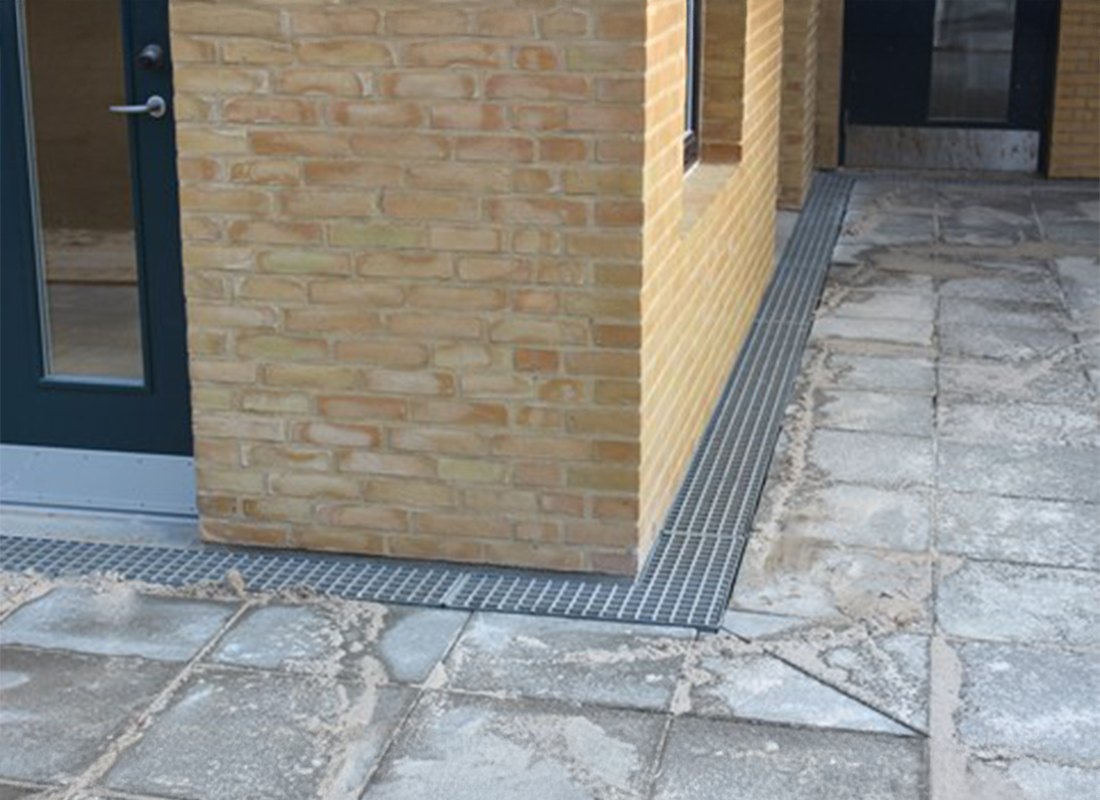

Item no.: N/AOur Foundation Perimeter Drain Channels provide reliable protection against rainwater, safeguarding foundations from moisture-related damage while supporting healthy ventilation. By promoting the circulation of dehumidified air, they help minimize dampness and extend the structural integrity of buildings.

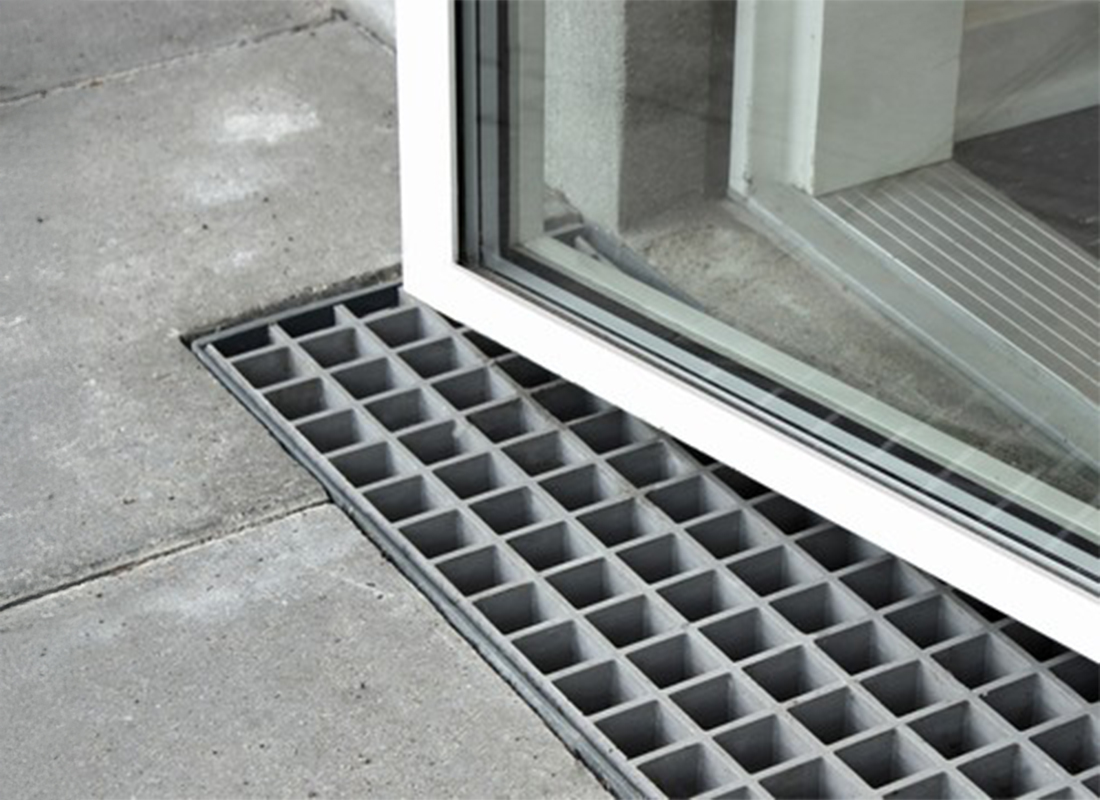

Fully compliant with building regulations, the channels also support level access through entrances, ensuring both accessibility and adherence to modern construction standards.

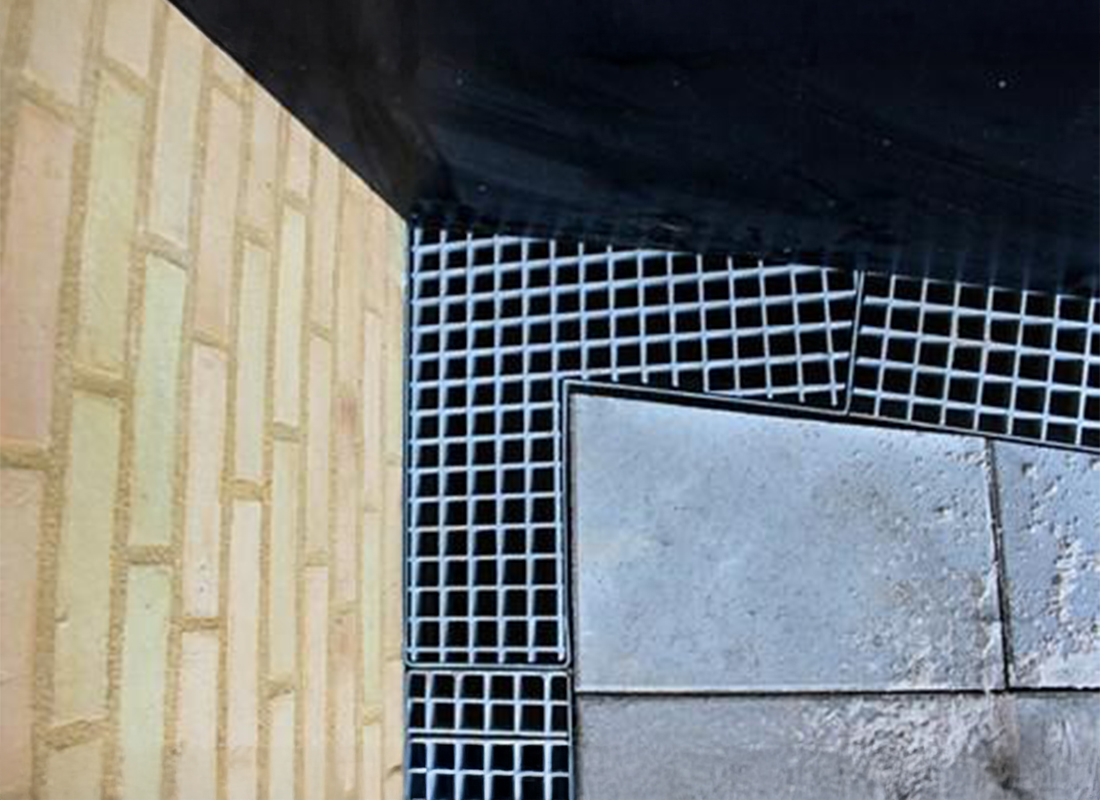

To simplify installation, we offer prefabricated trench drain solutions with customer-adapted corner options. Each corner piece is manufactured with fully molded ends, eliminating the need for manual adjustments and reducing material waste. This efficient design streamlines the process, saving both time and resources on site.
Made from durable composite material (fiberglass), our drain channels are corrosion-free, chemically resistant, and virtually maintenance-free. With these properties, they deliver long-lasting performance and a dependable solution for diverse environmental conditions.
- Quick and easy installation.
- Constructed from durable fiber-reinforced composite material that is resistant to rust and chemical corrosion.
- Optimal ventilation design with air channels, wind tunnels, and ventilation holes.
- Smooth surfaces for effortless cleaning and removal of debris like sand and leaves.
- Available with a variety of composite or steel grates.
- Simple on-site adjustment without the need for additional treatment, as the composite material is corrosion-resistant.
Design
- Double-sided construction featuring fully molded ends for effortless mounting.
- Designed with ventilation holes and a ventilation channel/wind tunnel to ensure optimal airflow and keep the plinth dry.
- Solid bottom that efficiently directs rainwater towards the drain.
Sizes and Specifications
| Length | Width | Height |
|---|---|---|
| 6000 mm | 100 mm | 190 mm |
| 6000 mm | 200 mm | 190 mm |
| 6000 mm | 250 mm | 190 mm |
| 6000 mm | 300 mm | 190 mm |
| 6000 mm | 350 mm | 190 mm |
| 6000 mm | 400 mm | 190 mm |
| 6000 mm | 450 mm | 190 mm |
Options
- Available in customer-specific dimensions upon delivery.
- Includes childproofing measures for the grate.
- Includes brackets for mounting outside the insulation.
- GAP-grate can be delivered in various colors.
Comes With
Comes with an FRP-grate in a grey colour or with a steel-grate.
Products
Item no.: N/A Foundation Perimeter Drain End Caps
Learn More
×
Foundation Perimeter Drain End Caps
Our Foundation perimeter drain drain end caps provide a secure and polished solution for effectively closing off the ends of your drainage system. These end caps are designed to seamlessly integrate with our trench drains, ensuring a cohesive and professional finish to your project.
Sizes and Specifications
| Width | Height |
|---|---|
| 100 mm | 190 mm |
| 200 mm | 190 mm |
| 250 mm | 190 mm |
| 300 mm | 190 mm |
| 350 mm | 190 mm |
| 400 mm | 190 mm |
| 450 mm | 190 mm |
Item no.: N/A Foundation Perimeter Drain Corners
Learn More
×
Foundation Perimeter Drain Corners

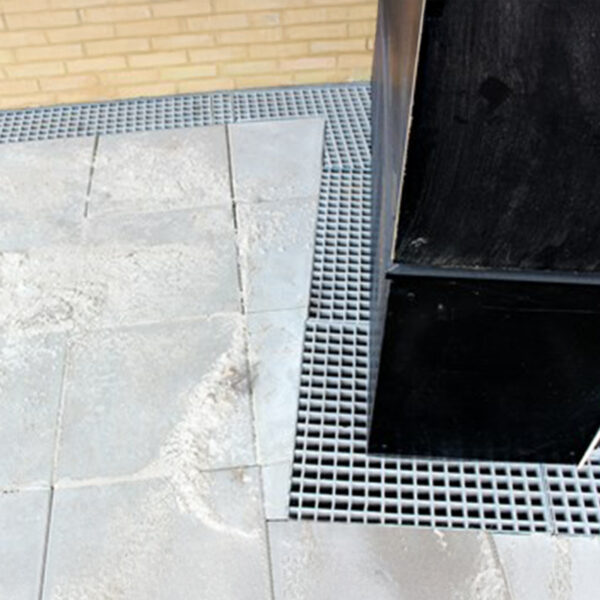

Our Foundation perimeter drain corners offer seamless solutions for creating efficient and effective drainage systems. These specially designed corners provide smooth transitions and directional changes, optimizing the flow of water within your trench drain system.
Crafted with precision, our trench drain corners ensure proper alignment and connectivity between straight sections of trench drains. This allows for uninterrupted water flow and helps to prevent any potential pooling or blockages.
Sizes and Specifications
| Dimensions | Width | Height | Angle |
|---|---|---|---|
| 500 x 500 mm | 100 mm | 190 mm | 45° |
| 500 x 500 mm | 100 mm | 190 mm | 90° |
| 500 x 500 mm | 200 mm | 190 mm | 45° |
| 500 x 500 mm | 200 mm | 190 mm | 90° |
| 500 x 500 mm | 250 mm | 190 mm | 45° |
| 500 x 500 mm | 250 mm | 190 mm | 90° |
| 500 x 500 mm | 300 mm | 190 mm | 45° |
| 500 x 500 mm | 300 mm | 190 mm | 90° |
| 750 x 750 mm | 350 mm | 190 mm | 45° |
| 750 x 750 mm | 350 mm | 190 mm | 90° |
| 1000 x 1000 mm | 400 mm | 190 mm | 45° |
| 1000 x 1000 mm | 400 mm | 190 mm | 90° |
| 1000 x 1000 mm | 450 mm | 190 mm | 45° |
| 1000 x 1000 mm | 450 mm | 190 mm | 90° |
Downloads
Brochure
Item no.: N/A Custom Foundation Perimeter Drain Corners
Learn More
×
Custom Foundation Perimeter Drain Corners
We specialize in providing custom perimeter drain bends that are specifically designed to meet your unique requirements. Our bespoke trench drain bends are expertly crafted to ensure seamless integration and optimal functionality within your drainage system.
Sizes and Specifications
| Dimensions | Width | Height |
|---|---|---|
| 500 x 500 mm | 200 mm | 190 mm |
| 500 x 500 mm | 250 mm | 190 mm |
| 500 x 500 mm | 300 mm | 190 mm |
| 750 x 750 mm | 350 mm | 190 mm |
| 1000 x 1000 mm | 400 mm | 190 mm |
| 1000 x 1000 mm | 450 mm | 190 mm |
Item no.: N/A Steel Grate for Perimeter Drains (Grid Pattern)
Learn More
×

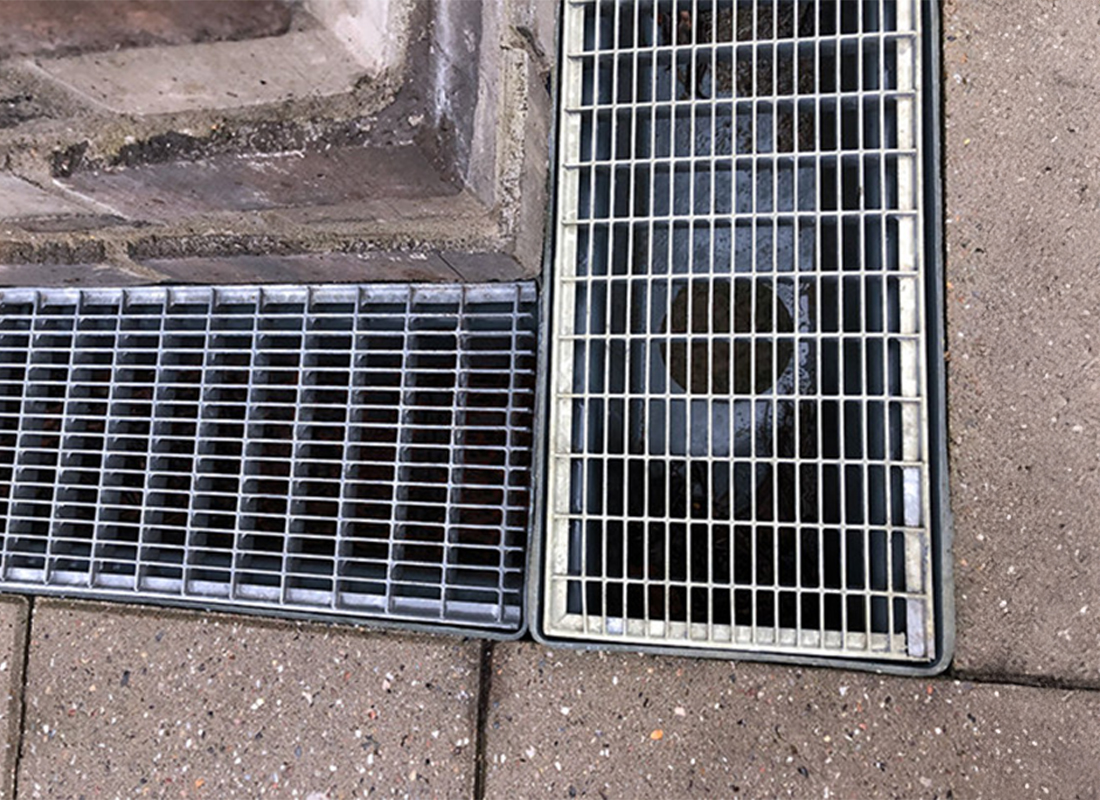

Steel Grate for Perimeter Drains (Grid Pattern)

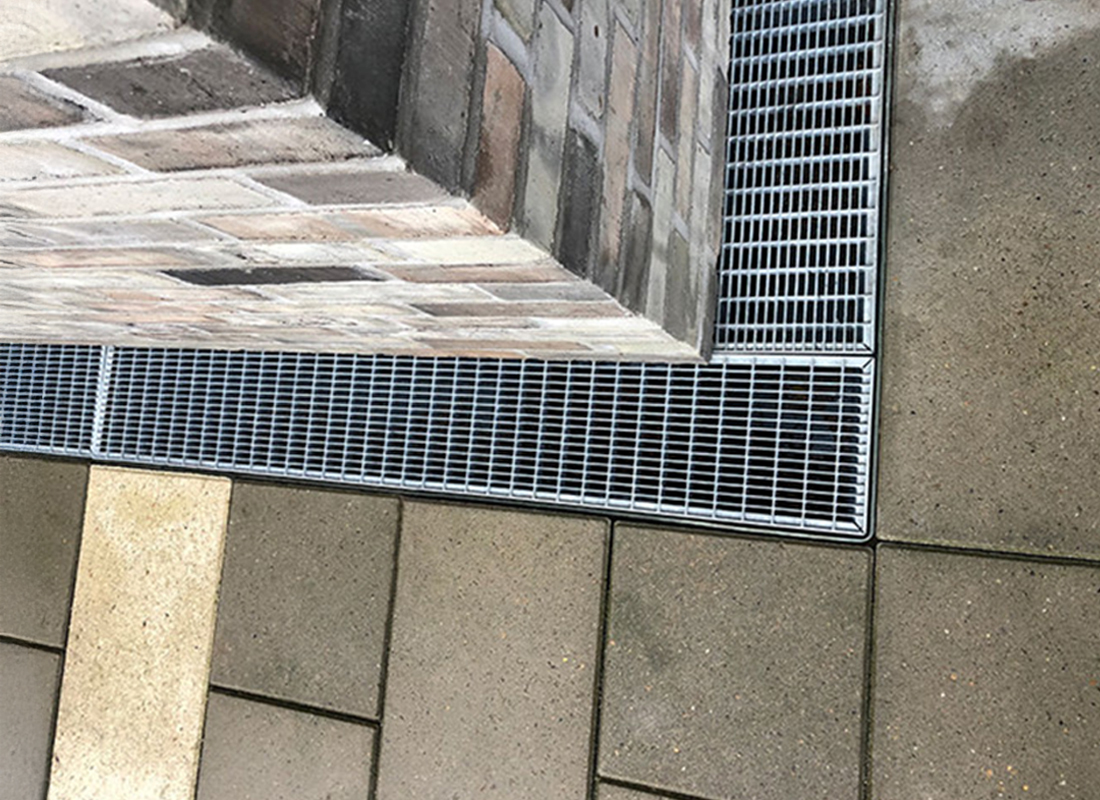

Our grid grates for perimeter drains are expertly manufactured using hot-dipped galvanized steel. This manufacturing process ensures exceptional durability, corrosion resistance, and longevity, making them ideal for a wide range of applications.
The hot-dipping galvanization process involves immersing the steel grates in a molten zinc bath, creating a protective coating that adheres to the surface. This galvanized coating provides superior corrosion resistance, even in harsh environments where exposure to moisture and chemicals is common.
To meet your specific needs, our grid grates are available in several sizes, allowing for customization according to the requirements of your perimeter drain system. Whether you require smaller sizes for pedestrian areas or larger sizes for heavy-duty applications, we have the options to accommodate your project.
Sizes and Specifications
| Grid size | Length | Width | Height |
|---|---|---|---|
| 11 x 11 mm | 1000 mm | 200 mm | 25 mm |
| 11 x 11 mm | 1000 mm | 300 mm | 25 mm |
| 22 x 22 mm | 1000 mm | 200 mm | 25 mm |
| 22 x 22 mm | 1000 mm | 300 mm | 25 mm |
| 33 x 33 mm | 1000 mm | 200 mm | 25 mm |
| 33 x 33 mm | 1000 mm | 300 mm | 25 mm |
Item no.: N/A Steel Grate for Perimeter Drains (Strip Pattern)
Learn More
×
Steel Grate for Perimeter Drains (Strip Pattern)
Our grid grates for perimeter drains are expertly manufactured using hot-dipped galvanized steel. This manufacturing process ensures exceptional durability, corrosion resistance, and longevity, making them ideal for a wide range of applications.
The hot-dipping galvanization process involves immersing the steel grates in a molten zinc bath, creating a protective coating that adheres to the surface. This galvanized coating provides superior corrosion resistance, even in harsh environments where exposure to moisture and chemicals is common.
To meet your specific needs, our grid grates are available in several sizes, allowing for customization according to the requirements of your perimeter drain system. Whether you require smaller sizes for pedestrian areas or larger sizes for heavy-duty applications, we have the options to accommodate your project.
Sizes and Specifications
| Grid size | Length | Width | Height |
|---|---|---|---|
| 11 x 33 mm | 1000 mm | 200 mm | 25 mm |
| 11 x 33 mm | 1000 mm | 300 mm | 25 mm |
| 22 x 11 mm | 1000 mm | 200 mm | 25 mm |
| 22 x 11 mm | 1000 mm | 300 mm | 25 mm |
| 33 x 11 mm | 1000 mm | 200 mm | 25 mm |
| 33 x 11 mm | 1000 mm | 300 mm | 25 mm |
Item no.: N/A Corten Steel Grates for Perimeter Drains
Learn More
×
Corten Steel Grates for Perimeter Drains
Our Corten steel grates for perimeter drains offer a robust and customizable solution for efficient water drainage. Constructed from high-quality Corten steel, these grates are designed to withstand challenging environmental conditions and provide long-lasting performance.
These grates are available in multiple mesh sizes, measured from center rib to center rib, including 33 x 33 mm and 11 x 33 mm. Both options feature a height of 20 mm, ensuring effective water flow and debris management within the perimeter drain system.
For added convenience and flexibility, our Corten steel grates can be customized to meet the specific dimensions and requirements of your project. We understand that each project is unique, and we are committed to delivering grates that perfectly fit your specifications.
With their distinctive weathered appearance, Corten steel grates add an aesthetic appeal to your perimeter drain system while providing exceptional durability. The natural corrosion resistance of Corten steel eliminates the need for additional coatings, ensuring maintenance-free performance over time.
Item no.: N/A Grate Assembly Fittings
Learn More
×
Grate Assembly Fittings
Grate Assembly Fittings: Ensuring Secure and Stable Grate Placement

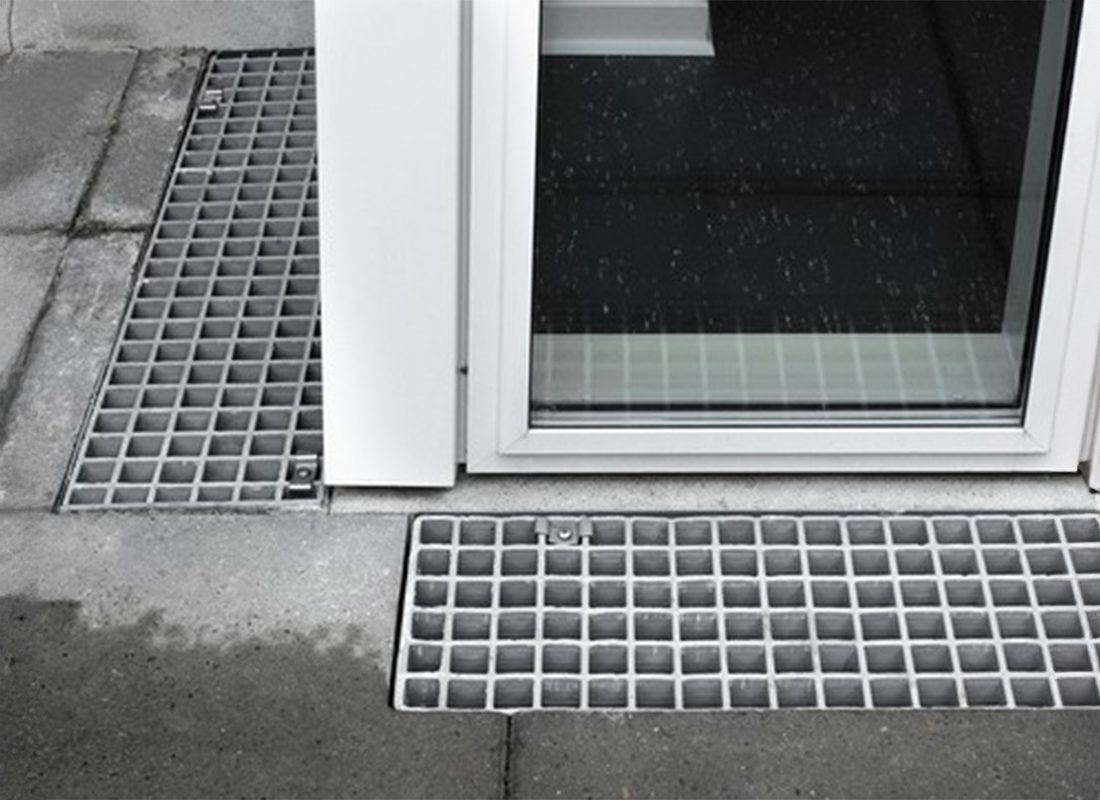

Our grate assembly fittings are specifically designed to securely fasten the grates, preventing any shifting or movement between them. These fittings play a vital role in maintaining stability and ensuring a secure aisle area within your trench drain system.
By utilizing our grate assembly fittings, you can rest assured that the grates will remain firmly in place, even under heavy loads or foot traffic. This stability not only enhances the overall functionality of the trench drain system but also contributes to a safer environment for pedestrians and vehicles.
Our fittings are engineered for easy installation and provide a reliable solution for connecting and securing the grates. They are designed to withstand the demands of various applications, providing long-lasting performance and durability.
