Airtight Grain Silos

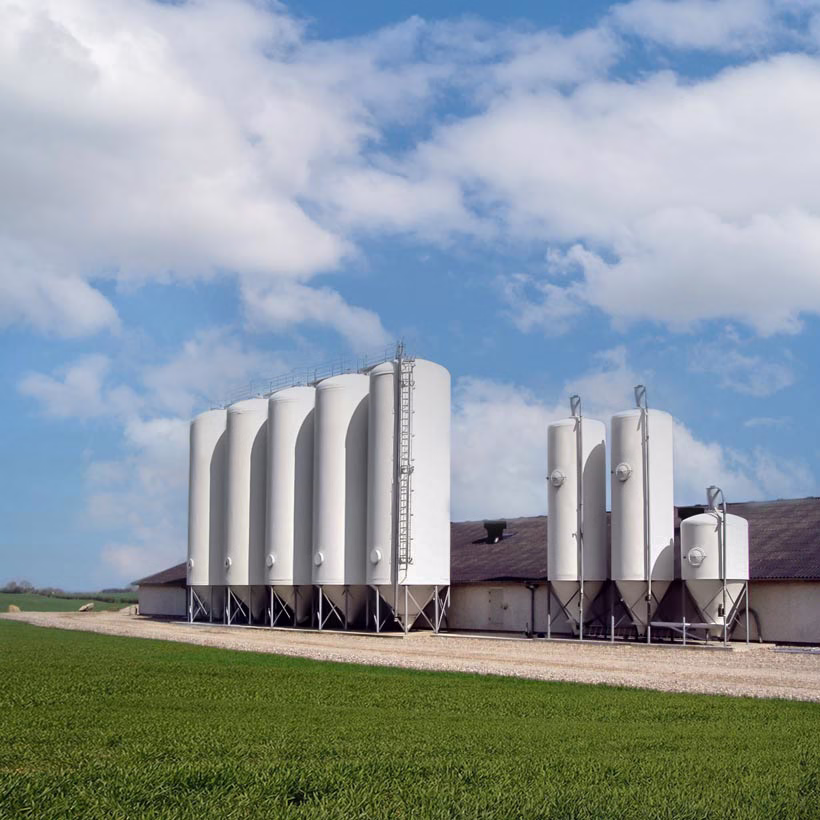

Item no.: N/AAirtight Grain Silos – Custom Solutions for Optimal Storage!
Our airtight grain silos can be fully customized to your requirements, including filling and emptying systems, dimensions, connections with other equipment, and color options.
Designed to provide the best conditions for storing grains, airtight silos preserve quality by reducing germination and eliminating the need for additional drying, making storage more cost-effective. The airtight design also minimizes pest risk by removing atmospheric oxygen.
Made from fiberglass-reinforced composite material with smooth inner surfaces, these silos allow easy cleaning and ensure optimal flow during grain discharge.
With decades of expertise in composite materials, we deliver durable, high-quality silos that protect your grain, optimize storage efficiency, and serve as a sustainable investment for the future.
Airtight design – fully moulded construction ensures an airtight silo and protects grain from atmospheric oxygen.
Moisture tolerance – grain with up to 22% moisture content can be filled directly into the silo.
Cost savings – no drying costs and no extra transportation expenses.
Earlier harvest – reduces waste by allowing grain to be harvested 2–3 days earlier.
Improved feed quality – fresh smell and less dust increase livestock appetite.
Better straw quality – achieved through earlier harvesting.
Nutrient retention – maximizes the nutritional value of the grain.
Pest protection – minimizes the risk of pests by eliminating atmospheric oxygen.
Comes With
- Steel stand with 6-8 legs.
- Pressure relief valve.
- Supply pipe.
- Ladder, walkway and pipe connectors.
Design
- Density: 700 kg/m3, depends on grain type as well as humidity.
- Material: fiberglass-reinforced polyester and galvanized steel.
- Operating temperature up to 45˚ C.
Sizes and Specifications
| Variety | Content | Conveyor | Diameter | Stand height | Silo Top | Total height |
|---|---|---|---|---|---|---|
| KG100/1 | 70 t | 10° / 45° | 3350 mm | 2000 mm | 13500 mm | 14500 mm |
| KG100/2 | 70 t | 10° / 45° | 3350 mm | 2000 mm | 13500 mm | 14500 mm |
| KG143/1 | 100 t | 10° / 45° | 4000 mm | 2295 mm | 13500 mm | 14500 mm |
| KG143/2 | 100 t | 10° / 45° | 4000 mm | 2295 mm | 13500 mm | 14500 mm |
| KG169/1 | 120 t | 10° / 45° | 4000 mm | 2295 mm | 15000 mm | 16000 mm |
| KG169/2 | 120 t | 10° / 45° | 4000 mm | 2295 mm | 15000 mm | 16000 mm |
| KG210/1 | 150 t | 10° / 45° | 4500 mm | 2565 mm | 16000 mm | 17000 mm |
| KG210/2 | 150 t | 10° / 45° | 4500 mm | 2565 mm | 16000 mm | 17000 mm |
Standard colour – white or green. Custom colors are available from the RAL catalogue for an additional fee.
Options
- 70º full-flow bottom socket with or without hand shutter.
- Level indicator for easy monitoring.
- Quick coupling according to Danish standards.
- Customizable colours available from the RAL catalogue.
Airtight Grain Silos - Brochure

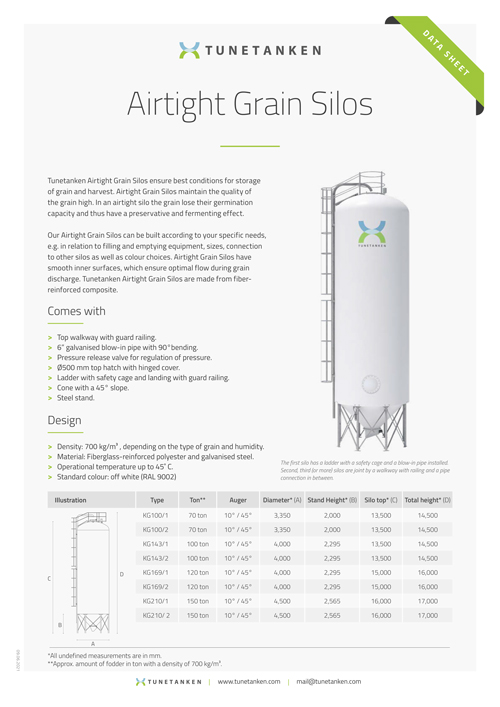

Airtight Grain Silos - Data Sheet
