Whey Tanks

Item no.: N/A

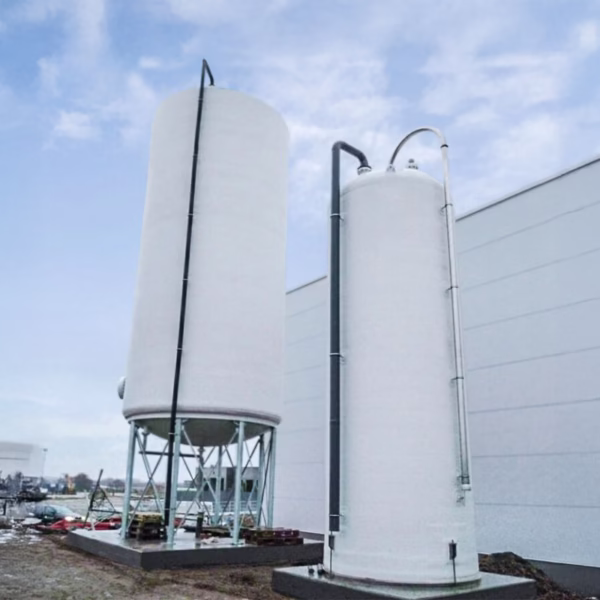

Our Whey Tanks feature a fully molded design made from fiber-reinforced composite material, providing safe and reliable storage for whey. The composite construction ensures excellent resistance to aggressive liquids, corrosion, and environmental factors, offering long-lasting durability.

These tanks require minimal maintenance while delivering a long service life, regardless of the stored content or installation conditions.

Each tank is custom-designed to meet your project requirements—whether in terms of size, dimensions, contents, connections, or appearance—ensuring a perfect fit for your facility.

With Scan-Plast Whey Tanks, you secure maximum value from your investment: durable, low-maintenance tanks built to last.

Categories: , , Tags: , ,

Benefits

  • Customizable size and geometry: Designed to fit your specific requirements.
  • Corrosion-resistant: Ensures long service life.
  • Insulated construction: Minimizes condensation for safe storage.
  • Hygienic design: Smooth surfaces with no internal seams allow easy cleaning.
  • Cost-effective outdoor installation: Can be placed on a foundation, reducing building costs.
  • Flexible setup: Simple installation allows easy relocation if needed.
  • Optimized logistics and operation: Complete solution designed for efficiency and convenience.

Design

  • Load: Pressure, vacuum, and movement tailored to the stored media and operating conditions.
  • Density: Depends on the stored media.
  • Temperature Range: –100 °C to +200 °C in operation.
  • Chemical Resistance: Customized according to the stored media.
  • Standard Colour: Transparent or grey-white.

Options

  • Leakage Monitoring: For safe handling of hazardous liquids.
  • Insulation: PUR-foam with sandwich construction for temperature control.
  • Custom colours: Available in different shades according to RAL catalogue.
  • Protective Skirt: Shields bottom outlet and electronic equipment.
  • Special Linings: Options in PP, PVDF, or ECTFE for enhanced chemical resistance or food-grade applications (FCM-approved materials).

Extra equipment

  • Level indicators and weighing equipment for precise monitoring.
  • Stirring equipment to prevent precipitation and ensure uniformity.
  • Supply pipe available in composite, galvanized, stainless, or acid-proof steel.
  • Heating options: warmth spiral or steam pipe to maintain constant temperature.
  • Rain collar to protect the bottom outlet and electronic equipment.
  • Flange studs: DN80 (adjustable according to operating conditions and needs).
  • Manhole: Ø800 with hinged ventilation cover and handle.
  • Inspection hatch: Ø500 with gasket and cover.
  • Level indicator stripe for continuous overview of consumption.
  • Ladder bracket for attaching a regular ladder.
