Vibration Motors
Item no.: N/AVibration Motors provide efficient discharge and consistent flow of powdered products in silos. Featuring high-quality bearings and a reliable grease retention system, they deliver durable performance with low noise levels. By minimizing material damage and accelerating emptying, these motors enhance operational efficiency.

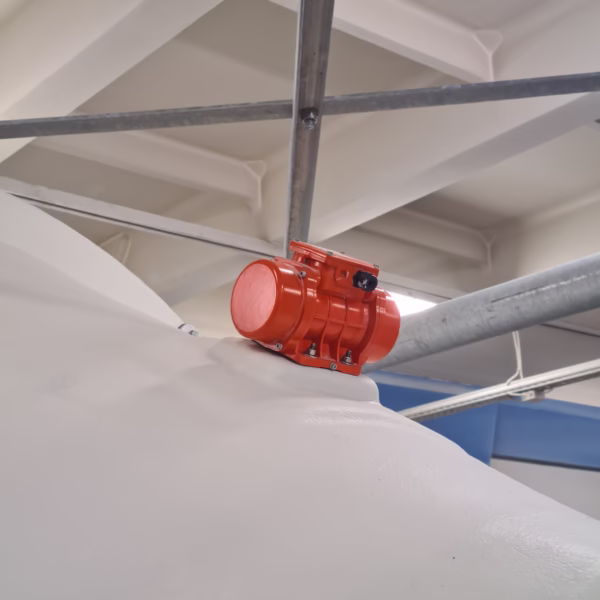

Mounted on specially designed fiber-reinforced composite brackets laminated to the outside of the silo cone, the vibrations are evenly transmitted over a large area for maximum effect. Installation can be performed without draining the silo or halting operations, and the design avoids perforating the silo with bolts, preventing leaks and water penetration.
- Ensures effective and consistent emptying of powdered products.
- Can be mounted at the factory or on an existing full silo.
- Transmits vibrations over a wide area for efficient discharge.
- Reduces risk of uneven media distribution, bridging, and pressure/vacuum damage.
- Robust vibration motor with multiple adjustment options.
Sizes and Specifications
| Model | Weight | Centrifugal force | Voltage frequency | Volt |
|---|---|---|---|---|
| TTMVE100 | 5 kg | Max. 98 kg | 50Hz | 230/400 |
| TTMVE200 | 7 kg | Max. 187 kg | 50Hz | 230/400 |
| TTMVE300 | 9 kg | Max. 321 kg | 50Hz | 230/400 |
| TTMVE400 | 11 kg | Max. 407 kg | 50Hz | 230/400 |
Options
Vibration Motors can be connected to a control box that is either being controlled manually or set to run at intervals when emptying is in process. The motor can also be connected to its own system.
Extra Equipement
Item no.: N/A Control box
Learn More
×
Control box
Control box for vibration motors in order to control the vibration motors manually or to set it to run in intervals once the discharge has started.
Item no.: N/A FRP Bracket
Learn More
×
FRP Bracket
FRP brackets are used to securely mount vibration motors onto silos. Our brackets come with adhesive for easy self-mounting.
Made from fiber-reinforced composite (FRP), these brackets offer exceptional strength and durability, while also being resistant to corrosion and extreme whether conditions, ensuring long-lasting performance in demanding environments.
