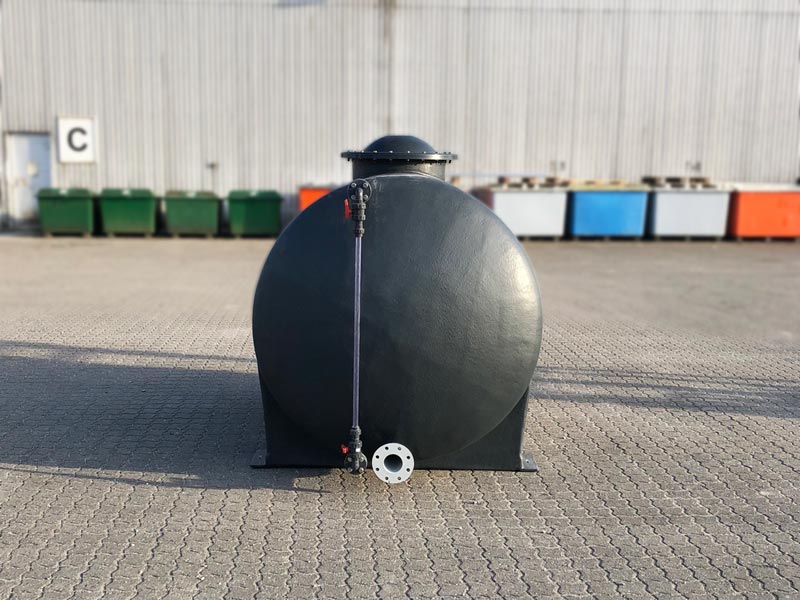

Saddle tanks
Item no.: N/AOur saddle tanks provide reliable and versatile storage solutions for a wide range of liquid media. Fully molded from fiber-reinforced composite, they offer exceptional durability and superior resistance to corrosion, chemicals, and climatic influences.
Ideal for aggressive media such as acids, bases, saline solutions, process water, and flocculants, these tanks are also approved for food contact under Danish Ministry of Environment and Food regulations and recognized by the Danish Smiley Identification system.
Integrated saddle supports ensure stable installation and proper alignment, while smooth inner surfaces allow complete emptying and easy cleaning, guaranteeing hygienic, long-lasting performance.
- Customizable size and geometry: Designed to meet specific requirements.
- Chemical-resistant: Withstands exposure to aggressive substances.
- Insulated construction: Minimizes condensation and protects contents.
- Hygienic and easy to clean: Smooth interior surfaces.
- Simple installation: Quick and easy mounting process.
- Wide selection: Various sizes and configurations available.
- Complete storage solution: Optimized for efficient logistics and operation.
- Stable support: Saddles ensure stability independently from the foundation.
Design
- Load: Pressure, vacuum, movement, and more are adjusted according to the stored media and operating conditions.
- Density: Depending on media.
- Temperature: +/- 100º/200º C.
- Chemical resistance adjusted according to media.
Sizes and Specifications
| Variety | Content | Diameter | Total length | Total height |
|---|---|---|---|---|
| ST10 | 10.000 l | 2.000 mm | 3.600 mm | 3.000 mm |
| ST20 | 20.000 l | 2.400 mm | 4.900 mm | 2.500 mm |
| ST30 | 30.000 l | 2.400 mm | 7.100 mm | 2.500 mm |
| ST40 | 40.000 l | 3.000 mm | 6.300 mm | 4.000 mm |
| ST60 | 60.000 l | 3.350 mm | 7.500 mm | 4.350 mm |
| ST80 | 80.000 l | 3.350 mm | 9.900 mm | 4.350 mm |
| ST100 | 100.000 l | 3.350 mm | 12.100 mm | 4.350 mm |
| ST125 | 125.000 l | 4.000 mm | 10.700 mm | 5.000 mm |
| ST150 | 150.000 l | 4.000 mm | 12.800 mm | 5.000 mm |
| ST175 | 175.000 l | 4.500 mm | 12.100 mm | 5.500 mm |
| ST200 | 200.000 l | 4.500 mm | 13.600 mm | 5.500 mm |
Standard colour – white or transparent. Custom colors are available from the RAL catalogue for an additional fee.
Comes With
- Personalized design.
- Fully moulded tank with saddles adjusted to size.
- Internal coating customized for the stored content.
Options
- Insulation available with PUR-foam and sandwich construction, or with mineral wool and glass fiber coating
- Optional rain collar for protection of bottom outlet and electronic equipment.
- Can be provided with lining with PP, PVDF, or ECTFE for chemical resistance.
- Food-grade linings available in compliance with FDA requirements.
- Customizable colors according to the full RAL color catalogue.
Extra Equipment
- Leakage monitoring equipment for dangerous fluids.
- Weighing and level measuring equipment.
- Stirring equipment to hinder precipitation.
- Filling pipes in composite material, galvanized stainless or acid -proof steel.
- Warmth spiral or steam pipe for heating/maintenance of constant temperature.
- Range of studs, implementations, manholes, extractions as needed.
- Ladder for an easy ascent to the manhole.
