Sand Pressure Filtration System

Item no.: N/A

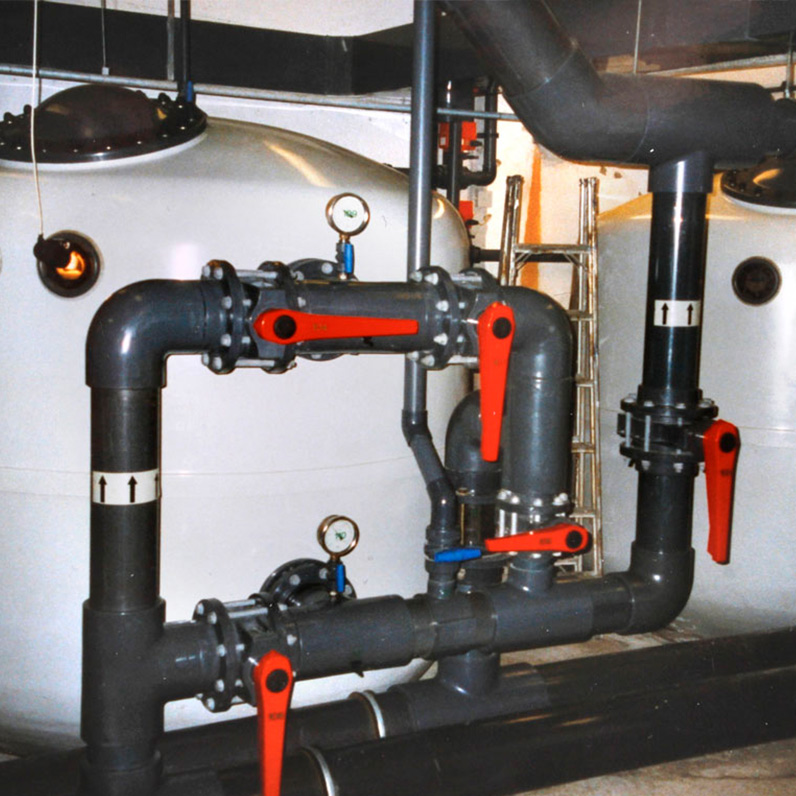

The Sand Pressure Filtration System is a high-performance solution for water purification, suitable for a variety of facilities including swimming pools, spas, water plants, fish farms, industrial facilities, and wastewater treatment plants.

These filtration systems are designed in accordance with the “Recommendations for Format of Pressure Sand Filters for Purification of Swimming Pool Water” published by the Danish Swimming Pool Technical Association (March 1981), as well as DIN 19605 and DIN 19643 standards, ensuring reliable and efficient operation.

Manufactured predominantly from fiber-reinforced composite materials, the Sand Pressure Filtration System provides excellent resistance to corrosion and chemicals. The careful selection of materials and production methods guarantees that the filters can withstand chemical substances commonly present in process water, including swimming pool water, while maintaining long-term durability.

To further ensure customer confidence, the system comes with a 5-year specific warranty covering hidden defects, offering additional assurance of reliability and performance.

The system combines a sleek exterior design with a rugged internal top coat, delivering both aesthetic appeal and enhanced durability. Its nozzle bottom configuration allows for easy removal and reassembly of the nozzles, facilitating convenient maintenance and operational efficiency.

Categories: , ,

Benefits

  • High-performance design: Delivers consistent and reliable operation even under demanding conditions.
  • Excellent chemical resistance: Ensures durability and longevity in challenging environments.
  • Guaranteed quality: Backed by a 5-year specific warranty for long-term peace of mind.
  • Standards-compliant construction: Manufactured according to DIN 19605 and DIN 19643 for proven safety and reliability.

Design

  • Sand/filter-medium height: 1000mm.
  • Operation pressure: 2 bar.
  • Testing pressure: 3 bar.
  • Operation temperature: max. 400 .

Sizes and Specifications

Diameter Type Total height
1000 mm KP 1000 1700 mm
1200 mm KP 1200 1700 mm
1400 mm KP 1400 1800 mm
1600 mm KP 1600 1800 mm
1800 mm KP 1800 1900 mm
2000 mm KP 2000 1900 mm
2200 mm KP 2200 2100 mm
2400 mm KP 2400 2100 mm
2600 mm KP 2600 2200 mm
2800 mm KP 2800 2200 mm
3000 mm KP 3000 2300 mm
3200 mm KP 3200 2300 mm
3400 mm KP 3400 2400 mm
3600 mm KP 3600 2400 mm
3800 mm KP 3800 2500 mm
4000 mm KP 4000 2500 mm

Comes With

A manhole and internal flange for diffuser system and drainage.

Options

  • Standard color: grey-white, with customization available according to the RAL color catalogue.
  • Sand filters can be customized for highly aggressive contamination (e.g., water treated with added ozonation).
  • Additional equipment can be manufactured and installed upon request.
