Outdoor Silos

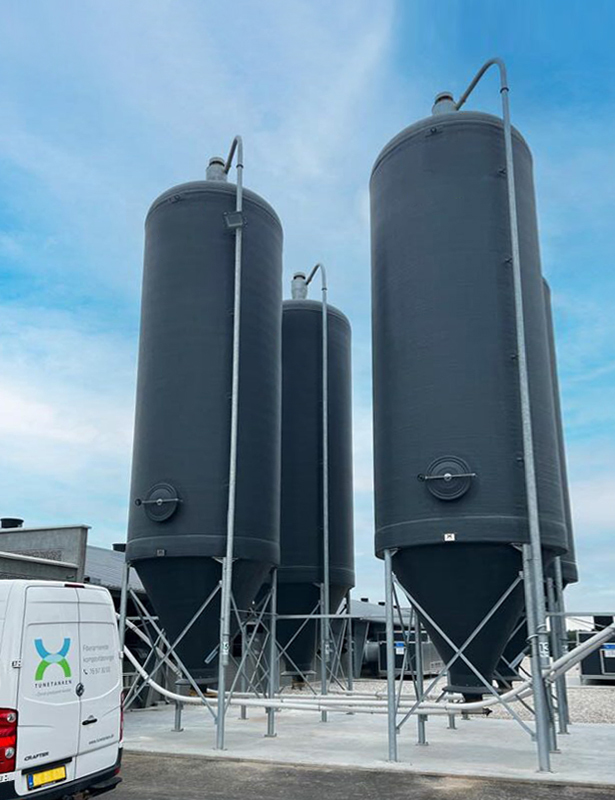

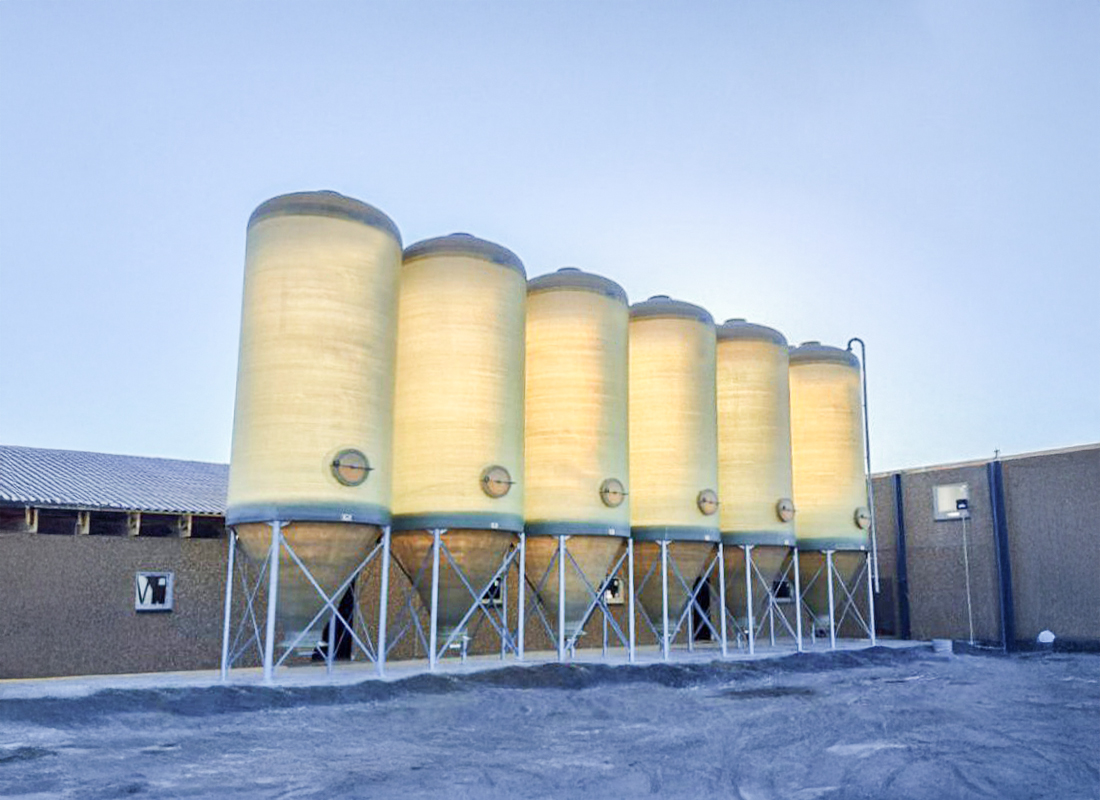

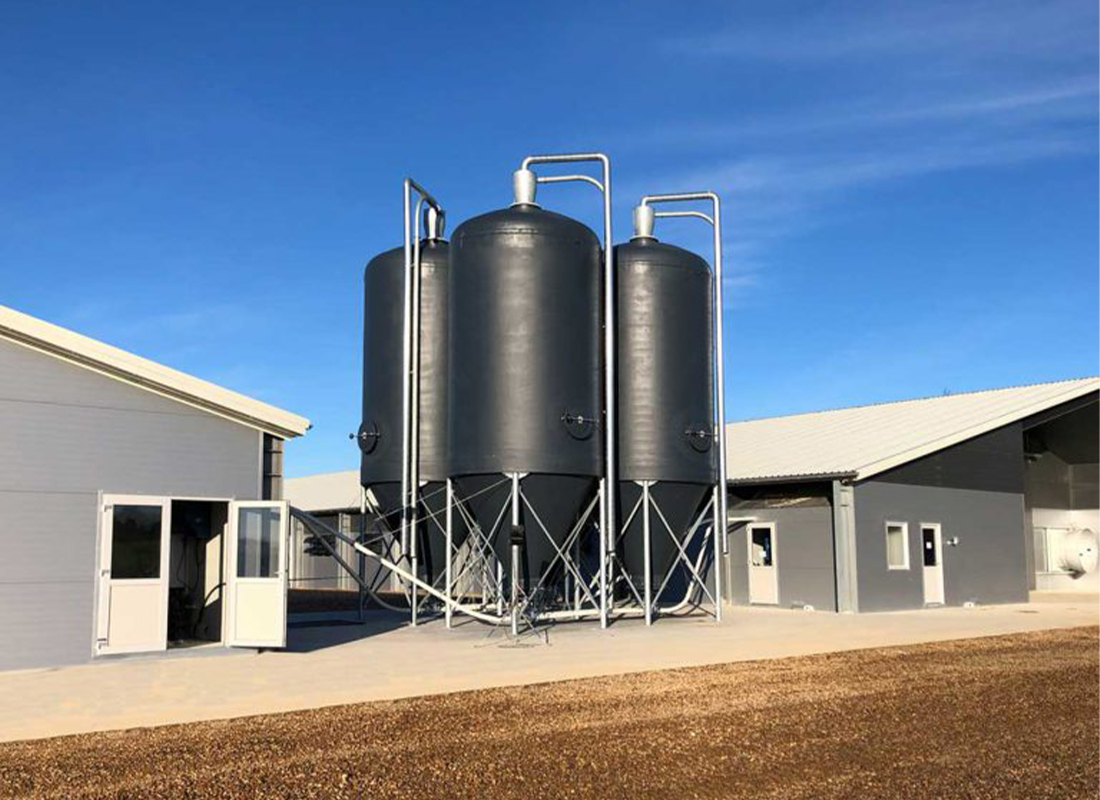

Item no.: N/AOur outdoor silos provide optimal conditions for the storage and handling of contents such as grain, pellets, and similar materials. They can be custom-made to match specific requirements according to your desired criteria.
The outdoor silos are made from a unique composite material (fiberglass) – these silos feature smooth internal surfaces and a fully monolithic design, reducing condensation and ensuring high hygiene standards to preserve the quality of stored contents. They are also built for durability and long-lasting performance.
Additional equipment can be added to suit your needs, including automatic feeding systems, screw conveyors, level indicator strips, and more.
With over 30 years of experience in manufacturing and working with composite materials, our outdoor silos are designed to meet the highest standards of quality, functionality, and reliability.
- Made from fiberglass-reinforced composite material with natural insulating properties.
- Fully molded design ensures a tight and secure seal.
- Robust, strong, and chemically resistant construction.
- Smooth surfaces for optimal emptying and easy cleaning.
Design
- Density: 0,65
- Made from composite material with unique properties.
- Robust galvanized steel mount.
Video
Sizes and Specifications
| Type | Volume | Content | Diameter | Total height | Free height | Number of legs |
|---|---|---|---|---|---|---|
| FC4,5 | 4,5 m³ | 2,9 t | 2400 mm | 4290 mm | 540/520 mm | 4 pcs. |
| FC6 | 6 m³ | 3,9 t | 2400 mm | 4600 mm | 540/520 mm | 4 pcs. |
| FC8 | 8 m³ | 5,2 t | 2400 mm | 5090 mm | 540/520 mm | 4 pcs. |
| FC10 | 10 m³ | 6,8 t | 2400 mm | 5600 mm | 540/520 mm | 4 pcs. |
| FC13 | 13 m³ | 8,4 t | 2400 mm | 6100 mm | 540/520 mm | 4 pcs. |
| FC16 | 16 m³ | 10,4 t | 2400 mm | 6760 mm | 540/520 mm | 4 pcs. |
| FC21 | 21 m³ | 13,7 t | 2400 mm | 7860 mm | 540/520 mm | 4 pcs. |
| FC26 | 26 m³ | 16,9 t | 2400 mm | 8970 mm | 540/520 mm | 4 pcs. |
| FC32 | 32 m³ | 20,8 t | 2400 mm | 10420 mm | 540/520 mm | 4 pcs. |
| FC40 | 40 m³ | 26 t | 2400 mm | 12065 mm | 540/520 mm | 4 pcs. |
| FC40 | 40 m³ | 26 t | 3000 mm | 9300 mm | 540/520 mm | 4 pcs. |
| FC50 | 50 m³ | 32,5 t | 3000 mm | 10750 mm | 540/520 mm | 4 pcs. |
| FC60 | 60 m³ | 39 t | 3000 mm | 12130 mm | 540/520 mm | 4 pcs. |
| FC70 | 70 m³ | 45,5 t | 3000 mm | 13540 mm | 540/520 mm | 4 pcs. |
| FC75 | 75 m³ | 48,8 t | 3000 mm | 14255 mm | 540/520 mm | 6 pcs |
| FC80 | 80 m³ | 52 t | 3350 mm | 12970 mm | 540/520 mm | 6 pcs |
| FC90 | 90 m³ | 58,5 t | 3350 mm | 14100 mm | 540/520 mm | 6 pcs |
| FC100 | 100 m³ | 65 t | 3350 mm | 15240 mm | 540/520 mm | 6 pcs |
| FC110 | 110 m³ | 71,5 t | 4000 mm | 13040 mm | 540/520 mm | 8 pcs. |
| FC120 | 120 m³ | 78 t | 4000 mm | 13830 mm | 540/520 mm | 8 pcs. |
| FC130 | 130 m³ | 84,5 t | 4000 mm | 14630 mm | 540/520 mm | 8 pcs. |
| FC140 | 140 m³ | 91 t | 4000 mm | 15430 mm | 540/520 mm | 8 pcs. |
| FC150 | 150 m³ | 97,5 t | 4000 mm | 16230 mm | 540/520 mm | 8 pcs. |
Standard colour – white or transparent. Custom colors are available from the RAL catalogue for an additional fee.
Comes With
- Cyclone with vent pipe.
- Inlet pipe and a pipe bend with a large radius.
- Rain collar over the bottom outlet.
- Standard topcoat: Transparent or grey-white.
Options
- Available with different bottom outlets.
- Customizable color according to the RAL color chart.
- 5-inch or 4-inch air supply system. (See downloads).
- Full-Flow bottom outlet with or without mechanical shutter.
- Level indicator stripe.
Miscellaneous
Item no.: 2001 8010 0007 Bird net for cyclone
Item no.: 2001 8010 0008 Cyclone Mounting Kit
Item no.: 2001 8010 0009 Rain collar, legacy model
Item no.: N/A Rain collar, new model
Item no.: 2001 8010 0000 Standard cyclone 4”
Item no.: 2001 8010 0001 Standard cyclone 5”
Item no.: 2001 8010 0002 Gasket for cyclone
Item no.: 2001 8010 0003 Sleeve for cyclone Ø 200 mm
Item no.: 2001 8010 0004 Reducer Ø 200 – Ø 160 mm
Item no.: 2001 8010 0005 Vent cap Ø 200 mm
Item no.: N/A Bolt Products
Item no.: N/A Anchoring bolts
Learn More
×
Anchoring bolts
Anchoring bolts are available in different sizes.
| Variety | Application |
|---|---|
| M16 x 150 mm | |
| M16 x 175 mm | Silos 4,5m³-120m³ |
| M20 x 80 mm | |
| M20 x 150 mm | Silos 130m³ |
Supply System
Item no.: N/A Supply pipe bends with large radius
Learn More
×
Supply pipe bends with large radius
Supply pipe bends with a large radius. R = 625 for silos from the year 2000 and onwards.
- R = 625
- For silos from the year 2000 and onwards
Item no.: N/A Supply pipe bends 0,73 m
Learn More
×
Supply pipe bends 0,73 m
Supply pipe bends 0,73 m.
Item no.: N/A Spacers
Item no.: N/A Mounting brackets for supply pipes
Learn More
×
Mounting brackets for supply pipes
Mounting brackets for supply pipes excl. mounting kit.
Item no.: N/A Gaskets for supply pipes
Learn More
×
Gaskets for supply pipes
Gaskets for supply pipes.
Item no.: N/A Supply pipes 4″
Learn More
×
Supply pipes 4″
Supply pipes 4″ for outdoor silos.
| Variety | Length |
|---|---|
| FC4,5 | 1000 mm |
| FC6 | 1000 mm + 500 mm |
| FC8 | 1000 mm + 1000 mm |
| FC10 | 2400 mm |
| FC13 | 2750 mm |
| FC16 | 3410 mm |
| FC21 | 4510 mm |
| FC26 | 5620 mm |
| FC32 | 7070 mm |
| FC40 | 6350 mm |
| FC45 | 7070 mm |
| FC50 | 7765 mm |
| FC60 | 9180 mm |
| FC70 | 7070 mm + 3410 mm |
| FC75 | 5620 mm (2 pcs.) |
| FC80 | 7070 mm + 2750 mm |
| FC90 | 5620 mm + 5620 mm |
| FC100 | 6350 mm + 2750 mm |
| FC110 | 6350 mm + 4008 mm |
| FC120 | 7070 mm + 4008 mm |
| FC130 | 7070 mm + 4510 mm |
| FC140 | 7070 mm + 5620 mm |
| FC150 | 7070 mm + 6350 mm |
Item no.: N/A Supply pipes 5″
Learn More
×
Supply pipes 5″
Supply pipes 5″ for outdoor silos.
| Variety | Length |
|---|---|
| FC4,5 | 1000 mm |
| FC6 | 1000 mm + 500 mm |
| FC8 | 1000 mm + 1000 mm |
| FC10 | 2400 mm |
| FC13 | 2750 mm |
| FC16 | 3410 mm |
| FC21 | 4510 mm |
| FC26 | 5620 mm |
| FC32 | 7070 mm |
| FC40 | 6350 mm |
| FC45 | 7700 mm |
| FC50 | 7765 mm |
| FC60 | 9180 mm |
Item no.: N/A Supply pipes with flanges
Learn More
×
Supply pipes with flanges
Supply pipes 2 pcs. flanges are available in different lengths for both 4″ and 5″.
| Variety | Length |
|---|---|
| 4" | 0,3 m |
| 4" | 0,5 m |
| 5" | 0,3 m |
| 5" | 0,5 m |
Item no.: N/A Pipe clamps
Learn More
×
Pipe clamps
Pipe clamps are available in different sizes. The pipe clamps come without spacers.
| Diameter | Application |
|---|---|
| 89 mm | Leg, Ø2400 mm |
| 102 mm | Supply pipe 4" |
| 114 mm | Leg, Ø3000 mm |
| 127 mm | Supply pipe 5" |
| 159 mm | Ventilation pipe |
Item no.: N/A Couplings
Learn More
×
Couplings
Coupling for supply are available in different types e.g. Danish coupling, Swedish coupling and German coupling.
- Threaded Coupling 3", reduction from 4"
- Threaded Coupling 4"
- Danish Coupling 4" M
- Danish Coupling 4" M, reduction from 5"
- Danish Coupling 5" M
- Danish Coupling 4" F
- Danish Coupling 4" F, reduction from 5"
- Danish Coupling cap 4" F,
- Swedish Perrot Coupling 4"
Ventilation System
Item no.: N/A Ventilation pipe bend 90°
Item no.: N/A Spacers
Item no.: N/A Bolt Products
Item no.: N/A Ventilation pipes – set
Learn More
×
Ventilation pipes – set
Ventilation pipes Ø160 – sets are complete with bends.
| Variety | Set contains |
|---|---|
| FC4,5 | 1 pc. reducer 200/160, 2 pcs. 90° bends, 1 pc. pipe L: 1060 mm, 1 pc. pipe L: 2465 mm and 2 brackets |
| FC6 | 1 pc. reducer 200/160, 2 pcs. 90° bends, 1 pc. pipe L: 1060 mm, 1 pc. pipe L: 2775 mm and 2 brackets |
| FC8 | 1 pc. reducer 200/160, 2 pcs. 90° bends, 1 pc. pipe L: 1060 mm, 1 pc. pipe L: 3265 mm and 2 pcs. brackets |
| FC10 | 1 pc. reducer 200/160, 2 pcs. 90° bends, 1 pc. pipe L: 1060 mm, 1 pc. pipe L: 3775 mm and 2 brackets |
| FC13 | 1 pc. reducer 200/160, 2 pcs. 90° bends, 1 pc. pipe L: 1060 mm, 1 pc. pipe L: 4275 mm and 2 brackets |
| FC16 | 1 pc. reducer 200/160, 2 pcs. 90° bends, 1 pc. pipe L: 1060 mm, 1 pc. pipe L: 5035 mm and 2 brackets |
| FC21 | 1 pc. reducer 200/160, 2 pcs. 90° bends, 1 pc. pipe 1060 mm, 1 pc. pipe L: 6000 mm and 3 pcs. brackets |
| FC26 | 1 pc. reducer 200/160, 2 pcs. 90° bends, 1 pc. pipe L: 1060 mm, 1 pc. pipe L: 7100 mm and 3 pcs. brackets |
| FC32 | 1 pc. reducer 200/160, 2 pcs. 90° bends, 1 pc. pipe L: 1060 mm, 1 pc. pipe L: 5035 mm and 2 brackets |
| FC40 | 1 pc. reducer 200/160, 2 pcs. 90° bends, 1 pc. pipe L: 1360 mm, 1 pc. pipe L: 7600 mm and 3 pcs. brackets |
| FC45 | 1 pc. 200/160 reducer, 2 pcs. 90° bends, 1 pc. pipe L: 1360 mm, 1 pc. pipe L: 8500 mm and 3 brackets |
| FC50 | 1 pc. reducer 200/160, 2 pcs. 90° bends, 1 pc. pipe L: 1360 mm, 2 pcs. pipes L: 5900 mm and 3100 mm and 3 pcs. brackets |
| FC60 | 1 pc. reducer 200/160, 2 pcs. 90° bends, 1 pc. pipe L: 1360 mm, 2 pcs. pipes L: 6000 and 4400 mm and 3 pcs. brackets |
| FC70 | 1 pc. reducer 200/160, 2 pcs. 90° bends, 1 pc. pipe L: 1360 mm, 1 pc. pipe L: 6200 and 5485 mm and 5 pcs. brackets |
| FC75 | 1 pc. reducer 200/160, 2 pcs. 90° bends, 1 pc. pipe L: 1360 mm, 2 pcs. pipes 6200 and 6200 and 3 pcs. brackets |
| FC80 | 1 pc. reducer 200/160, 2 pcs. 90° bends, 1 pc. pipe L: 1535 mm, 1 pc. pipe L: 6200 + 4315 mm and 5 brackets |
| FC90 | 1 pc. reducer 200/160, 2 pcs. 90° bends, 1 pc. pipe L: 1535 mm, 2 pcs. pipe L: 6200 mm, 1 pc. pipe L: 2500 mm and 6 brackets |
| FC100 | 1 pc. reducer 200/160, 2 pcs. 90° bends, 1 pc. pipe L: 1535 mm, 2 pcs. pipe L: 6200 + 1 pc. 3560 mm and 6 pcs. brackets |
| FC110 | 1 pc. reducer 200/160, 2 pcs. 90° bends, 1 pc. pipe L: 1860 mm, 1 pc. pipe L: 6200 + 4985 mm and 6 pcs. brackets |
| FC120 | 1 pc. reducer 200/160, 2 pcs. 90° bends, 1 pc. pipe L: 1860 mm, 1 pc. L: 6200 + 5775 mm and 6 pcs. brackets |
| FC130 | 1 pc. reducer 200/160, 2 pcs. 90° bends, 1 pc. pipe L: 1800 mm, 1 pc. pipe L: 2 x 6200 + 375 and 6 brackets |
| FC140 | 1 pc. reducer 200/160, 2 pcs. 90° bends, 1 pc. pipe L: 1860 mm, 1 pc. pipe L: 2 x 6200 + 1175 mm and 6 pcs. brackets |
| FC150 | 1 pc. reducer 200/160, 2 pcs. 90° bends, 1 pc. pipe L: 1860 mm, 1 pc. pipe L: 2 x 6200 + 1975 mm and 6 pcs. brackets |
Item no.: N/A Ventilation pipes
Learn More
×
Ventilation pipes
Ventilation pipes are available in different lengths.
| Length |
|---|
| 1360 mm |
| 1060 mm |
Item no.: N/A Pipe clamps
Learn More
×
Pipe clamps
Pipe clamps are available in different sizes. The pipe clamps come without spacers.
| Diameter | Application |
|---|---|
| 89 mm | Leg, Ø2400 mm |
| 102 mm | Supply pipe 4" |
| 114 mm | Leg, Ø3000 mm |
| 127 mm | Supply pipe 5" |
| 159 mm | Ventilation pipe |
Item no.: N/A Leg Extenders
Learn More
×
Leg Extenders
Leg extenders are available in different sizes.
| Length |
|---|
| 500 mm. per leg |
| 750 mm. per leg |
| 1000 mm. per leg |
Legs, cross-bracings, etc.
Item no.: N/A Legs
Learn More
×
Legs
Legs for silos are available in different sizes.
| Length |
|---|
| 2345 mm |
| 2880 mm |
Item no.: N/A Rubber bushings
Learn More
×
Rubber bushings
Rubber bushings for silos are available in different sizes.
| Length |
|---|
| 2345 mm |
| 2880 mm |
