Oil and petrol separators

Item no.: N/A

Oil and petrol separators are designed to efficiently separate oil, petrol, and solid particles from wastewater. These systems are essential in minimizing the presence of mineral oils in sewers and purification facilities, ensuring compliance with environmental standards. They are commonly used in service stations, car workshops, oil depots, and car washes.

The separation process operates on the principle of gravity and the different solubility properties of water, oil, and petrol. Since oil and petrol are insoluble in water, they naturally rise to the surface within the separator, allowing for their safe collection and disposal. This process is vital in preventing contamination of wastewater and protecting the surrounding environment.

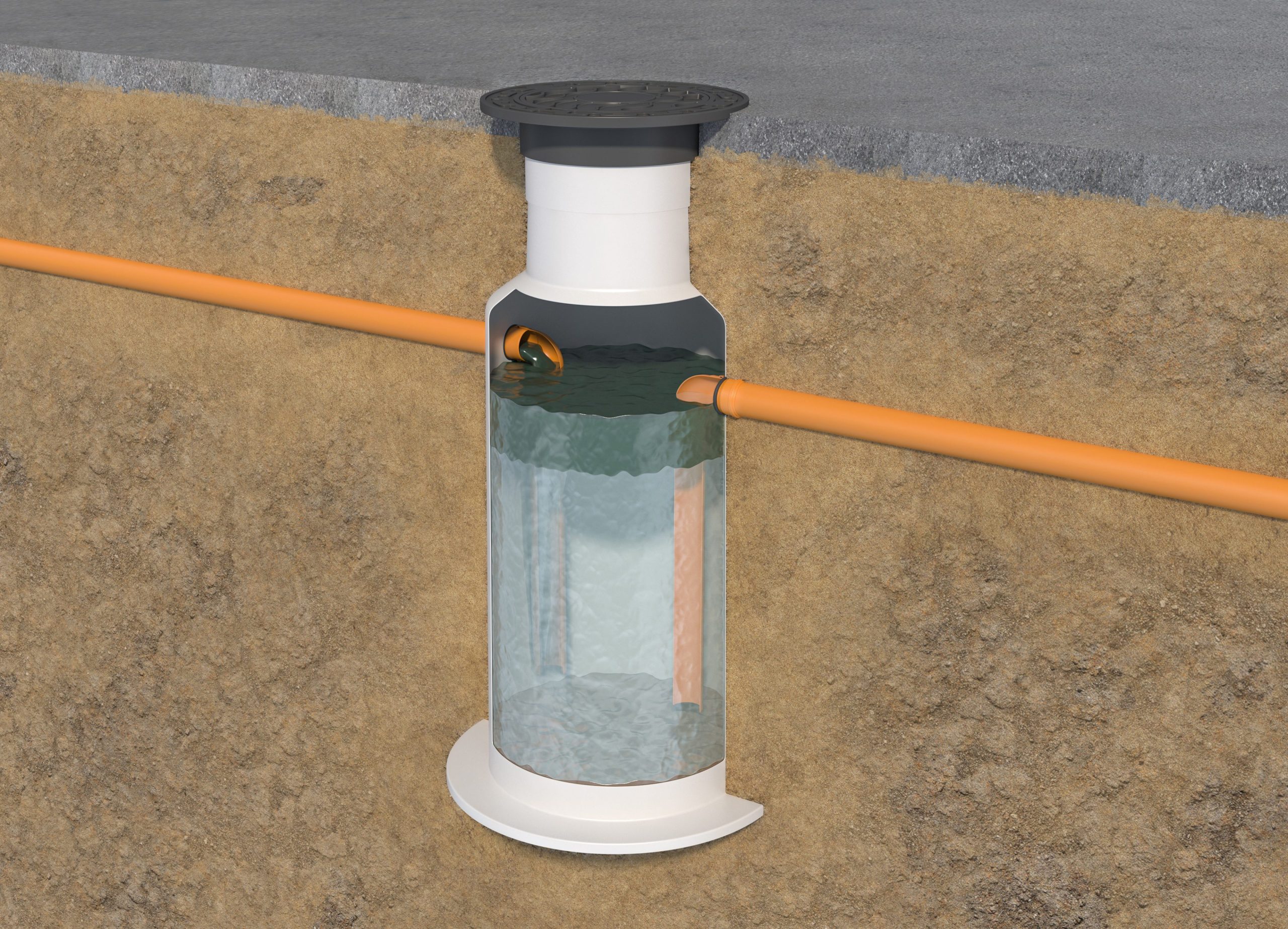

As contaminated wastewater enters the separator chamber, the flow velocity is reduced, enabling oil and petrol to float to the surface while heavier particles settle at the bottom. The resulting treated water is then discharged through the outlet into the sewage system, significantly improving wastewater quality.

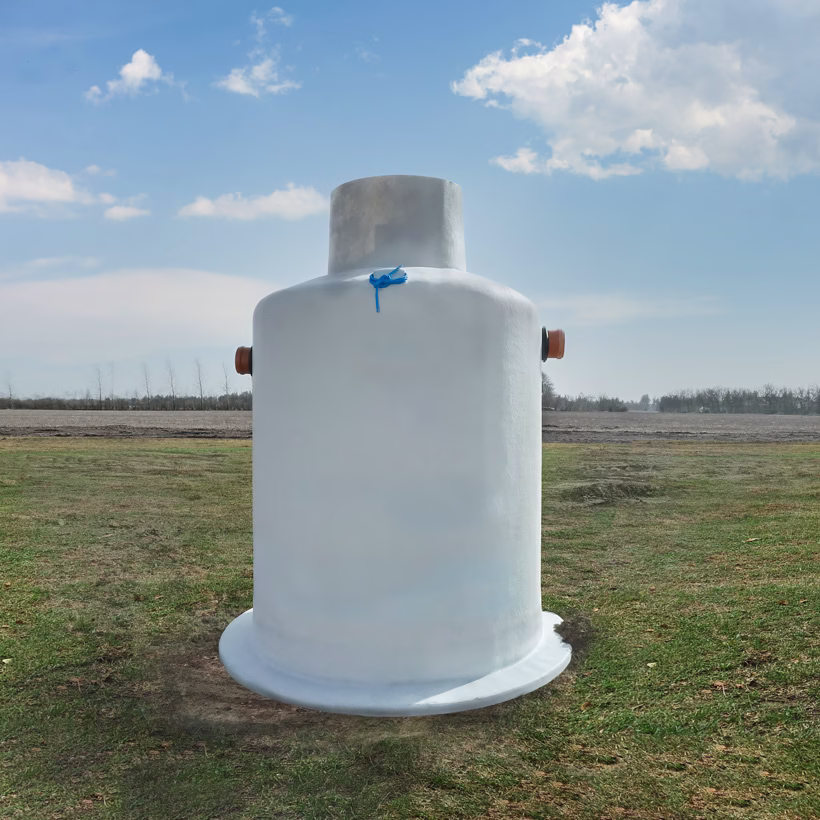

Our oil and petrol separators are manufactured from composite material, fiberglass — a lightweight yet durable material that ensures easy installation and long service life. This advanced material offers exceptional strength, chemical resistance, and corrosion protection, ensuring reliable performance even in demanding environments.

Category:

Benefits

  • Exceptional durability: Built to withstand wear and tear for long-lasting performance.
  • Superior resistance: Chemically and corrosion resistant, even in harsh environments.
  • Versatile solutions: Available in a wide range of options to meet diverse applications and requirements.

Design

  • Constructed in accordance with the European standard DS/EN 858-1.
  • CE approved.

Sizes and Specifications


Capacity

Diameter

Types

Height

Pipe attachment
1 l/sek. 750 mm SP-OU 1 1800 mm Ø110 mm
3 l/sek. 900 mm SP-OU 3 2140 mm Ø110 mm
6 l/sek. 1250 mm SP-OU 6 1940 mm Ø110 mm
8 l/sek. 1500 mm SP-OU 8 2040 mm Ø160 mm
10 l/sek. 1600 mm SP-OU 10 2200 mm Ø160 mm
12 l/sek. 1750 mm SP-OU 12 2190 mm Ø200 mm
15 l/sek. 2000 mm SP-OU 15 2190 mm Ø200 mm
20 l/sek. 2300 mm SP-OU 20 2240 mm Ø200 mm
24 l/sek. 2500 mm SP-OU 24 2240 mm Ø250 mm
30 l/sek. 2800 mm SP-OU 30 2900 mm Ø250 mm
35 l/sek. 3000 mm SP-OU 35 2800 mm Ø250 mm
48 l/sek. 3500 mm SP-OU 48 2800 mm Ø300 mm
62 l/sek. 4000 mm SP-OU 62 3000 mm Ø300 mm
79 l/sek. 4500 mm SP-OU 79 3000 mm Ø300 mm
100 l/sek. 5000 mm SP-OU 100 5600 mm Ø300 mm

Options

  • Customizable design: Available in tailored dimensions to meet specific project requirements.
  • Enhanced strength: Option for reinforcement to handle heavy traffic loads.
  • Reliable performance: Can be reinforced to resist high groundwater pressure for added stability.

Extra equipment

  • Discharge alarm.
  • Automatic floating gate.
  • Sample well.
  • Seal-proof cover.
  • Integrated sludge trap.
  • Integrated swamp pump.
  • Sludge trap well.
