Manure Transfer Pipes

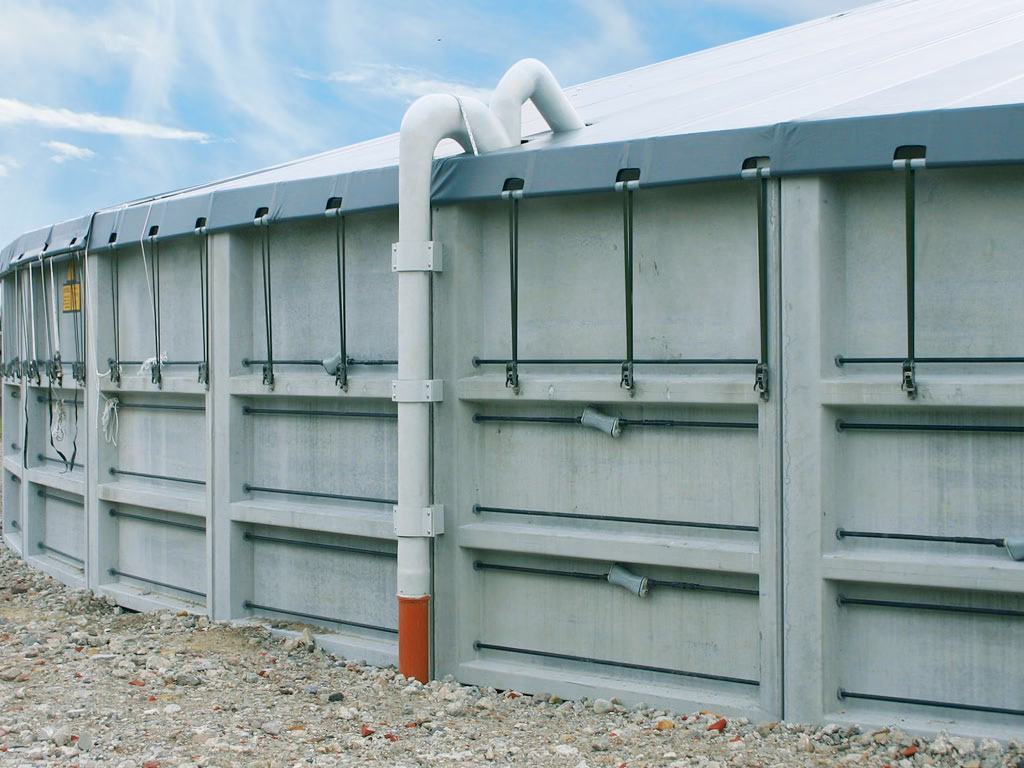

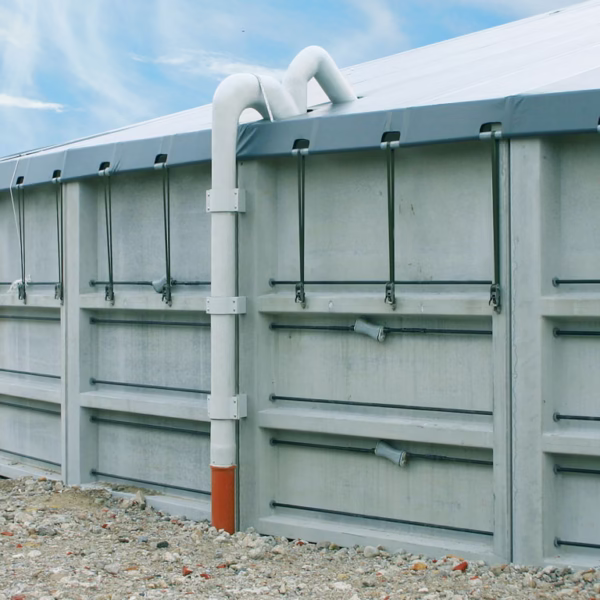

Item no.: N/AOur Manure Transfer Pipes with ventilation are specially designed to ensure efficient and reliable manure pumping.
These pipes feature a unique design that slows down the flow of manure at the 180° bend, after which the pipe’s dimension and volume increase significantly. This provides more space for the manure at the slowing point, optimizing flow and reducing the risk of overpressure.
The construction is carefully engineered for optimal function and operation. The increased pipe dimensions help minimize manure pressure blasts via the transfer pipe, while excess air is safely released through the ventilation pipe.
Manufactured from fiber-reinforced composite material, our Manure Transfer Pipes are highly durable, offering excellent resistance to corrosion and chemical effects, ensuring long-lasting performance in demanding environments.
- One-of-a-kind design.
- Fully molded construction in fiber-reinforced composite.
- Corrosion resistant.
- Chemically resistant.
- Ensures homogeneous flow.
- Smooth internal surfaces for optimal flow.
- Easy to adjust and cut during installation.
- Allows for efficient manure distribution in the slurry tank.
Design
- Manure Transfer Pipes slow down the flow before the 180° bend.
- Pipe dimensions and volume increase after the bend to provide more room for manure.
- Enlarged section reduces overpressure shots via the overflow pipe.
- Excess air is discharged efficiently through the vent pipe.
- Carefully designed construction ensures optimal function and operation.
Options
- Comes in various sizes as needed.
- Can be delivered with fittings.
Sizes and Specifications
| Type | Total height | External height | Internal height | Diameter |
|---|---|---|---|---|
| Standard | 4317 mm | 2412 mm | 3906 mm | Ø 160 mm |
| Specially designed | As needed | As needed | As needed | Ø 160 mm |
