Liquid Fertilizer Tanks
Item no.: N/ALiquid Fertiliser Tanks – Complete and Durable Storage Solutions!

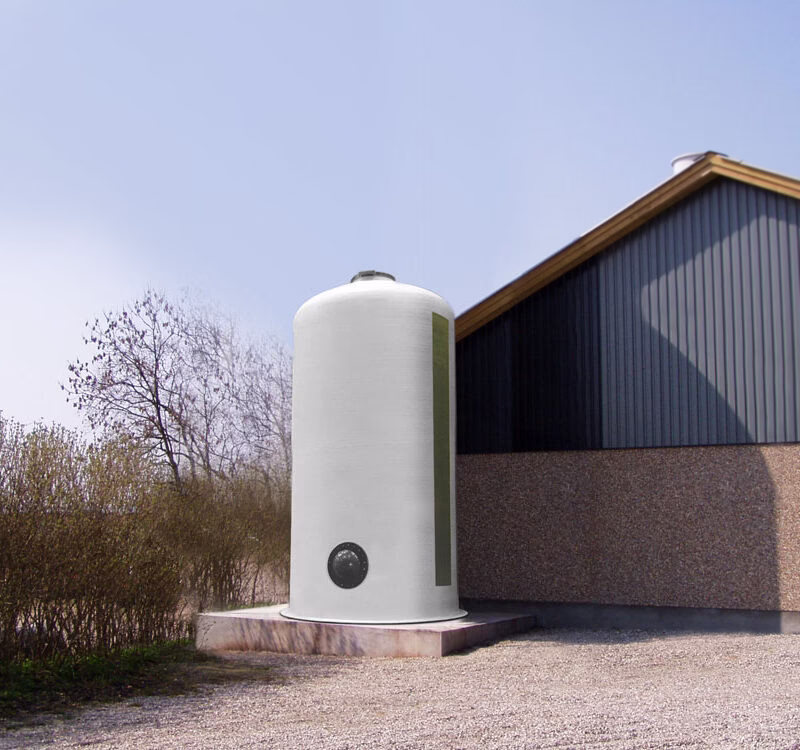

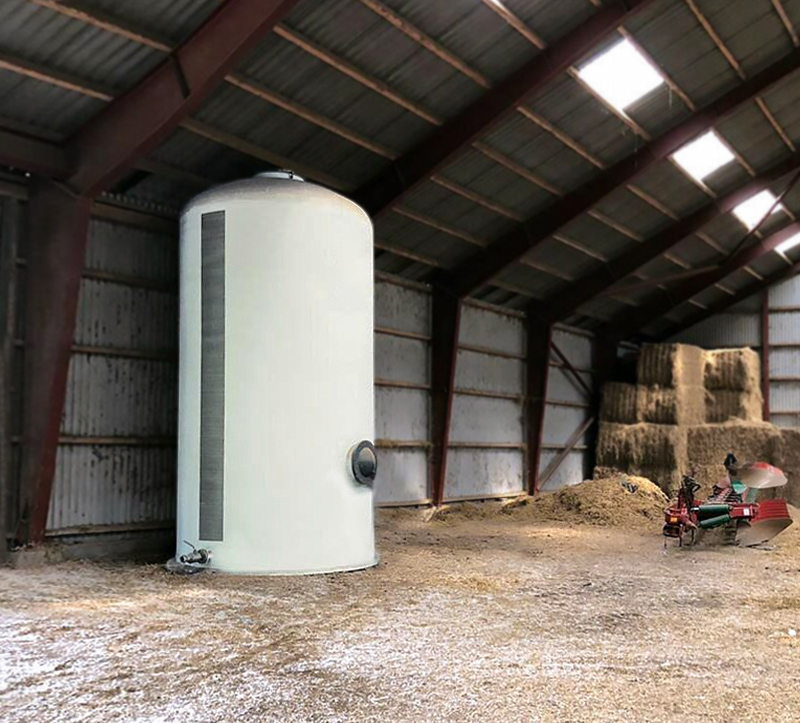

Our Liquid Fertilizer Tanks are engineered to make handling and storage safe, efficient, and long-lasting. Built from robust, fully moulded composite material, the tanks are highly resistant to corrosive fertilisers and designed to minimise the risk of leakage. The result is a reliable solution with prolonged service life and minimal maintenance.
To simplify daily operations, the tanks include:
- A vertical indication stripe for quick content overview.
- Two inspection hatches – one at the top and one on the side.
- Smooth, joint-free inner surfaces for easy cleaning and hygiene.
Available in standard sizes from 5,000 l to 55,000 l and custom-built up to 200,000 l, our tanks adapt to any requirement. A specially developed anchoring edge ensures stability and makes installation safe and straightforward.
With nearly 50 years of expertise, we deliver Liquid Fertilizer Tanks that combine durability, functionality, and user-friendly design – giving you a complete solution for fertilizer storage and handling.
- Customizable size and geometry: Tailored to meet your specific requirements.
- Chemical-resistance: Withstands aggressive fertilizers and other demanding substances.
- Seamless interior design: Prevents accumulation, ensuring easy cleaning and hygienic operation.
Comes With
- Three inspection options available.
- Specially developed anchoring edge for secure installation.
Design
- Density: 1.35.
- Temperature: +/- 50º / 100º C at operation.
- Chemical resistance.
Sizes and Specifications
| Variety | Content | Diameter | Total height |
|---|---|---|---|
| GT5 | 5.000 l | 1.600 mm | 2.400 mm |
| GT10 | 10.000 l | 2.000 mm | 3.200 mm |
| GT15 | 15.000 l | 2.400 mm | 3.400 mm |
| GT20 | 20.000 l | 2.800 mm | 3.600 mm |
| GT25 | 25.000 l | 3.000 mm | 4.000 mm |
| GT30 | 30.000 l | 3.000 mm | 4.800 mm |
| GT35 | 35.000 l | 3.000 mm | 5.500 mm |
| GT40 | 40.000 l | 3.000 mm | 6.900 mm |
| GT45 | 45.000 l | 4.000 mm | 4.200 mm |
| GT50 | 50.000 l | 4.000 mm | 4.700 mm |
| GT55 | 55.000 l | 4.000 mm | 5.300 mm |
Standard colour – white. Custom colors are available from the RAL catalogue for an additional fee.
Options
- Level measuring.
- Insulation with PUR-foam and sandwich construction.
- Special colours according to RAL colour catalogue.
Extra equipment
- Equipment for level measurement.
- Inlet/outlet: DN 80 but can be adapted to operating conditions and needs.
- Inspection hatch: DN800 with hinged vent cover and handle.
- Manhole: DN500 with gasket and cover.
- Indication stripe: for level orientation.
- Ladder bracket: for connection of ladder.
Liquid Fertiliser Tanks - Brochure
