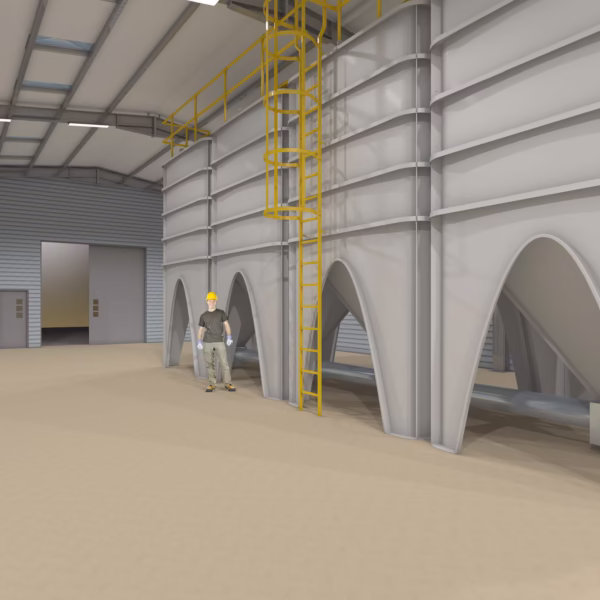

Indoor Modular Silos
Item no.: N/AIndoor Silos – Flexible, Hygienic, and Durable Storage!
Our Indoor Silos modular design allows flexibility to accommodate a wide range of sizes and dimensions.
Constructed from high-quality fiber-reinforced composite material, these silos offer exceptional chemical and corrosion resistance, thermal and electrical insulation, and structural strength. The smooth, anti-slip surfaces can resist rust, while rounded corners and smooth transitions ensure the highest level of hygiene. Natural insulation also minimizes condensation, maintaining optimal storage conditions.
Indoor Silos are available in a variety of colors and can be equipped with a range of accessories, including bottom outlets, transportation systems, automation and reporting equipment, and filling systems. Designed with installation, operation, maintenance, life cycle, and environmental considerations in mind, these silos deliver a durable, efficient, and hygienic storage solution.
- Optimal design for easy emptying, cleaning, and hygiene.
- High fodder hygiene ensured by dynamic mass flow.
- FullFlow discharge system for complete emptying.
- Durable construction – made of fiber-reinforced composite material, resistant to temperature and chemicals.
- Quick installation and low maintenance for operational efficiency.
Design
- Wide range of sizes: 6 m³ to 66 m³ to accommodate different storage needs.
- Modular system: flexible design with multiple construction options.
- Large ventilation area: protects the silo from overpressure during filling.
- Smooth inner surfaces with rounded corners: ensure easy fodder flow.
- Fully molded cone with FullFlow bottom outlet: safe, complete discharge and minimized waste.
- Blow-in pipe with large-radius bend: reduces impact and media separation during filling, preserving fodder quality.
Sizes and Specifications
| Type | Volume | Content | Width | Length | Total height | Free height |
|---|---|---|---|---|---|---|
| IC 6 | 6 m³ | 3,9 t | 3000 mm | 3000 mm | 2911 mm | 538 mm |
| IC 11 | 11 m³ | 7,2 t | 3000 mm | 3000 mm | 3551 mm | 538 mm |
| IC 16 | 16 m³ | 10,4 t | 3000 mm | 3000 mm | 4191 mm | 538 mm |
| IC 21 | 21 m³ | 13,7 t | 3000 mm | 3000 mm | 4831 mm | 538 mm |
| IC 26 | 26 m³ | 16,9 t | 3000 mm | 3000 mm | 5471 mm | 538 mm |
| IC 31 | 31 m³ | 20,2 t | 3000 mm | 3000 mm | 6111 mm | 538 mm |
| IC 36 | 36 m³ | 23,4 t | 3000 mm | 3000 mm | 6751 mm | 538 mm |
| IC 41 | 41 m³ | 26,7 t | 3000 mm | 3000 mm | 7391 mm | 538 mm |
| IC 46 | 46 m³ | 29,9 t | 3000 mm | 3000 mm | 8031 mm | 538 mm |
| IC 51 | 51 m³ | 33,2 t | 3000 mm | 3000 mm | 8671 mm | 538 mm |
| IC 56 | 56 m³ | 36,4 t | 3000 mm | 3000 mm | 9311 mm | 538 mm |
| IC 61 | 61 m³ | 39,7 t | 3000 mm | 3000 mm | 9951 mm | 538 mm |
| IC 66 | 66 m³ | 42,9 t | 3000 mm | 3000 mm | 10591 mm | 538 mm |
Comes With
- Fully molded elements for silo construction.
- Top inlet: Ø 500 mm.
- Inspection hatch for easy access.
- Cone slope: 58° for efficient flow.
- Outlet: 300 x 300 mm.
Options
- Adjustable bottom outlet – compatible with all types of connections, fodder, and transport systems.
- Exhaust air system – can be directed to terrain, keeping the silo and surroundings dust-free.
- Wide range of additional equipment – including cyclones, level indicators, and inspection hatches.
Extra Equipement
- Leg extender.
- Top for many different connections.
- FullFlow bottom outlet.
- Modular ladder system.
- Guard railing.
- Manholes.
- Sight glass.
- Walkway system.
Indoor Modular Silos - Brochure
