Grease Separators

Item no.: N/A

Grease separators are installed on drains with high volumes of fat-containing wastewater, effectively reducing the risk of clogged sewer systems and ensuring smooth wastewater management.

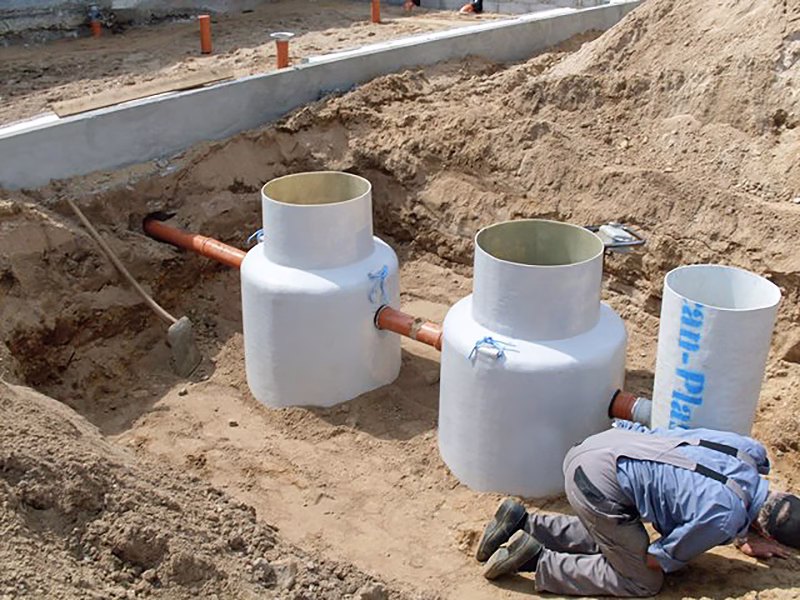

Our grease separators are primarily designed for underground installation in larger facilities such as industrial kitchens, slaughterhouses, bakeries, restaurants, and food processing companies, providing a reliable solution for demanding environments.

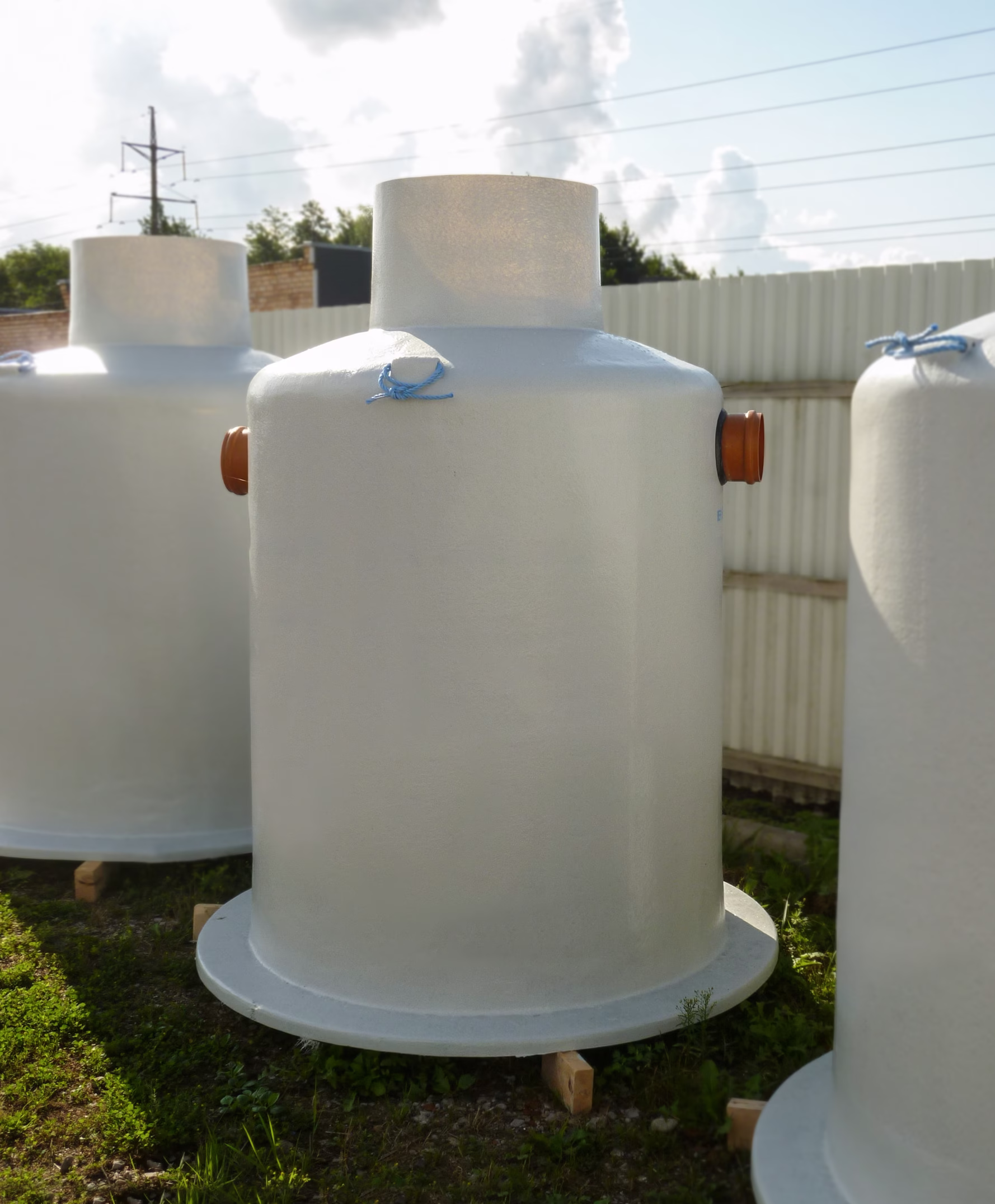

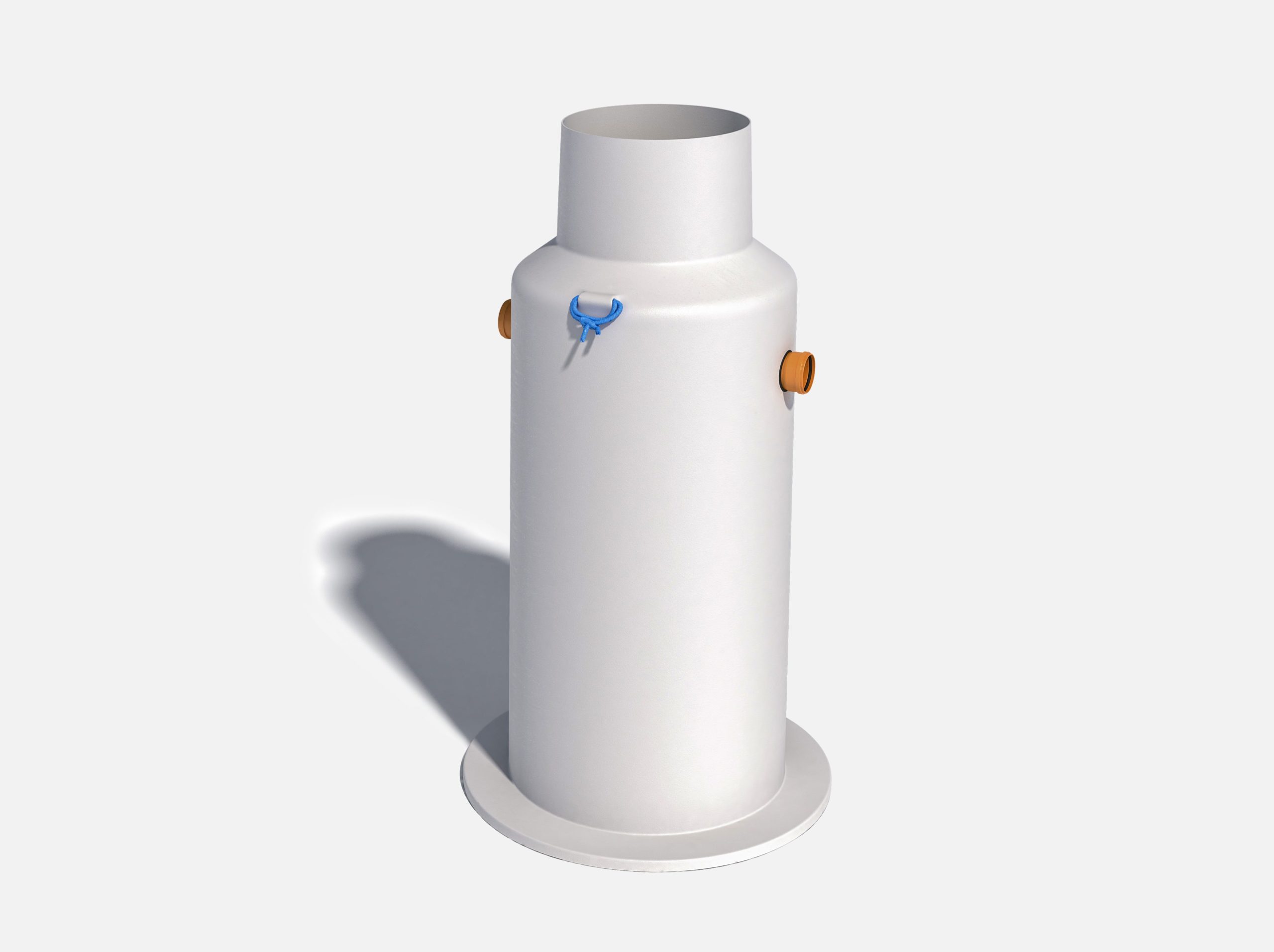

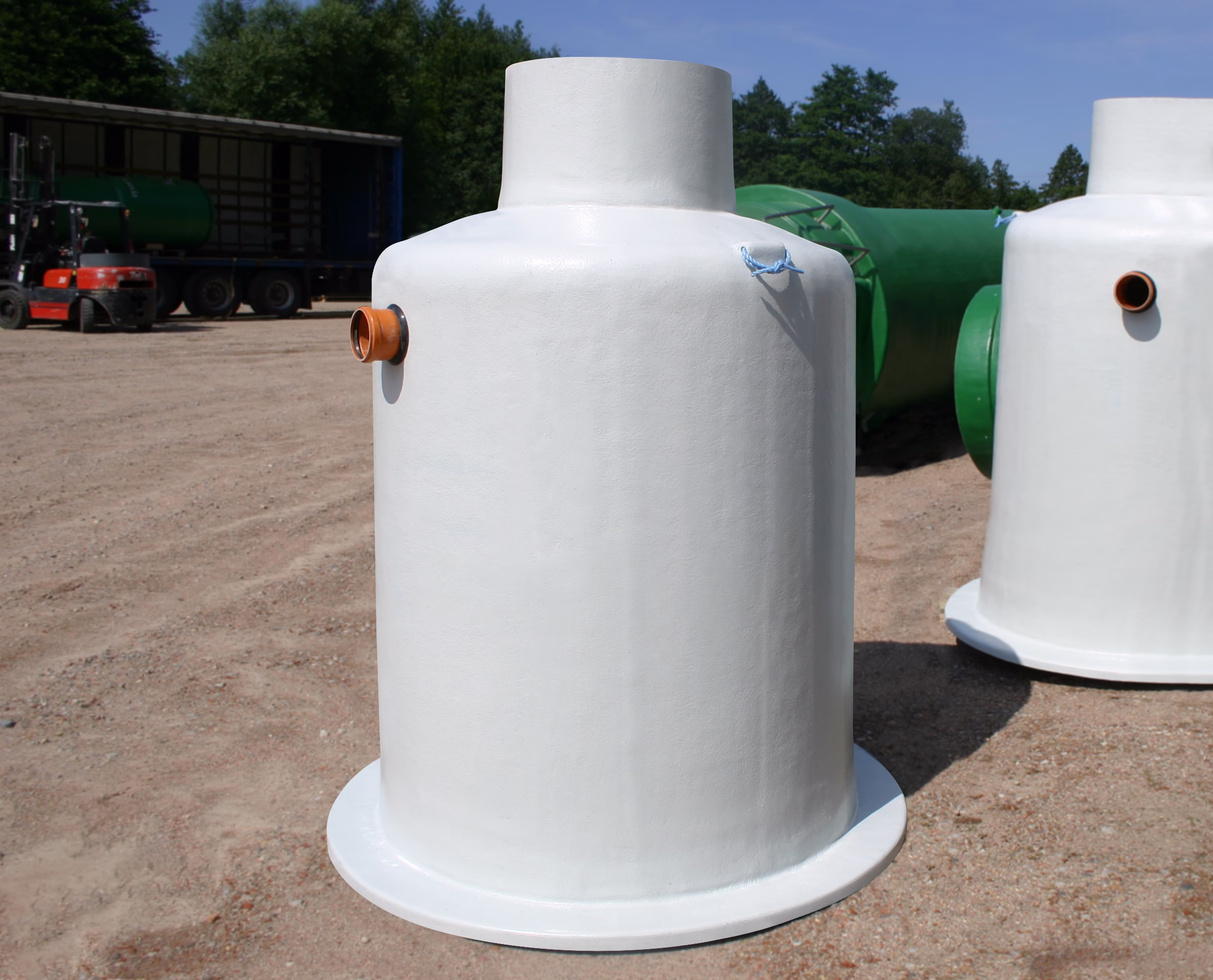

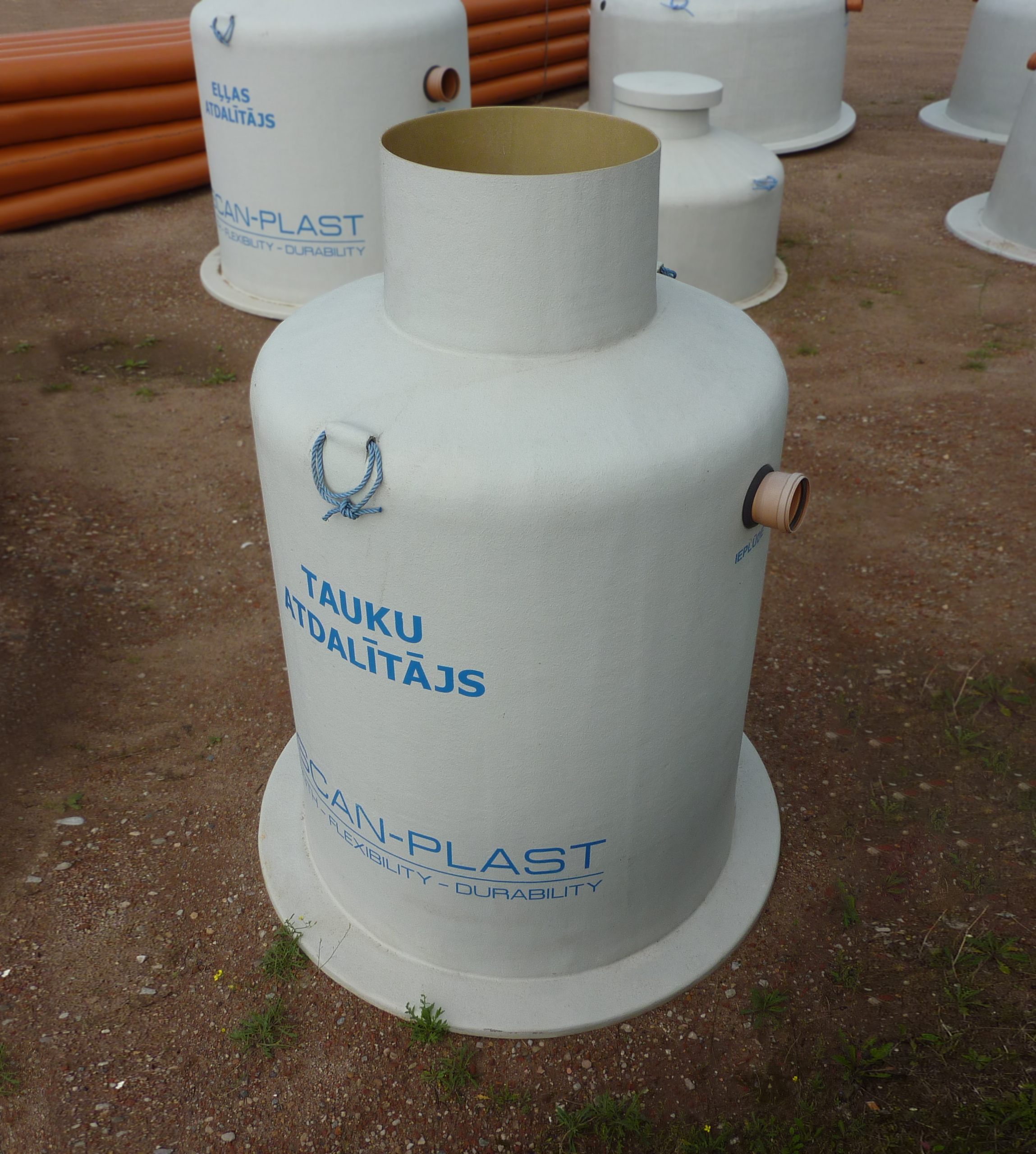

These separators are manufactured as fully molded constructions using composite materials – fiberglass, which are up to 20 times stronger than conventional plastics such as PVC, PE, and PP. This advanced material ensures a long service life, exceptional durability, and minimal maintenance requirements, making our grease separators a cost-effective and dependable choice.

Category:

Benefits

  • Comprehensive selection: Designed to meet a wide range of applications and specific requirements.
  • Certified quality: Constructed in full compliance with industry standards DS/EN 1825-1 and DS 4040-100.
  • CE approved: Ensuring reliability, safety, and high performance.

Comes With

Mounting, operation and maintenance manuals.

Sizes and Specifications


Type
Diameter
Capacity
Sludge trap
Total volume
Height
Pipe attachment
SP-FU 1 900 mm 1 l/sek. – 470 liter 1040 mm Ø110 mm
SP-FU 2 900 mm 2 l/sek. – 1100 liter 2040 mm Ø110 mm
SP-FU 5 1250 mm 5 l/sek. – 1850 liter 2040 mm Ø110 mm
SP-FU 8 1600 mm 8 l/sek. – 3100 liter 2040 mm Ø160 mm
SP-FU 12 2000 mm 12 l/sek. – 5150 liter 2040 mm Ø160 mm
SP-FU 16 2300 mm 16 l/sek. – 7000 liter 2240 mm Ø200 mm
SP-FU 20 2500 mm 20 l/sek. – 8500 liter 2240 mm Ø200 mm
SP-FU 25 2800 mm 25 l/sek. – 12500 liter 2640 mm Ø200 mm
SP-FU 30 3000 mm 30 l/sek. – 14500 liter 2640 mm Ø250 mm
SP-FU 38 3500 mm 38 l/sek. – 19500 liter 2640 mm Ø250 mm
SP-FU 50 4000 mm 50 l/sek. – 27500 liter 2840 mm Ø250 mm
SP-FU 63 4500 mm 63 l/sek. – 34000 liter 2840 mm Ø250 mm
SP-FU/S 2 900 mm 2 l/sek. 425 l 1100 liter 2100 mm Ø110 mm
SP-FU/S 5 1250 mm 5 l/sek. 725 l 1850 liter 2100 mm Ø110 mm
SP-FU/S 8 1600 mm 8 l/sek. 1100 l 3100 liter 2100 mm Ø160 mm
SP-FU/S 12 2000 mm 12 l/sek. 1200 l 5150 liter 2250 mm Ø160 mm
SP-FU/S 16 2300 mm 16 l/sek. 1500 l 7000 liter 2250 mm Ø160 mm
SP-FU/S 20 2500 mm 20 l/sek. 1900 l 8500 liter 2650 mm Ø200 mm
SP-FU/S 25 2800 mm 25 l/sek. 2300 l 12500 liter 2650 mm Ø200 mm

Extra equipment

  • Discharge alarm.
  • Sample well.
  • Smell-proof cover.
  • Integrated sludge trap.
  • Integrated pump sump.
  • Sludge separator well.

Options

  • Can be delivered in customized measurements.
  • Also available with Sludge Traps installed.
