Products
Drainage regulation
Item no.: N/AOur extensive range of water and drainage products is designed to provide exceptional performance, durability, and adaptability for diverse applications. From precision-engineered shut-off dampers to gasket materials and versatile control levers, we offer everything you need to ensure efficient and reliable fluid management.
Explore advanced components like SP Duct Dampers, Overflow Dampers, and Square Knife Gate Valves, tailored to meet the highest industry standards. Complement your setup with a variety of accessories, including wall flanges, gasket materials, and operating levers, optimized for seamless integration.
Whether you require innovative solutions for drainage regulation, robust connections like DIN flange collars, or quick-release mechanisms, our products are crafted to enhance your infrastructure’s efficiency and longevity. Discover how our water and drainage system components can transform your project.
Item no.: N/A Cyclone Water Brake RS
Learn More
×
Cyclone Water Brake RS
Efficiently regulate water volumes with the stainless steel cyclone water brake from Mosbaek, a trusted solution for managing water flow in various infrastructure applications. This innovative device combines exceptional performance with cost-effectiveness, offering low operating and construction costs while delivering reliable water regulation.
Key Features:
- Durable Stainless Steel Construction: Built from high-quality stainless steel, the cyclone water brake provides excellent resistance to corrosion and wear, ensuring long-term reliability.
- Efficient Water Flow Control: Designed to handle variable water volumes, it ensures precise regulation even in high-flow situations.
- Cost-Effective Solution: Minimizes both operational and construction expenses, making it an economical choice for a wide range of projects.
Whether used in municipal waterworks, industrial facilities, or infrastructure projects, the Mosbaek stainless steel cyclone water brake is a dependable and efficient solution for controlling water flow with minimal maintenance.
Sizes and Specifications
| Model | Capacity | Type | Adjustment | Material |
|---|---|---|---|---|
| CY/A | 10 - 600 l/sec | Adjustable inlet opening | +/- 25% | AISI 316/Composite |
| CY/C | 10 - 600 l/sec | Fixed inlet opening | Fixed | AISI 316/Composite |
| CY/D | 10 - 600 l/sec | Dry-installed | Fixed | AISI 316/Composite |
Downloads
Installation Instructions
Item no.: N/A Centrifugal Brake CEV
Learn More
×
Centrifugal Brake CEV
Centrifugal brake CEV
Submerged drain regulator from Mosbaek.
For regulating water volumes.
Great usability, good regulation, low operating and construction costs.
Used in drains from roof surfaces, pipe storage, inlets to oil separators, etc.
Sizes and Specifications
| Model | Capacity | Type | Adjustment | Material |
|---|---|---|---|---|
| CE/V | 0.2 - 80 l/sec | Adjustable inlet opening | +/- 20% | AISI 316/Composite |
Downloads
Installation Instructions
Maintenance Instructions
Item no.: N/A Centrifugal brake CEH
Learn More
×
Centrifugal brake CEH
Dry-installed drain regulator from Mosbaek.
For regulating water volumes.
Used for small capacities, adjustable, low operating and construction costs.
Used in drains from basins, spillways, etc.
Sizes and Specifications
| Model | Capacity | Type | Adjustment | Material |
|---|---|---|---|---|
| CE/H | 4 - 30 l/sec | Adjustable inlet opening | Fixed | AISI 316/Composite |
Item no.: N/A Double Drain Regulator DB
Learn More
×
Double Drain Regulator DB
Submerged drain regulator from Mosbaek.
For regulating water volumes.
Great versatility, good regulation, low operating and construction costs.
Used in drains from basins, overflow structures, pipe storage, inlets to pumping stations, separators and treatment plants, etc.
Sizes and Specifications
| Model | Capacity | Type | Adjustment | Material |
|---|---|---|---|---|
| DB | 30 l/sec - 20m³/sec | Adjustable inlet and outlet | +/- 25% | AISI 316/Composite |
Downloads
Installation Instructions
Maintenance Instructions
Item no.: N/A Water brake
Learn More
×
Water brake
Submerged water brake.
For regulating water volumes.
Used in rainwater basins, overflow structures, rainwater tunnels, pipe basins, etc.
Supplied without mounting brackets and overflow pipe. Available for purchase separately.
Sizes and Specifications
| Type | Diameter | Adjustment | Material |
|---|---|---|---|
| 0.1 - 25 l/sec | 110 mm | Fixed | Composite |
| 0.1 - 50 l/sec | 160 mm | Fixed | Composite |
| 0.1 - 90 l/sec | 200 mm | Fixed | Composite |
| 0.1 - 140 l/sec | 250 mm | Fixed | Composite |
| Bracket | 110 mm | Fixed | Steel |
| Bracket | 160 mm | Fixed | Steel |
| Bracket | 200 mm | Fixed | Steel |
| Bracket | 250 mm | Fixed | Steel |
| Extension | 1000 mm | Fixed | Steel |
Downloads
Brochure
Installation Instructions
High Water Shut-off Valves
Item no.: N/A High Water Shut-Off Valve
Learn More
×
High Water Shut-Off Valve
This valve offers an efficient solution for managing both faecal and non-faecal wastewater in in-floor applications. The robust PVC housing, paired with polyamide sealing rings and components, ensures durability and long-term performance. The sleeve and spigot end allow for easy connection to smooth pipes.
Featuring an automatic non-return valve, the system uses an electronic sensor to detect water buildup, closing one flap when levels rise and reopening as the water recedes. The secondary flap can be manually closed with a handle for additional control. Ideal for installation beneath paving stones or plastic grating, this valve is designed for use in floors with a well diameter of 590 mm.
Sizes and Specifications
| Diameter | Length |
|---|---|
| 110 mm | 310 mm |
| 160 mm | 350 mm |
| 200 mm | 390 mm |
Downloads
Certification
Item no.: N/A High Water Shut-Off Valve With Two Flaps
Learn More
×
High Water Shut-Off Valve With Two Flaps
High water shut-off valve made from PVC.
With sleeve and spigot end for smooth pipes.
For non faecal and faecal waste water.
Automatically operating non-return flap.
One flap can be forcibly closed with a handle.
Can be used for other pipe types together with transition piece and seal.
Sizes and Specifications
| Diameter | Length |
|---|---|
| 110 mm | 490 mm |
| 160 mm | 590 mm |
Downloads
Certification
Item no.: N/A High Water Shut-Off Valve With Motor for Installation in Manhole
Learn More
×
High Water Shut-Off Valve With Motor for Installation in Manhole
This valve is designed for reliable wastewater management, handling both faecal and non-faecal applications. Its durable PVC housing and polyamide components ensure long-lasting performance, while the sleeve and spigot end make installation with smooth pipes simple and efficient.
The system operates automatically, using an electronic sensor to detect rising water levels. It closes to prevent backflow and reopens as the water recedes. For additional control, a secondary flap can be manually closed with a handle. This versatile design integrates seamlessly into exposed pipes or existing wells, offering dependable protection in wastewater systems.
Sizes and Specifications
| Diameter | Material |
|---|---|
| 110 mm | PVC/Polyamide |
| 160 mm | PVC/Polyamide |
| 200 mm | PVC/Polyamide |
Item no.: N/A High Water Shut-Off Valve With Motor for In-floor Installation
Learn More
×
High Water Shut-Off Valve With Motor for In-floor Installation
This valve offers an efficient solution for managing both faecal and non-faecal wastewater in in-floor applications. The robust PVC housing, paired with polyamide sealing rings and components, ensures durability and long-term performance. The sleeve and spigot end allow for easy connection to smooth pipes.
Featuring an automatic non-return valve, the system uses an electronic sensor to detect water buildup, closing one flap when levels rise and reopening as the water recedes. The secondary flap can be manually closed with a handle for additional control. Ideal for installation beneath paving stones or plastic grating, this valve is designed for use in floors with a well diameter of 590 mm.
Sizes and Specifications
| Diameter | Material |
|---|---|
| 110 mm | PVC/Polyamide |
| 160 mm | PVC/Polyamide |
| 200 mm | PVC/Polyamide |
Item no.: N/A Vacuum Valve for Drain Line Venting
Learn More
×

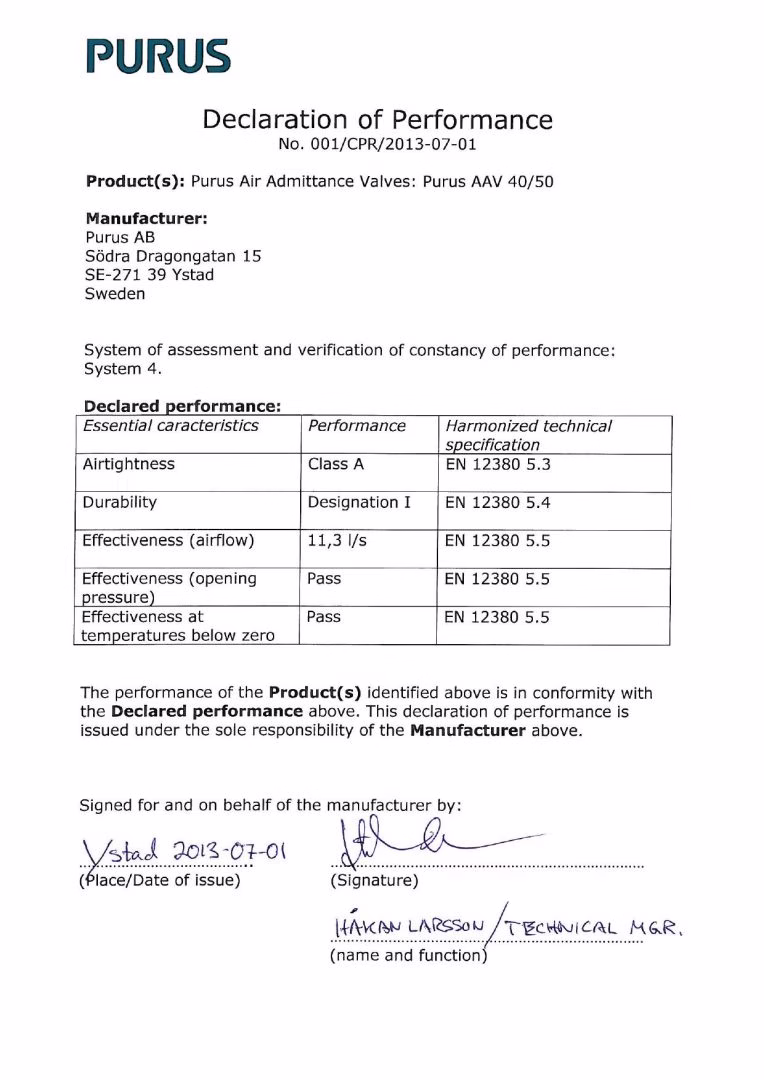

Vacuum Valve for Drain Line Venting
This vacuum valve is designed for installation in building drain lines, effectively preventing the suction of connected siphons by allowing proper venting. It ensures the smooth flow of wastewater and maintains system balance, offering reliable performance in both residential and commercial plumbing systems.
Sizes and Specifications
| Diameter | Material |
|---|---|
| 1/2" | ABS |
| 75 mm | ABS |
| 110 mm | ABS |
| 40/50 mm | ABS |
Downloads
Certification
Check Valves
Item no.: N/A SP Sewer Check Valve
Learn More
×
SP Sewer Check Valve
With acid-proof steel plate.
For installation in pools.
Sizes and Specifications
| Diameter | Material |
|---|---|
| 110 mm | PEHD/Acid-resistant steel |
| 160 mm | PEHD/Acid-resistant steel |
Downloads
Certification
Datasheet
Item no.: N/A SP Check Valve
Learn More
×
SP Check Valve
Prevents rainwater and wastewater from backing up in house installations, resulting in flooding of basements and the like.
For installation in inspection chambers.
Sizes and Specifications
| Diameter | Material |
|---|---|
| 110 mm | PEHD/PP |
| 125 mm | PEHD/PP |
| 160 mm | PEHD/PP |
| 200 mm | PEHD/PP |
Downloads
Datasheet
Certification
Item no.: N/A SP Backflow Preventer
Learn More
×
SP Backflow Preventer
Prevents sudden water ingress in basements and other exposed areas.
For installation in inspection chambers.
Sizes and Specifications
| Diameter | Material |
|---|---|
| 110 mm | PVC/Composite |
| 125 mm | PVC/Composite |
| 160 mm | PVC/Composite |
| 200 mm | PVC/Composite |
Downloads
Datasheet
Item no.: N/A SP KVI Check Valve
Learn More
×
SP KVI Check Valve
Flood protection and as a shut-off to prevent backflow in the pipe system.
For insertion in plastic, concrete or steel pipes.
Inner diameter of existing pipes is specified.
Sizes and Specifications
| Diameter | Material |
|---|---|
| 180 mm | HDPE |
| 200 mm | HDPE |
| 225 mm | HDPE |
| 250 mm | HDPE |
| 315 mm | HDPE |
| 355 mm | HDPE |
| 400 mm | HDPE |
| 500 mm | HDPE |
| 630 mm | HDPE |
| 710 mm | HDPE |
| 800 mm | HDPE |
| 900 mm | HDPE |
| 1000 mm | HDPE |
Downloads
Datasheet
Item no.: N/A SP KVI-B Check Valve
Learn More
×
SP KVI-B Check Valve
Prevents rainwater and wastewater from backing up in house installations, resulting in flooding of basements and the like.
For installation in inspection chambers.
Sizes and Specifications
| Diameter | Material |
|---|---|
| 500 mm | HDPE |
| 600 mm | HDPE |
| 710 mm | HDPE |
| 800 mm | HDPE |
| 900 mm | HDPE |
| 1000 mm | HDPE |
Downloads
Datasheet
Item no.: N/A SP Check Valve KVR
Learn More
×
SP Check Valve KVR
Flood protection and as a shut-off to prevent backflow in the pipe system.
For insertion in plastic, concrete or steel pipes.
Inner diameter of existing pipes is specified.
Sizes and Specifications
| Diameter | Material |
|---|---|
| 110 mm | PEHD |
| 125 mm | PEHD |
| 160 mm | PEHD |
| 200 mm | PEHD |
| 250 mm | PEHD |
| 315 mm | PEHD |
| 400 mm | PEHD |
| 500 mm | PEHD |
| 630 mm | PEHD |
| 710 mm | PEHD |
| 800 mm | PEHD |
| 900 mm | PEHD |
| 1000 mm | PEHD |
Downloads
Datasheet
Item no.: N/A SP KVM Check Valve
Learn More
×
SP KVM Check Valve
The KVM check valve provides reliable flood protection and prevents backflow in pipe systems, acting as an efficient shut-off solution. Designed for easy installation in plastic, concrete, or steel pipes with pointed ends, it ensures robust performance and dependable operation in diverse applications.
Sizes and Specifications
| Diameter | Material |
|---|---|
| 110 mm | PEHD |
| 125 mm | PEHD |
| 160 mm | PEHD |
| 200 mm | PEHD |
| 250 mm | PEHD |
| 315 mm | PEHD |
| 400 mm | PEHD |
| 500 mm | PEHD |
| 630 mm | PEHD |
Downloads
Datasheet
Item no.: N/A SP KVF Check Valve
Learn More
×

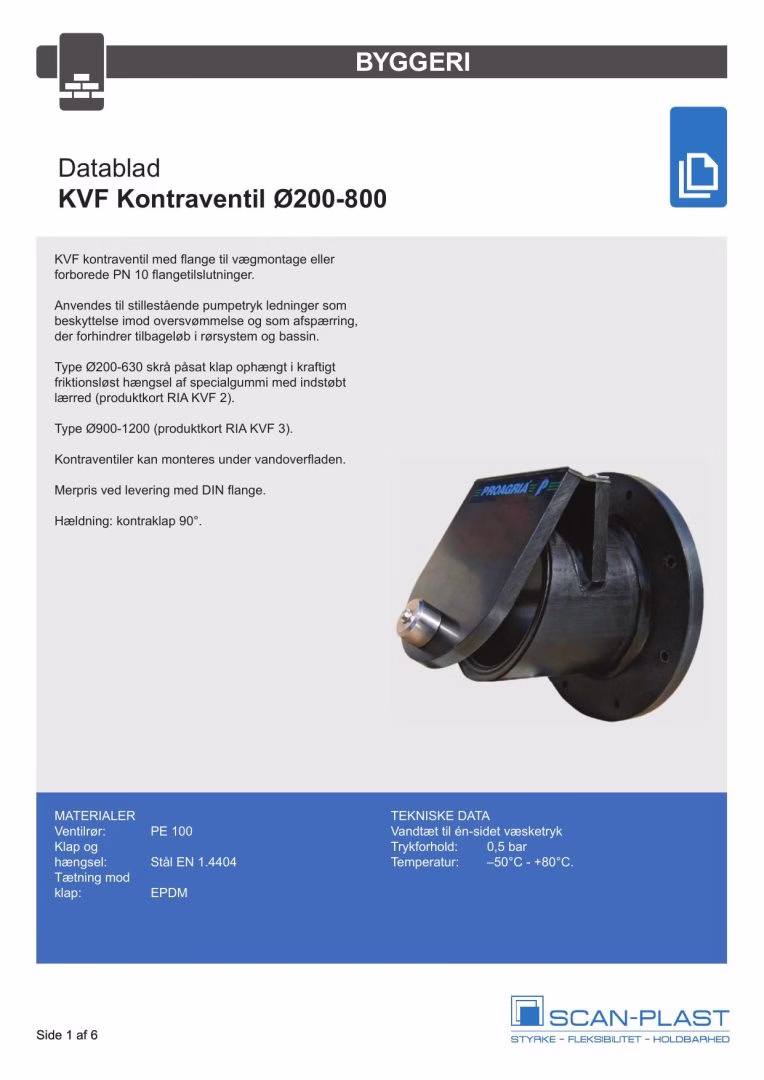

SP KVF Check Valve
This versatile valve provides effective flood protection while serving as a reliable shut-off to prevent backflow in pipe systems. Designed for seamless installation, it fits into plastic, concrete, or steel pipes and is compatible with wall mounting or PN10 flange connections, ensuring adaptability to various system requirements.
Sizes and Specifications
| Diameter | Material |
|---|---|
| 110 mm | PEHD |
| 125 mm | PEHD |
| 160 mm | PEHD |
| 200 mm | PEHD |
| 250 mm | PEHD |
| 315 mm | PEHD |
| 400 mm | PEHD |
| 500 mm | PEHD |
| 630 mm | PEHD |
| 710 mm | PEHD |
| 800 mm | PEHD |
| 900 mm | PEHD |
| 1000 mm | PEHD |
| 1200 mm | PEHD |
Downloads
Datasheet
Miscellaneous Valves
Item no.: N/A SP Gate Valves SVL
Learn More
×
SP Gate Valves SVL
The SP Gate Valve SVL is built for durability and precision, crafted from impact-resistant PEHD and stainless steel. Its EPDM sealing system ensures a secure fit at the valve spade, while the encapsulated closing mechanism features a self-cleaning pocket function, guaranteeing 100% closure even under demanding conditions.
Designed for use with rainwater, wastewater, process water, and light liquid sludge, this manually operated valve is controlled via a pull rod, making it a reliable choice for a variety of water management applications.
Sizes and Specifications
| Diameter | Variant type | Strength class | Temperature | Material |
|---|---|---|---|---|
| 110 mm | One-sided pressure | PN2 | -50°C - +80°C | Stainless steel AISI 304 |
| 110 mm | One-sided pressure | PN2 | -50°C - +80°C | Stainless steel AISI 316 |
| 110 mm | One-sided pressure | PN2 | -50°C - +80°C | Stainless steel Duplex |
| 125 mm | One-sided pressure | PN2 | -50°C - +80°C | Stainless steel AISI 304 |
| 125 mm | One-sided pressure | PN2 | -50°C - +80°C | Stainless steel AISI 316 |
| 125 mm | One-sided pressure | PN2 | -50°C - +80°C | Stainless steel Duplex |
| 160 mm | One-sided pressure | PN2 | -50°C - +80°C | Stainless steel AISI 304 |
| 160 mm | One-sided pressure | PN2 | -50°C - +80°C | Stainless steel AISI 316 |
| 160 mm | One-sided pressure | PN2 | -50°C - +80°C | Stainless steel Duplex |
| 200 mm | One-sided pressure | PN1 | -50°C - +80°C | Stainless steel AISI 304 |
| 200 mm | One-sided pressure | PN1 | -50°C - +80°C | Stainless steel AISI 316 |
| 200 mm | One-sided pressure | PN1 | -50°C - +80°C | Stainless steel Duplex |
| 250 mm | One-sided pressure | PN1 | -50°C - +80°C | Stainless steel AISI 304 |
| 250 mm | One-sided pressure | PN1 | -50°C - +80°C | Stainless steel AISI 316 |
| 250 mm | One-sided pressure | PN1 | -50°C - +80°C | Stainless steel Duplex |
| 315 mm | One-sided pressure | PN1 | -50°C - +80°C | Stainless steel AISI 304 |
| 315 mm | One-sided pressure | PN1 | -50°C - +80°C | Stainless steel AISI 316 |
| 315 mm | One-sided pressure | PN1 | -50°C - +80°C | Stainless steel Duplex |
Downloads
Datasheet
Item no.: N/A SP Gate Valves SVLT
Learn More
×
SP Gate Valves SVLT
The SP Gate Valve SVLT is built for durability and precision, crafted from impact-resistant PEHD and stainless steel. Its EPDM sealing system ensures a secure fit at the valve spade, while the encapsulated closing mechanism features a self-cleaning pocket function, guaranteeing 100% closure even under demanding conditions.
Designed for use with rainwater, wastewater, process water, and light liquid sludge, this manually operated valve is controlled via a pull rod, making it a reliable choice for a variety of water management applications.
Sizes and Specifications
| Diameter | Variant type | Strength class | Temperature | Material |
|---|---|---|---|---|
| 110 mm | One-sided pressure | PN2 | -50°C - +80°C | Stainless steel AISI 304 |
| 110 mm | One-sided pressure | PN2 | -50°C - +80°C | Stainless steel AISI 316 |
| 110 mm | One-sided pressure | PN2 | -50°C - +80°C | Stainless steel Duplex |
| 125 mm | One-sided pressure | PN2 | -50°C - +80°C | Stainless steel AISI 304 |
| 125 mm | One-sided pressure | PN2 | -50°C - +80°C | Stainless steel AISI 316 |
| 125 mm | One-sided pressure | PN2 | -50°C - +80°C | Stainless steel Duplex |
| 160 mm | One-sided pressure | PN2 | -50°C - +80°C | Stainless steel AISI 304 |
| 160 mm | One-sided pressure | PN2 | -50°C - +80°C | Stainless steel AISI 316 |
| 160 mm | One-sided pressure | PN2 | -50°C - +80°C | Stainless steel Duplex |
| 200 mm | One-sided pressure | PN1 | -50°C - +80°C | Stainless steel AISI 304 |
| 200 mm | One-sided pressure | PN1 | -50°C - +80°C | Stainless steel AISI 316 |
| 200 mm | One-sided pressure | PN1 | -50°C - +80°C | Stainless steel Duplex |
| 250 mm | One-sided pressure | PN1 | -50°C - +80°C | Stainless steel AISI 304 |
| 250 mm | One-sided pressure | PN1 | -50°C - +80°C | Stainless steel AISI 316 |
| 250 mm | One-sided pressure | PN1 | -50°C - +80°C | Stainless steel Duplex |
| 315 mm | One-sided pressure | PN1 | -50°C - +80°C | Stainless steel AISI 304 |
| 315 mm | One-sided pressure | PN1 | -50°C - +80°C | Stainless steel AISI 316 |
| 315 mm | One-sided pressure | PN1 | -50°C - +80°C | Stainless steel Duplex |
Item no.: N/A SP Gate Valves FVL
Learn More
×
SP Gate Valves FVL
This robust gate valve is constructed from impact-resistant PEHD and stainless steel, ensuring exceptional durability. Its EPDM sealing system provides a secure fit at the valve spade, while the encapsulated closing mechanism enhances reliability.
Specifically designed for fish farming, this valve facilitates the safe and efficient transport of fish through pipe systems. Operated manually via a pull rod, it offers precise control without requiring a self-cleaning pocket function, making it a dependable choice for specialized aquaculture needs.
Sizes and Specifications
| Diameter | Variant Type | Strength Class | Temperature | Material |
|---|---|---|---|---|
| 110 mm | One-sided pressure | PN2 | -50°C - +80°C | Stainless steel AISI 316 |
| 125 mm | One-sided pressure | PN2 | -50°C - +80°C | Stainless steel AISI 316 |
| 160 mm | One-sided pressure | PN2 | -50°C - +80°C | Stainless steel AISI 316 |
| 200 mm | One-sided pressure | PN1 | -50°C - +80°C | Stainless steel AISI 316 |
| 250 mm | One-sided pressure | PN1 | -50°C - +80°C | Stainless steel AISI 316 |
| 315 mm | One-sided pressure | PN1 | -50°C - +80°C | Stainless steel AISI 316 |
Item no.: N/A SP Gate Valves RVL
Learn More
×
SP Gate Valves RVL
The SP Sliding Gate Valve is constructed from impact-resistant PEHD and stainless steel, ensuring durability and longevity. It features an EPDM sealing system around the gate blade and an encapsulated closing mechanism without a self-cleaning pocket function.
Designed for handling rainwater and process water free of large impurities, this valve is operated manually using a pull rod, offering precise and reliable control in various applications.
Sizes and Specifications
| Diameter | Variant Type | Strength Class | Temperature | Material |
|---|---|---|---|---|
| 110 mm | Double-sided pressure | PN2 | -50°C - +80°C | Stainless steel AISI 316 |
| 110 mm | Double-sided pressure | PN2 | -50°C - +80°C | Stainless steel Duplex |
| 125 mm | Double-sided pressure | PN2 | -50°C - +80°C | Stainless steel AISI 316 |
| 125 mm | Double-sided pressure | PN2 | -50°C - +80°C | Stainless steel Duplex |
| 160 mm | Double-sided pressure | PN2 | -50°C - +80°C | Stainless steel AISI 316 |
| 160 mm | Double-sided pressure | PN2 | -50°C - +80°C | Stainless steel Duplex |
| 200 mm | Double-sided pressure | PN1 | -50°C - +80°C | Stainless steel AISI 316 |
| 200 mm | Double-sided pressure | PN1 | -50°C - +80°C | Stainless steel Duplex |
| 250 mm | Double-sided pressure | PN1 | -50°C - +80°C | Stainless steel AISI 316 |
| 250 mm | Double-sided pressure | PN1 | -50°C - +80°C | Stainless steel Duplex |
| 315 mm | Double-sided pressure | PN1 | -50°C - +80°C | Stainless steel AISI 316 |
| 315 mm | Double-sided pressure | PN1 | -50°C - +80°C | Stainless steel Duplex |
Downloads
Datasheet
Item no.: N/A SP Gate Valves GV
Learn More
×
SP Gate Valves GV
Crafted from durable PEHD and stainless steel, this sliding valve features an EPDM sealing system on the valve spade for a secure, leak-free closure. Its encapsulated closing mechanism incorporates a self-cleaning pocket function, ensuring reliable 100% closure over time.
Designed for hand operation via a pull rod, this valve is ideal for managing media in agricultural settings, as well as mink and fish farming applications, offering a robust and dependable solution for demanding environments.
Sizes and Specifications
| Diameter | Variant Type | Strength Class | Temperature | Material |
|---|---|---|---|---|
| 110 mm | One-sided pressure | PN4 | -50°C - +80°C | Stainless steel AISI 304 |
| 125 mm | One-sided pressure | PN4 | -50°C - +80°C | Stainless steel AISI 304 |
| 160 mm | One-sided pressure | PN4 | -50°C - +80°C | Stainless steel AISI 304 |
| 200 mm | One-sided pressure | PN2 | -50°C - +80°C | Stainless steel AISI 304 |
| 250 mm | One-sided pressure | PN2 | -50°C - +80°C | Stainless steel AISI 304 |
| 315 mm | One-sided pressure | PN2 | -50°C - +80°C | Stainless steel AISI 304 |
Downloads
Datasheet
Item no.: N/A SP Shut-off Valves SVM-TG
Learn More
×
SP Shut-off Valves SVM-TG
Crafted from durable PEHD and stainless steel, this shut-off valve is built to handle demanding applications, including rainwater, wastewater, process water, and semi-liquid sludge. The EPDM sealing system on the valve spade ensures a reliable seal, while the full-flow design and self-cleaning pocket function guarantee complete closure and efficient operation.
Designed for manual control, the valve is operated via a sturdy handwheel, making it a dependable choice for various water management systems.
Sizes and Specifications
| Diameter | Variant type | Strength class | Temperature | Material |
|---|---|---|---|---|
| 110 mm | Single-sided pressure | PN6 | -50°C - +80°C | Stainless steel AISI 304 |
| 110 mm | Single-sided pressure | PN6 | -50°C - +80°C | Stainless steel AISI 316 |
| 110 mm | Single-sided pressure | PN6 | -50°C - +80°C | Stainless steel Duplex |
| 125 mm | Single-sided pressure | PN6 | -50°C - +80°C | Stainless steel AISI 304 |
| 125 mm | Single-sided pressure | PN6 | -50°C - +80°C | Stainless steel AISI 316 |
| 125 mm | Single-sided pressure | PN6 | -50°C - +80°C | Stainless steel Duplex |
| 160 mm | Single-sided pressure | PN6 | -50°C - +80°C | Stainless steel AISI 304 |
| 160 mm | Single-sided pressure | PN6 | -50°C - +80°C | Stainless steel AISI 316 |
| 160 mm | Single-sided pressure | PN6 | -50°C - +80°C | Stainless steel Duplex |
| 200 mm | Single-sided pressure | PN6 | -50°C - +80°C | Stainless steel AISI 304 |
| 200 mm | Single-sided pressure | PN6 | -50°C - +80°C | Stainless steel AISI 316 |
| 200 mm | Single-sided pressure | PN6 | -50°C - +80°C | Stainless steel Duplex |
| 250 mm | Single-sided pressure | PN6 | -50°C - +80°C | Stainless steel AISI 304 |
| 250 mm | Single-sided pressure | PN6 | -50°C - +80°C | Stainless steel AISI 316 |
| 250 mm | Single-sided pressure | PN6 | -50°C - +80°C | Stainless steel Duplex |
| 315 mm | Single-sided pressure | PN4 | -50°C - +80°C | Stainless steel AISI 304 |
| 315 mm | Single-sided pressure | PN4 | -50°C - +80°C | Stainless steel AISI 316 |
| 315 mm | Single-sided pressure | PN4 | -50°C - +80°C | Stainless steel Duplex |
| 400 mm | Single-sided pressure | PN2 | -50°C - +80°C | Stainless steel AISI 304 |
| 400 mm | Single-sided pressure | PN2 | -50°C - +80°C | Stainless steel AISI 316 |
| 400 mm | Single-sided pressure | PN2 | -50°C - +80°C | Stainless steel Duplex |
| 450 mm | Single-sided pressure | PN2 | -50°C - +80°C | Stainless steel AISI 304 |
| 450 mm | Single-sided pressure | PN2 | -50°C - +80°C | Stainless steel AISI 316 |
| 450 mm | Single-sided pressure | PN2 | -50°C - +80°C | Stainless steel Duplex |
| 500 mm | Single-sided pressure | PN2 | -50°C - +80°C | Stainless steel AISI 304 |
| 500 mm | Single-sided pressure | PN2 | -50°C - +80°C | Stainless steel AISI 316 |
| 500 mm | Single-sided pressure | PN2 | -50°C - +80°C | Stainless steel Duplex |
| 630 mm | Single-sided pressure | PN2 | -50°C - +80°C | Stainless steel AISI 304 |
| 630 mm | Single-sided pressure | PN2 | -50°C - +80°C | Stainless steel AISI 316 |
| 630 mm | Single-sided pressure | PN2 | -50°C - +80°C | Stainless steel Duplex |
| 710 mm | Single-sided pressure | PN2 | -50°C - +80°C | Stainless steel AISI 316 |
| 800 mm | Single-sided pressure | PN1 | -50°C - +80°C | Stainless steel AISI 316 |
| 900 mm | Single-sided pressure | PN1 | -50°C - +80°C | Stainless steel AISI 316 |
| 1000 mm | Single-sided pressure | PN 0.5 | -50°C - +80°C | Stainless steel AISI 316 |
| 1100 mm | Single-sided pressure | PN 0.5 | -50°C - +80°C | Stainless steel AISI 316 |
Downloads
Datasheet
Item no.: N/A SP Shut-off Valves RVM-TG
Learn More
×
SP Shut-off Valves RVM-TG
Crafted from durable PEHD and stainless steel, this shut-off valve is built to handle demanding applications, including rainwater, wastewater, process water, and semi-liquid sludge. The EPDM sealing system on the valve spade ensures a reliable seal, while the full-flow design guarantees complete closure and efficient operation. However, there is no self-cleaning function.
Designed for manual control, the valve is operated via a sturdy handwheel, making it a dependable choice for various water management systems.
Sizes and Specifications
| Diameter | Variant type | Strength class | Temperature | Material |
|---|---|---|---|---|
| 110 mm | Single-sided pressure | PN6 | -50°C - +80°C | Stainless steel AISI 304 |
| 110 mm | Single-sided pressure | PN6 | -50°C - +80°C | Stainless steel AISI 316 |
| 110 mm | Single-sided pressure | PN6 | -50°C - +80°C | Stainless steel Duplex |
| 125 mm | Single-sided pressure | PN6 | -50°C - +80°C | Stainless steel AISI 304 |
| 125 mm | Single-sided pressure | PN6 | -50°C - +80°C | Stainless steel AISI 316 |
| 125 mm | Single-sided pressure | PN6 | -50°C - +80°C | Stainless steel Duplex |
| 160 mm | Single-sided pressure | PN6 | -50°C - +80°C | Stainless steel AISI 304 |
| 160 mm | Single-sided pressure | PN6 | -50°C - +80°C | Stainless steel AISI 316 |
| 160 mm | Single-sided pressure | PN6 | -50°C - +80°C | Stainless steel Duplex |
| 200 mm | Single-sided pressure | PN6 | -50°C - +80°C | Stainless steel AISI 304 |
| 200 mm | Single-sided pressure | PN6 | -50°C - +80°C | Stainless steel AISI 316 |
| 200 mm | Single-sided pressure | PN6 | -50°C - +80°C | Stainless steel Duplex |
| 250 mm | Single-sided pressure | PN6 | -50°C - +80°C | Stainless steel AISI 304 |
| 250 mm | Single-sided pressure | PN6 | -50°C - +80°C | Stainless steel AISI 316 |
| 250 mm | Single-sided pressure | PN6 | -50°C - +80°C | Stainless steel Duplex |
| 315 mm | Single-sided pressure | PN4 | -50°C - +80°C | Stainless steel AISI 304 |
| 315 mm | Single-sided pressure | PN4 | -50°C - +80°C | Stainless steel AISI 316 |
| 315 mm | Single-sided pressure | PN4 | -50°C - +80°C | Stainless steel Duplex |
| 400 mm | Single-sided pressure | PN2 | -50°C - +80°C | Stainless steel AISI 304 |
| 400 mm | Single-sided pressure | PN2 | -50°C - +80°C | Stainless steel AISI 316 |
| 400 mm | Single-sided pressure | PN2 | -50°C - +80°C | Stainless steel Duplex |
| 450 mm | Single-sided pressure | PN2 | -50°C - +80°C | Stainless steel AISI 304 |
| 450 mm | Single-sided pressure | PN2 | -50°C - +80°C | Stainless steel AISI 316 |
| 450 mm | Single-sided pressure | PN2 | -50°C - +80°C | Stainless steel Duplex |
| 500 mm | Single-sided pressure | PN2 | -50°C - +80°C | Stainless steel AISI 304 |
| 500 mm | Single-sided pressure | PN2 | -50°C - +80°C | Stainless steel AISI 316 |
| 500 mm | Single-sided pressure | PN2 | -50°C - +80°C | Stainless steel Duplex |
| 630 mm | Single-sided pressure | PN2 | -50°C - +80°C | Stainless steel AISI 304 |
| 630 mm | Single-sided pressure | PN2 | -50°C - +80°C | Stainless steel AISI 316 |
| 630 mm | Single-sided pressure | PN2 | -50°C - +80°C | Stainless steel Duplex |
| 710 mm | Single-sided pressure | PN2 | -50°C - +80°C | Stainless steel AISI 316 |
| 800 mm | Single-sided pressure | PN1 | -50°C - +80°C | Stainless steel AISI 316 |
| 900 mm | Single-sided pressure | PN1 | -50°C - +80°C | Stainless steel AISI 316 |
| 1000 mm | Single-sided pressure | PN 0.5 | -50°C - +80°C | Stainless steel AISI 316 |
| 1100 mm | Single-sided pressure | PN 0.5 | -50°C - +80°C | Stainless steel AISI 316 |
Downloads
Datasheet
Item no.: N/A SP Gate Valves SVL - With Pneumatics
Learn More
×
SP Gate Valves SVL - With Pneumatics
Crafted from durable PEHD and stainless steel, this gate valve delivers exceptional performance and longevity. Its EPDM sealing system at the valve spade ensures a secure and reliable seal, while the encapsulated closing mechanism features a self-cleaning pocket function for consistent, 100% closure. Designed for demanding applications, it combines robust materials with advanced functionality for dependable operation.
Application: Rainwater and wastewater, process water and light liquid sludge.
Sizes and Specifications
| Diameter | Variant Type | Strength Class | Temperature | Material |
|---|---|---|---|---|
| 110 mm | One-sided pressure | PN2 | -50°C - +80°C | Stainless steel AISI 304 |
| 110 mm | One-sided pressure | PN2 | -50°C - +80°C | Stainless steel AISI 316 |
| 125 mm | One-sided pressure | PN2 | -50°C - +80°C | Stainless steel AISI 304 |
| 125 mm | One-sided pressure | PN2 | -50°C - +80°C | Stainless steel AISI 316 |
| 160 mm | One-sided pressure | PN2 | -50°C - +80°C | Stainless steel AISI 304 |
| 160 mm | One-sided pressure | PN2 | -50°C - +80°C | Stainless steel AISI 316 |
| 200 mm | One-sided pressure | PN1 | -50°C - +80°C | Stainless steel AISI 304 |
| 200 mm | One-sided pressure | PN1 | -50°C - +80°C | Stainless steel AISI 316 |
| 250 mm | One-sided pressure | PN1 | -50°C - +80°C | Stainless steel AISI 304 |
| 250 mm | One-sided pressure | PN1 | -50°C - +80°C | Stainless steel AISI 316 |
| 315 mm | One-sided pressure | PN1 | -50°C - +80°C | Stainless steel AISI 304 |
| 315 mm | One-sided pressure | PN1 | -50°C - +80°C | Stainless steel AISI 316 |
Downloads
Datasheet
Item no.: N/A SP Gate Valves SVLT - With Pneumatics
Learn More
×
SP Gate Valves SVLT - With Pneumatics
Crafted from durable PEHD and stainless steel, this gate valve delivers exceptional performance and longevity. Its EPDM sealing system at the valve spade ensures a secure and reliable seal, while the encapsulated closing mechanism features a self-cleaning pocket function for consistent, 100% closure. Designed for demanding applications, it combines robust materials with advanced functionality for dependable operation.
Application: Rainwater and process water, can be used when pumping in a pipe system.
Sizes and Specifications
| Diameter | Variant Type | Strength Class | Temperature | Material |
|---|---|---|---|---|
| 110 mm | One-sided pressure | PN2 | -50°C - +80°C | Stainless steel AISI 304 |
| 110 mm | One-sided pressure | PN2 | -50°C - +80°C | Stainless steel AISI 316 |
| 125 mm | One-sided pressure | PN2 | -50°C - +80°C | Stainless steel AISI 304 |
| 125 mm | One-sided pressure | PN2 | -50°C - +80°C | Stainless steel AISI 316 |
| 160 mm | One-sided pressure | PN2 | -50°C - +80°C | Stainless steel AISI 304 |
| 160 mm | One-sided pressure | PN2 | -50°C - +80°C | Stainless steel AISI 316 |
| 200 mm | One-sided pressure | PN1 | -50°C - +80°C | Stainless steel AISI 304 |
| 200 mm | One-sided pressure | PN1 | -50°C - +80°C | Stainless steel AISI 316 |
| 250 mm | One-sided pressure | PN1 | -50°C - +80°C | Stainless steel AISI 304 |
| 250 mm | One-sided pressure | PN1 | -50°C - +80°C | Stainless steel AISI 316 |
| 315 mm | One-sided pressure | PN1 | -50°C - +80°C | Stainless steel AISI 304 |
| 315 mm | One-sided pressure | PN1 | -50°C - +80°C | Stainless steel AISI 316 |
Downloads
Datasheet
Item no.: N/A SP Gate Valves SVL - With Hydraulics
Learn More
×
SP Gate Valves SVL - With Hydraulics
Crafted from impact-resistant PEHD and stainless steel, this gate valve delivers exceptional durability and performance. Its EPDM sealing system ensures a tight seal at the valve spade, while the encapsulated closing mechanism features a self-cleaning pocket function for consistent, 100% closure.
Ideal for handling rainwater, wastewater, process water, and light liquid sludge, this valve offers a reliable solution for demanding applications.
Sizes and Specifications
| Diameter | Variant Type | Strength Class | Temperature | Material |
|---|---|---|---|---|
| 110 mm | One-sided pressure | PN2 | -50°C - +80°C | Stainless steel AISI 304 |
| 110 mm | One-sided pressure | PN2 | -50°C - +80°C | Stainless steel AISI 316 |
| 125 mm | One-sided pressure | PN2 | -50°C - +80°C | Stainless steel AISI 304 |
| 125 mm | One-sided pressure | PN2 | -50°C - +80°C | Stainless steel AISI 316 |
| 160 mm | One-sided pressure | PN2 | -50°C - +80°C | Stainless steel AISI 304 |
| 160 mm | One-sided pressure | PN2 | -50°C - +80°C | Stainless steel AISI 316 |
| 200 mm | One-sided pressure | PN1 | -50°C - +80°C | Stainless steel AISI 304 |
| 200 mm | One-sided pressure | PN1 | -50°C - +80°C | Stainless steel AISI 316 |
| 250 mm | One-sided pressure | PN1 | -50°C - +80°C | Stainless steel AISI 304 |
| 250 mm | One-sided pressure | PN1 | -50°C - +80°C | Stainless steel AISI 316 |
| 315 mm | One-sided pressure | PN1 | -50°C - +80°C | Stainless steel AISI 304 |
| 315 mm | One-sided pressure | PN1 | -50°C - +80°C | Stainless steel AISI 316 |
Downloads
Datasheet
Item no.: N/A SP Gate Valves SVL - With Electric Actuator
Learn More
×
SP Gate Valves SVL - With Electric Actuator
Crafted from durable PEHD and stainless steel, this gate valve is equipped with an electric actuator for reliable on/off operation. Its encapsulated closing mechanism features a self-cleaning pocket design, ensuring a tight seal against one-sided fluid pressure.
Ideal for managing rainwater, wastewater, process water, and light liquid sludge, this valve combines robust construction with precision functionality for demanding applications.
Sizes and Specifications
| Diameter | Variant Type | Strength Class | Temperature | Material |
|---|---|---|---|---|
| 110 mm | One-sided pressure | PN2 | -50°C - +80°C | Stainless steel AISI 304 |
| 110 mm | One-sided pressure | PN2 | -50°C - +80°C | Stainless steel AISI 316 |
| 125 mm | One-sided pressure | PN2 | -50°C - +80°C | Stainless steel AISI 304 |
| 125 mm | One-sided pressure | PN2 | -50°C - +80°C | Stainless steel AISI 316 |
| 160 mm | One-sided pressure | PN2 | -50°C - +80°C | Stainless steel AISI 304 |
| 160 mm | One-sided pressure | PN2 | -50°C - +80°C | Stainless steel AISI 316 |
| 200 mm | One-sided pressure | PN1 | -50°C - +80°C | Stainless steel AISI 304 |
| 200 mm | One-sided pressure | PN1 | -50°C - +80°C | Stainless steel AISI 316 |
| 250 mm | One-sided pressure | PN1 | -50°C - +80°C | Stainless steel AISI 304 |
| 250 mm | One-sided pressure | PN1 | -50°C - +80°C | Stainless steel AISI 316 |
| 315 mm | One-sided pressure | PN1 | -50°C - +80°C | Stainless steel AISI 304 |
| 315 mm | One-sided pressure | PN1 | -50°C - +80°C | Stainless steel AISI 316 |
Downloads
Datasheet
Item no.: N/A SP Gate valves SVL - With Stand and PE Jacket
Learn More
×
SP Gate valves SVL - With Stand and PE Jacket
Made from impact-resistant PEHD and stainless steel, this sliding valve features an EPDM sealing system at the valve spade for enhanced durability. Its encapsulated closing mechanism, with a self-cleaning pocket function, ensures 100% closure.
Perfect for rainwater and wastewater, process water, and light liquid sludge, this valve provides reliable performance in a variety of demanding fluid management applications.
Sizes and Specifications
| Diameter | Variant Type | Strength Class | Temperature | Material |
|---|---|---|---|---|
| 110 mm | One-sided pressure | PN2 | -50°C - +80°C | Stainless steel AISI 304 |
| 110 mm | One-sided pressure | PN2 | -50°C - +80°C | Stainless steel AISI 316 |
| 125 mm | One-sided pressure | PN2 | -50°C - +80°C | Stainless steel AISI 304 |
| 125 mm | One-sided pressure | PN2 | -50°C - +80°C | Stainless steel AISI 316 |
| 160 mm | One-sided pressure | PN2 | -50°C - +80°C | Stainless steel AISI 304 |
| 160 mm | One-sided pressure | PN2 | -50°C - +80°C | Stainless steel AISI 316 |
| 200 mm | Two-sided pressure | PN2 | -50°C - +80°C | Stainless steel AISI 304 |
| 200 mm | Two-sided pressure | PN2 | -50°C - +80°C | Stainless steel AISI 316 |
| 250 mm | Two-sided pressure | PN2 | -50°C - +80°C | Stainless steel AISI 304 |
| 250 mm | Two-sided pressure | PN2 | -50°C - +80°C | Stainless steel AISI 316 |
| 315 mm | Two-sided pressure | PN2 | -50°C - +80°C | Stainless steel AISI 304 |
| 315 mm | Two-sided pressure | PN2 | -50°C - +80°C | Stainless steel AISI 316 |
Downloads
Datasheet
Item no.: N/A Butterfly Valves
Learn More
×
Butterfly Valves
FKOM butterfly valves with sealing system at valve spade.
Valve body - PP glass-filled.
Valve spade - PP.
Sizes and Specifications
| Diameter | Strength class |
|---|---|
| 40 mm | PN10 |
| 50 mm | PN10 |
| 50 mm | PN4 |
| 65 mm | PN10 |
| 65 mm | PN4 |
| 80 mm | PN10 |
| 80 mm | PN4 |
| 100 mm | PN10 |
| 100 mm | PN4 |
| 125 mm | PN10 |
| 125 mm | PN4 |
| 150 mm | PN10 |
| 150 mm | PN4 |
| 200 mm | PN4 |
| 225 mm | PN10 |
| 250 mm | PN10 |
| 315 mm | PN10 |
Item no.: N/A Three-way Valves TV
Learn More
×
Three-way Valves TV
Three-way valve made of PE100 SDR 17 / Stainless steel.
The valve is not 100% tight at shut-off.
Application: Tailored for for media in the agricultural, mink and fish farming sectors.
Manual operation via an angle spanner.
Sizes and Specifications
| Diameter | Variant Type | Strength Class | Temperature | Material |
|---|---|---|---|---|
| 110 mm | Two-sided pressure | PN6 | -50°C - +80°C | Stainless steel AISI 304 |
| 125 mm | Two-sided pressure | PN6 | -50°C - +80°C | Stainless steel AISI 304 |
| 160 mm | Two-sided pressure | PN6 | -50°C - +80°C | Stainless steel AISI 304 |
| 200 mm | Two-sided pressure | PN6 | -50°C - +80°C | Stainless steel AISI 304 |
Downloads
Datasheet
Item no.: N/A Three-way Valves TVB
Learn More
×
Three-way Valves TVB
Three-way valve made of PE100 SDR 17 / Stainless steel.
The valve is not 100% tight at shut-off.
Application: Tailored for for media in the agricultural, mink and fish farming sectors.
Manual operation via an angle spanner.
Sizes and Specifications
| Diameter | Variant Type | Strength Class | Temperature | Material |
|---|---|---|---|---|
| 110 mm | Two-sided pressure | PN6 | -50°C - +80°C | Stainless steel AISI 304 |
| 125 mm | Two-sided pressure | PN6 | -50°C - +80°C | Stainless steel AISI 304 |
| 160 mm | Two-sided pressure | PN6 | -50°C - +80°C | Stainless steel AISI 304 |
| 200 mm | Two-sided pressure | PN6 | -50°C - +80°C | Stainless steel AISI 304 |
Downloads
Datasheet
Item no.: N/A Rotary Valves DV
Learn More
×
Rotary Valves DV
Rotary valve made of PVC.
Application: Rainwater, domestic water, non-aggressive chemical liquids and for regulating or stopping gases in greenhouses and ventilation systems.
Can be regulated manually with regulation above ground level.
Sizes and Specifications
| Diameter | Material |
|---|---|
| 110 mm | PVC |
| 125 mm | PVC |
| 160 mm | PVC |
| 200 mm | PVC |
| 250 mm | PVC |
| 315 mm | PVC |
Downloads
Datasheet
Item no.: N/A Control Lever SVL and RVL
Learn More
×
Control Lever SVL and RVL
Control rod for SVL and RVL gate valves.
Made of AISI 304 stainless steel and with PEHD protection tube.
Sizes and Specifications
| Variant Type |
|---|
| Superstructure 0-100 cm |
| Per 50 cm above 100 cm |
Item no.: N/A Control Lever for SVL, RVL for Floor Mounting
Learn More
×
Control Lever for SVL, RVL for Floor Mounting
Control rod for SVL and RVL gate valves.
Made of AISI 304 stainless steel and with PEHD protection tube.
Sizes and Specifications
| Type | Variant Type |
|---|---|
| Floor mounting | Stainless steel AISI 304 |
| Bayonet key | Extension 0-100 cm |
| Lock for open position | Stainless steel AISI 304 |
| Spindle console for wall mounting | Stainless steel AISI 304 |
| Spindle console for valve mounting | Stainless steel AISI 304 |
Item no.: N/A Control Lever SVLT
Learn More
×
Control Lever SVLT
Control lever for SVLT gate valves.
Made of AISI 304 stainless steel and with PEHD protection tube.
Sizes and Specifications
| Variant type |
|---|
| Superstructure 0-100 cm |
| Per 50 cm above 100 cm |
Item no.: N/A Control Lever RVM/SVM-TG
Learn More
×
Control Lever RVM/SVM-TG
Control rod for RVM/SVM-TG shut-off valve.
Made of AISI304 stainless steel and with PEHD protection tube.
Sizes and Specifications
| Diameter | Variant Type |
|---|---|
| 110 mm | Overlay 0-100 cm |
| 110 mm | Per 50 cm over 100 cm |
| 125 mm | Overlay 0-100 cm |
| 125 mm | Per 50 cm over 100 cm |
| 160 mm | Overlay 0-100 cm |
| 160 mm | Per 50 cm over 100 cm |
| 200 mm | Overlay 0-100 cm |
| 200 mm | Per 50 cm over 100 cm |
| 250 mm | Overlay 0-100 cm |
| 250 mm | Per 50 cm over 100 cm |
| 315 mm | Overlay 0-100 cm |
| 315 mm | Per 50 cm over 100 cm |
| 400 mm | Overlay 0-100 cm |
| 400 mm | Per 50 cm over 100 cm |
| 500 mm | Overlay 0-100 cm |
| 500 mm | Per 50 cm over 100 cm |
| 630 mm | Overlay 0-100 cm |
| 630 mm | Per 50 cm over 100 cm |
| 710 mm | Overlay 0-100 cm |
| 710 mm | Per 50 cm over 100 cm |
| 900 mm | Overlay 0-100 cm |
| 900 mm | Per 50 cm over 100 cm |
| 1000 mm | Overlay 0-100 cm |
| 1000 mm | Per 50 cm over 100 cm |
| 1200 mm | Overlay 0-100 cm |
| 1200 mm | Per 50 cm over 100 cm |
Item no.: N/A Wall Flange for Valves (for installation in manholes)
Learn More
×
Wall Flange for Valves (for installation in manholes)
For direct installation in manholes.
Sizes and Specifications
| Diameter | Material |
|---|---|
| 110 mm | PEHD |
| 125 mm | PEHD |
| 160 mm | PEHD |
| 200 mm | PEHD |
| 250 mm | PEHD |
| 315 mm | PEHD |
| 400 mm | PEHD |
| 500 mm | PEHD |
| 630 mm | PEHD |
Item no.: N/A Wall Flange for Valves (for mounting on flat walls)
Learn More
×
Wall Flange for Valves (for mounting on flat walls)
For direct mounting on flat walls.
Sizes and Specifications
| Diameter | Material |
|---|---|
| 110 mm | PEHD |
| 125 mm | PEHD |
| 160 mm | PEHD |
| 200 mm | PEHD |
| 250 mm | PEHD |
| 315 mm | PEHD |
Item no.: N/A Quick Release for Valve
Learn More
×
Quick Release for Valve
Quick release for SVL and SVLF valves. Made of AISI 304 stainless steel.
Sizes and Specifications
| Diameter | Material |
|---|---|
| 200 mm | Stainless steel AISI 304 |
| 250 mm | Stainless steel AISI 304 |
| 315 mm | Stainless steel AISI 304 |
Item no.: N/A DIN Flange Collar
Learn More
×
DIN Flange Collar
Flange collar for RIA valves
Sizes and Specifications
| Diameter | Strength Class | Material |
|---|---|---|
| 40 mm | PN10 | PE |
| 50 mm | PN10 | PE |
| 65 mm | PN10 | PE |
| 80 mm | PN10 | PE |
| 100 mm | PN10 | PE |
| 125 mm | PN10 | PE |
| 150 mm | PN10 | PE |
| 225 mm | PN10 | PE |
| 250 mm | PN10 | PE |
| 315 mm | PN10 | PE |
Item no.: N/A Connection - Flange
Learn More
×
Connection - Flange
RIA gate valve SVL, FVL, RVL, SVLT.
RIA shut-off valve SVM-TG, RVM-TG.
Sizes and Specifications
| Diameter | Material |
|---|---|
| 110 mm | PEHD |
| 125 mm | PEHD |
| 160 mm | PEHD |
| 200 mm | PEHD |
| 250 mm | PEHD |
| 315 mm | PEHD |
| 355 mm | PEHD |
| 400 mm | PEHD |
| 500 mm | PEHD |
| 630 mm | PEHD |
| 710 mm | PEHD |
| 800 mm | PEHD |
| 900 mm | PEHD |
| 1000 mm | PEHD |
| 1100 mm | PEHD |
| 1200 mm | PEHD |
Item no.: N/A Connection - Release flange
Learn More
×
Connection - Release flange
RIA gate valve SVL, FVL, RVL, SVLT.
RIA shut-off valve SVM-TG, RVM-TG.
Sizes and Specifications
| Diameter | Material |
|---|---|
| 110 mm | PEHD |
| 125 mm | PEHD |
| 160 mm | PEHD |
| 200 mm | PEHD |
| 250 mm | PEHD |
| 315 mm | PEHD |
| 355 mm | PEHD |
| 400 mm | PEHD |
| 500 mm | PEHD |
| 630 mm | PEHD |
Item no.: N/A Connection - Extension on Inlet or Outlet
Learn More
×
Connection - Extension on Inlet or Outlet
RIA gate valve SVL, FVL, RVL, SVLT.
RIA shut-off valve SVM-TG, RVM-TG.
Sizes and Specifications
| Diameter | Material |
|---|---|
| 110 mm | PEHD |
| 125 mm | PEHD |
| 160 mm | PEHD |
| 200 mm | PEHD |
| 250 mm | PEHD |
| 315 mm | PEHD |
| 355 mm | PEHD |
| 400 mm | PEHD |
| 500 mm | PEHD |
| 630 mm | PEHD |
Item no.: N/A Connection - Sleeve
Learn More
×
Connection - Sleeve
RIA gate valve SVL, FVL, RVL, SVLT.
RIA shut-off valve SVM-TG, RVM-TG.
Sizes and Specifications
| Diameter | Material |
|---|---|
| 110 mm | PEHD |
| 125 mm | PEHD |
| 160 mm | PEHD |
| 200 mm | PEHD |
| 250 mm | PEHD |
| 315 mm | PEHD |
| 355 mm | PEHD |
| 400 mm | PEHD |
| 500 mm | PEHD |
| 630 mm | PEHD |
Gate Valves
Item no.: N/A Square Knife Gate Valve SPH
Learn More
×
Square Knife Gate Valve SPH
Made of impact-resistant EPDM/Stainless steel AISI 304.
EPDM sealing system at the damper plate.
For wall mounting.
Used for rainwater and wastewater, process water, sludge and the agro and fish industries.
Sizes and Specifications
| Diameter | Variant Type | Strength Class |
|---|---|---|
| 110 mm | One-sided pressure | PN3 |
| 125 mm | One-sided pressure | PN3 |
| 160 mm | One-sided pressure | PN3 |
Downloads
Datasheet
Item no.: N/A Square Knife Gate Valve MTV
Learn More
×
Square Knife Gate Valve MTV
Made of impact-resistant EPDM/Stainless steel AISI 304.
EPDM sealing system at the damper plate.
For wall mounting.
Used for rainwater and wastewater, process water, sludge and the agro and fish industries.
Sizes and Specifications
| Diameter | Variant Type | Strength Class |
|---|---|---|
| 110 mm | One-sided pressure | PN3 |
| 125 mm | One-sided pressure | PN3 |
| 160 mm | One-sided pressure | PN3 |
Downloads
Datasheet
Item no.: N/A Square Knife Gate Valve SPP
Learn More
×
Square Knife Gate Valve SPP
No sealing at the damper plate.
Used for rainwater, wastewater, process water and sludge as well as the agricultural sector.
For wall mounting.
Sizes and Specifications
| Diameter | Variant Type | Strength Class |
|---|---|---|
| 110 mm | One-sided pressure | PN3 |
| 125 mm | One-sided pressure | PN3 |
| 160 mm | One-sided pressure | PN3 |
Downloads
Datasheet
Item no.: N/A SP Damper Valve SPS-TL
Learn More
×
SP Damper Valve SPS-TL
Damper valve made of impact-resistant EPDM/stainless steel.
EPDM sealing system at the valve plate.
Model with a square opening.
Designed for wall mounting.
Used for rainwater, wastewater, process water, sludge, as well as in the agro and fishery industries.
Sizes and Specifications
| Diameter | Variant Type | Strength Class |
|---|---|---|
| 200 x 200 mm | One-sided pressure | PN4 |
| 200 x 200 mm | One-sided pressure | PN4 |
| 250 x 250 mm | One-sided pressure | PN4 |
| 250 x 250 mm | One-sided pressure | PN4 |
| 315 x 315 mm | One-sided pressure | PN4 |
| 315 x 315 mm | One-sided pressure | PN4 |
| 400 x 400 mm | One-sided pressure | PN4 |
| 400 x 400 mm | One-sided pressure | PN4 |
| 500 x 500 mm | One-sided pressure | PN4 |
| 500 x 500 mm | One-sided pressure | PN4 |
| 630 x 630 mm | One-sided pressure | PN4 |
| 630 x 630 mm | One-sided pressure | PN4 |
Downloads
Datasheet
Item no.: N/A SP Damper Valve SPS-TL
Learn More
×
SP Damper Valve SPS-TL
Damper valve made of impact-resistant EPDM/stainless steel.
EPDM sealing system at the valve plate. Waterproof from the installation side.
Model with a square opening.
Designed for wall mounting.
Used for rainwater, wastewater, process water, sludge, as well as in the agro and fishery industries.
Sizes and Specifications
| Diameter | Variant Type | Strength Class |
|---|---|---|
| 200 x 200 mm | One-sided pressure | PN4 |
| 200 x 200 mm | One-sided pressure | PN4 |
| 250 x 250 mm | One-sided pressure | PN4 |
| 250 x 250 mm | One-sided pressure | PN4 |
| 315 x 315 mm | One-sided pressure | PN4 |
| 315 x 315 mm | One-sided pressure | PN4 |
| 400 x 400 mm | One-sided pressure | PN4 |
| 400 x 400 mm | One-sided pressure | PN4 |
| 500 x 500 mm | One-sided pressure | PN4 |
| 500 x 500 mm | One-sided pressure | PN4 |
| 630 x 630 mm | One-sided pressure | PN4 |
| 630 x 630 mm | One-sided pressure | PN4 |
Downloads
Datasheet
Item no.: N/A SP Damper Valve SPS-RTL
Learn More
×
SP Damper Valve SPS-RTL
Damper valve made of impact-resistant EPDM/stainless steel.
EPDM sealing system at the valve plate. Waterproof from the installation side.
Model with a square opening.
Designed for wall mounting.
Used for rainwater, wastewater, process water, sludge, as well as in the agro and fishery industries.
Sizes and Specifications
| Diameter | Variant Type | Strength Class | Material |
|---|---|---|---|
| 200 mm | One-sided pressure | PN4 | Stainless steel AISI 304 |
| 200 mm | One-sided pressure | PN4 | Stainless steel AISI 316 |
| 250 mm | One-sided pressure | PN4 | Stainless steel AISI 304 |
| 250 mm | One-sided pressure | PN4 | Stainless steel AISI 316 |
| 315 mm | One-sided pressure | PN4 | Stainless steel AISI 304 |
| 315 mm | One-sided pressure | PN4 | Stainless steel AISI 316 |
| 400 mm | One-sided pressure | PN4 | Stainless steel AISI 304 |
| 400 mm | One-sided pressure | PN4 | Stainless steel AISI 316 |
| 500 mm | One-sided pressure | PN4 | Stainless steel AISI 304 |
| 500 mm | One-sided pressure | PN4 | Stainless steel AISI 316 |
| 630 mm | One-sided pressure | PN4 | Stainless steel AISI 304 |
| 630 mm | One-sided pressure | PN4 | Stainless steel AISI 316 |
Downloads
Datasheet
Item no.: N/A SP Damper Valve AGR-KP
Learn More
×
SP Damper Valve AGR-KP
Damper made of impact-resistant EPDM/stainless steel.
EPDM sealing system at the damper plate.
For wall mounting.
Used for rainwater and wastewater, process water, sludge and the food and fish industries.
Sizes and Specifications
| Diameter | Variant Type | Strength Class | Material |
|---|---|---|---|
| 400 x 400 mm | One-sided pressure | PN4 | Stainless steel AISI 304 |
| 400 x 400 mm | One-sided pressure | PN4 | Stainless steel AISI 316 |
| 500 x 500 mm | One-sided pressure | PN4 | Stainless steel AISI 304 |
| 500 x 500 mm | One-sided pressure | PN4 | Stainless steel AISI 316 |
| 600 x 600 mm | One-sided pressure | PN4 | Stainless steel AISI 304 |
| 600 x 600 mm | One-sided pressure | PN4 | Stainless steel AISI 316 |
Item no.: N/A SP Damper Valve SPS-TG
Learn More
×
SP Damper Valve SPS-TG
Damper made of impact-resistant EPDM/stainless steel.
EPDM sealing system at the damper plate.
For wall mounting.
Used for rainwater and wastewater, process water, sludge and the food and fish industries.
Sizes and Specifications
| Diameter | Variant Type | Strength Class | Material |
|---|---|---|---|
| 200 mm | Two-sided pressure | PN4 | Stainless steel AISI 304 |
| 200 mm | Two-sided pressure | PN4 | Stainless steel AISI 316 |
| 250 mm | Two-sided pressure | PN4 | Stainless steel AISI 304 |
| 250 mm | Two-sided pressure | PN4 | Stainless steel AISI 316 |
| 315 mm | Two-sided pressure | PN4 | Stainless steel AISI 304 |
| 315 mm | Two-sided pressure | PN4 | Stainless steel AISI 316 |
| 400 mm | Two-sided pressure | PN4 | Stainless steel AISI 304 |
| 400 mm | Two-sided pressure | PN4 | Stainless steel AISI 316 |
| 500 mm | Two-sided pressure | PN4 | Stainless steel AISI 304 |
| 500 mm | Two-sided pressure | PN4 | Stainless steel AISI 316 |
| 600 mm | Two-sided pressure | PN4 | Stainless steel AISI 304 |
| 600 mm | Two-sided pressure | PN4 | Stainless steel AISI 316 |
Downloads
Datasheet
Item no.: N/A SP Damper Valve MPV-TG
Learn More
×
SP Damper Valve MPV-TG
Damper made of impact-resistant EPDM/stainless steel.
EPDM sealing system at the damper plate.
For wall mounting.
Used for rainwater and wastewater, process water, sludge and the food and fish industries.
Sizes and Specifications
| Diameter | Variant Type | Strength Class | Material |
|---|---|---|---|
| 200 mm | One-sided pressure | PN4 | Stainless steel AISI 304 |
| 200 mm | One-sided pressure | PN4 | Stainless steel AISI 316 |
| 250 mm | One-sided pressure | PN4 | Stainless steel AISI 304 |
| 250 mm | One-sided pressure | PN4 | Stainless steel AISI 316 |
| 315 mm | One-sided pressure | PN4 | Stainless steel AISI 304 |
| 315 mm | One-sided pressure | PN4 | Stainless steel AISI 316 |
| 400 mm | One-sided pressure | PN4 | Stainless steel AISI 304 |
| 400 mm | One-sided pressure | PN4 | Stainless steel AISI 316 |
| 500 mm | One-sided pressure | PN4 | Stainless steel AISI 304 |
| 500 mm | One-sided pressure | PN4 | Stainless steel AISI 316 |
| 630 mm | One-sided pressure | PN4 | Stainless steel AISI 304 |
| 630 mm | One-sided pressure | PN4 | Stainless steel AISI 316 |
| 710 mm | One-sided pressure | PN4 | Stainless steel AISI 304 |
| 710 mm | One-sided pressure | PN4 | Stainless steel AISI 316 |
| 800 x 800 mm | One-sided pressure | PN4 | Stainless steel AISI 304 |
| 800 x 800 mm | One-sided pressure | PN4 | Stainless steel AISI 316 |
| 900 x 900 mm | One-sided pressure | PN4 | Stainless steel AISI 304 |
| 900 x 900 mm | One-sided pressure | PN4 | Stainless steel AISI 316 |
| 1000 x 1000 mm | One-sided pressure | PN4 | Stainless steel AISI 304 |
| 1000 x 1000 mm | One-sided pressure | PN4 | Stainless steel AISI 316 |
Item no.: N/A SP Damper Valve SPV-B-TG
Learn More
×
SP Damper Valve SPV-B-TG
Stainless steel shut-off valve.
EPDM sealing system at the damper plate.
Used for rainwater, wastewater, process water and sludge as well as agricultural and industrial applications.
For wall mounting.
Sizes and Specifications
| Diameter | Variant Type | Strength Class |
|---|---|---|
| 200 mm | Two-sided pressure | PN6 |
| 250 mm | Two-sided pressure | PN6 |
| 315 mm | Two-sided pressure | PN6 |
| 400 mm | Two-sided pressure | PN6 |
| 500 mm | Two-sided pressure | PN6 |
| 630 mm | Two-sided pressure | PN5 |
| 710 mm | Two-sided pressure | PN4 |
| 800 mm | Two-sided pressure | PN3 |
Downloads
Datasheet
Item no.: N/A SP Overflow Damper OPV-TG
Learn More
×
SP Overflow Damper OPV-TG
Spillway valve made of impact-resistant EPDM/stainless steel(AISI 304).
Used in municipal and industrial wastewater treatment plants and in open countryside where regulation is required.
Installation in duct or as a wall damper.
Item no.: N/A SP Flush Valve SPU
Learn More
×
SP Flush Valve SPU
The flush valve is used for flushing sludge deposits in rainwater basins. Material - Stainless steel AISI 304.
Dimensioned according to basin size.
Efficient and environmentally friendly flushing method.
Item no.: N/A SP Shut-off Damper MTV
Learn More
×
SP Shut-off Damper MTV
Damper made of impact-resistant PEHD/stainless steel(AISI 316).
Used as a stop valve for road construction and construction damper for civil engineering works.
For wall mounting.
Sizes and Specifications
| Diameter | Variant Type | Strength Class | Material |
|---|---|---|---|
| 100 mm | One-sided pressure | PN3 | Stainless steel AISI 316 |
| 125 mm | One-sided pressure | PN3 | Stainless steel AISI 316 |
| 160 mm | One-sided pressure | PN3 | Stainless steel AISI 316 |
Downloads
Datasheet
Item no.: N/A SP Shut-off Damper SPV
Learn More
×
SP Shut-off Damper SPV
Damper made of impact-resistant EPDM/stainless steel(AISI 304).
EPDM sealing system at the damper plate, two-sided pressure. Available with square or circular opening.
Used for rainwater, wastewater, process water and sludge.
Sizes and Specifications
| Diameter | Variant Type | Strength Class |
|---|---|---|
| 150 mm | With sealing system against wall | 6 mvs |
| 200 mm | With sealing system against wall | 6 mvs |
| 250 mm | With sealing system against wall | 6 mvs |
| 315 mm | With sealing system against wall | 6 mvs |
| 400 mm | With sealing system against wall | 6 mvs |
Downloads
Datasheet
Item no.: N/A SP Shut-off Damper SPV-TG
Learn More
×
SP Shut-off Damper SPV-TG
Damper made of impact-resistant EPDM/stainless steel(AISI 304).
Used for sealing off large ducts with high fluid pressure.
100% watertight in both directions.
Screw operated non-rising spindle with handwheel.
For wall mounting. Strength class can be adjusted per client requirements.
Sizes and Specifications
| Diameter | Variant Type |
|---|---|
| 150 mm | With sealing system against wall |
| 200 mm | With sealing system against wall |
| 250 mm | With sealing system against wall |
| 315 mm | With sealing system against wall |
| 400 mm | With sealing system against wall |
| 500 mm | With sealing system against wall |
| 630 mm | With sealing system against wall |
| 710 mm | With sealing system against wall |
| 800 mm | With sealing system against wall |
Item no.: N/A SP Shut-off Damper SPM-H-TG
Learn More
×
SP Shut-off Damper SPM-H-TG
Shut-off damper made of impact-resistant EPDM/stainless steel(AISI 316).
EPDM sealing system at the damper plate.
For wall mounting.
Used for domestic water in industrial plants, wastewater in municipal and industrial wastewater treatment plants.
Sizes and Specifications
| Diameter | Variant Type | Strength Class |
|---|---|---|
| 630 x 630 mm | One-sided pressure | PN6 |
| 800 x 800 mm | One-sided pressure | PN6 |
| 1000 x 1000 mm | One-sided pressure | PN6 |
| 1200 x 1200 mm | One-sided pressure | PN6 |
Item no.: N/A SP Shut-off Damper SPM-P-TG
Learn More
×
SP Shut-off Damper SPM-P-TG
Shut-off damper made of impact-resistant EPDM/stainless steel(AISI 304).
EPDM sealing system at the damper plate.
For wall mounting.
Used for domestic water in industrial plants, wastewater in municipal and industrial wastewater treatment plants.
Sizes and Specifications
| Diameter | Variant type | Styrkeklasse |
|---|---|---|
| 800 x 800 mm | En - sidet tryk | PN6 |
| 1000 x 1000 mm | En - sidet tryk | PN6 |
| 1200 x 1200 mm | En - sidet tryk | PN6 |
| 1400 x 1400 mm | En - sidet tryk | PN6 |
Downloads
Datasheet
Item no.: N/A SP Shut-off Damper SPM-S-TG
Learn More
×
SP Shut-off Damper SPM-S-TG
Shut-off damper made of impact-resistant EPDM/stainless steel.
EPDM sealing system at the damper plate.
For wall mounting.
Used for domestic water in industrial plants, wastewater in municipal and industrial wastewater treatment plants.
Sizes and Specifications
| Diameter | Variant Type | Strength Class | Material |
|---|---|---|---|
| 800 x 800 mm | One-sided pressure | PN6 | Stainless steel AISI 304 |
| 800 x 800 mm | One-sided pressure | PN6 | Stainless steel AISI 316 |
| 1000 x 1000 mm | One-sided pressure | PN6 | Stainless steel AISI 304 |
| 1000 x 1000 mm | One-sided pressure | PN6 | Stainless steel AISI 316 |
| 1200 x 1200 mm | One-sided pressure | PN6 | Stainless steel AISI 304 |
| 1200 x 1200 mm | One-sided pressure | PN6 | Stainless steel AISI 316 |
| 1400 x 1400 mm | One-sided pressure | PN6 | Stainless steel AISI 304 |
| 1400 x 1400 mm | One-sided pressure | PN6 | Stainless steel AISI 316 |
Downloads
Datasheet
Item no.: N/A SP Duct Damper KS
Learn More
×
SP Duct Damper KS
Duct damper made of impact-resistant EPDM/stainless steel.
EPDM sealing system at the damper plate. Watertight from the installation side.
For installation in the duct opening or at the duct end wall.
Used for wastewater and sewage sludge in sewer systems and wastewater treatment plants.
Sizes and Specifications
| Diameter | Variant Type | Strength Class | Material |
|---|---|---|---|
| Custom | With sealing system at damper plate | Custom | Stainless steel AISI 304 |
Downloads
Datasheet
Item no.: N/A Operating Lever SPS-TG, SPK-TG
Learn More
×
Operating Lever SPS-TG, SPK-TG
For SPS-TG stop damper and SPK-TG shut-off damper.
Made of AISI 304 stainless steel.
Sizes and Specifications
| Diameter | Variant Type |
|---|---|
| 200-250-315 mm | Overlay 0-100 cm |
| 200-250-315 mm | Per 50 cm above |
| 400-500-630-800 mm | Overlay 0-100 cm |
| 400-500-630-800 mm | Per 50 cm above |
Item no.: N/A Operating Lever for SPM-H-TG, SPM-P-TG, SPM-S-TG, SPM-K-TG, OPV-TG shut-off dampers
Learn More
×
Operating Lever for SPM-H-TG, SPM-P-TG, SPM-S-TG, SPM-K-TG, OPV-TG shut-off dampers
For SPS-TG stop damper and SPK-TG shut-off damper.
Made of AISI 304 stainless steel.
Sizes and Specifications
| Diameter | Variant Type |
|---|---|
| 630-900 mm | Superstructure 0-100 cm |
| 630-900 mm | Per 50 cm above |
| 1000-1200 mm | Superstructure 0-100 cm |
| 1000-1200 mm | Per 50 cm above |
Item no.: N/A Accessories for AGR-KP, KS
Learn More
×
Accessories for AGR-KP, KS
Fits AGR-KP, KS.
Also fits AGR-KP and KS, galvanised.
Sizes and Specifications
| Variant Type |
|---|
| Lifting wrench |
| Bolts/dowels |
Item no.: N/A Accessories for SPV, SPV-TG Shut-off Dampers
Learn More
×
Accessories for SPV, SPV-TG Shut-off Dampers
Made of AISI 304 stainless steel
Sizes and Specifications
| Diameter | Variant Type |
|---|---|
| 200-250-315 mm | Telescopic wall bracket |
| 200-250-315 mm | Single wall bracket |
| 200-250-315 mm | Cross joint |
| 200-250-315 mm | Motor console for electric actuator |
| 200-250-315 mm | Bolts/dowels per damper |
| 200-250-315 mm | Higher pressure ratio mounting anchors per damper |
| 400-500 mm | Telescopic wall bracket |
| 400-500 mm | Single wall bracket |
| 400-500 mm | Cross joint |
| 400-500 mm | Motor console for electric actuator |
| 400-500 mm | Bolts/dowels per damper |
| 400-500 mm | Higher pressure ratio mounting anchors per damper |
| 630-710-800 mm | Telescopic wall bracket |
| 630-710-800 mm | Single wall bracket |
| 630-710-800 mm | Cross joint |
| 630-710-800 mm | Motor console for electric actuator |
| 630-710-800 mm | Bolts/dowels per damper |
| 630-710-800 mm | Higher pressure ratio mounting anchors per damper |
Item no.: N/A Control-console for Floor Mounting - 90 cm
Learn More
×
Control-console for Floor Mounting - 90 cm
Made of AISI 304 stainless steel
Item no.: N/A Operating Lever for SPS-TL
Learn More
×
Operating Lever for SPS-TL
Made of AISI 304 stainless steel.
Sizes and Specifications
| Variant Type |
|---|
| Superstructure 0-100 cm |
| Per 50 cm above |
Item no.: N/A Operating Lever for SPS-TL/RTL
Learn More
×
Operating Lever for SPS-TL/RTL
Made of AISI 304 stainless steel.
Sizes and Specifications
| Variant Type |
|---|
| Superstructure 0-100 cm |
| Per 50 cm over 100 cm |
| Sealing against the wall |
| Telescopic wall bracket |
| Single wall bracket |
| Bolts/dowels per damper |
Item no.: N/A Operating Lever for SPV/SPV-TG
Learn More
×
Operating Lever for SPV/SPV-TG
Made of AISI 304 stainless steel.
Sizes and Specifications
| Diameter | Variant Type |
|---|---|
| 200-250-315 mm | Superstructure 0-100 cm |
| 200-250-315 mm | Per 50 cm over 100 cm |
| 400-500 mm | Superstructure 0-100 cm |
| 400-500 mm | Per 50 cm over 100 cm |
| 630-710-800 mm | Superstructure 0-100 cm |
| 630-710-800 mm | Per 50 cm over 100 cm |
Item no.: N/A Gasket Material for AGR, KS, MPV-TG, SPS-TL, SPS-TG, SPK-TG
Learn More
×
Gasket Material for AGR, KS, MPV-TG, SPS-TL, SPS-TG, SPK-TG
Material with self-adhesive seal for sealing between damper and wall. Sold in 100 cm increments.
Item no.: N/A Gasket Material for SPM-H-TG, SPM-P-TG, SPM-S-TG, OPV-TG
Learn More
×
Gasket Material for SPM-H-TG, SPM-P-TG, SPM-S-TG, OPV-TG
Material with self-adhesive seal for sealing between damper and wall. Sold in 100 cm increments.
Item no.: N/A Accessories for Dampers
Learn More
×
Accessories for Dampers
Made of AISI 304 stainless steel.
Sizes and Specifications
| Diameter | Variant Type |
|---|---|
| 200-250-315 mm | Telescopic wall bracket |
| 200-250-315 mm | Single wall bracket |
| 200-250-315 mm | Cross joint |
| 200-250-315 mm | Motor console for electric actuator |
| 200-250-315 mm | Bolts/anchors |
| 200-250-315 mm | Mounting anchors for higher pressure conditions |
| 400-500 mm | Telescopic wall bracket |
| 400-500 mm | Single wall bracket |
| 400-500 mm | Cross joint |
| 400-500 mm | Motor console for electric actuator |
| 400-500 mm | Bolts/anchors |
| 400-500 mm | Mounting anchors for higher pressure conditions |
| 630-710-800 mm | Telescopic wall bracket |
| 630-710-800 mm | Single wall bracket |
| 630-710-800 mm | Cross joint |
| 630-710-800 mm | Motor console for electric actuator |
| 630-710-800 mm | Bolts/anchors |
| 630-710-800 mm | Mounting anchors for higher pressure conditions |
Item no.: N/A Wall Flange for Dampers
Learn More
×
Wall Flange for Dampers
For direct installation in curved basins and manholes.
Made of PEHD 500 stainless steel.
Sizes and Specifications
| Diameter | Material |
|---|---|
| 200 mm | PEHD 500 |
| 250 mm | PEHD 500 |
| 315 mm | PEHD 500 |
| 400 mm | PEHD 500 |
| 500 mm | PEHD 500 |
| 630 mm | PEHD 500 |
