Coalescence separators

Item no.: N/A

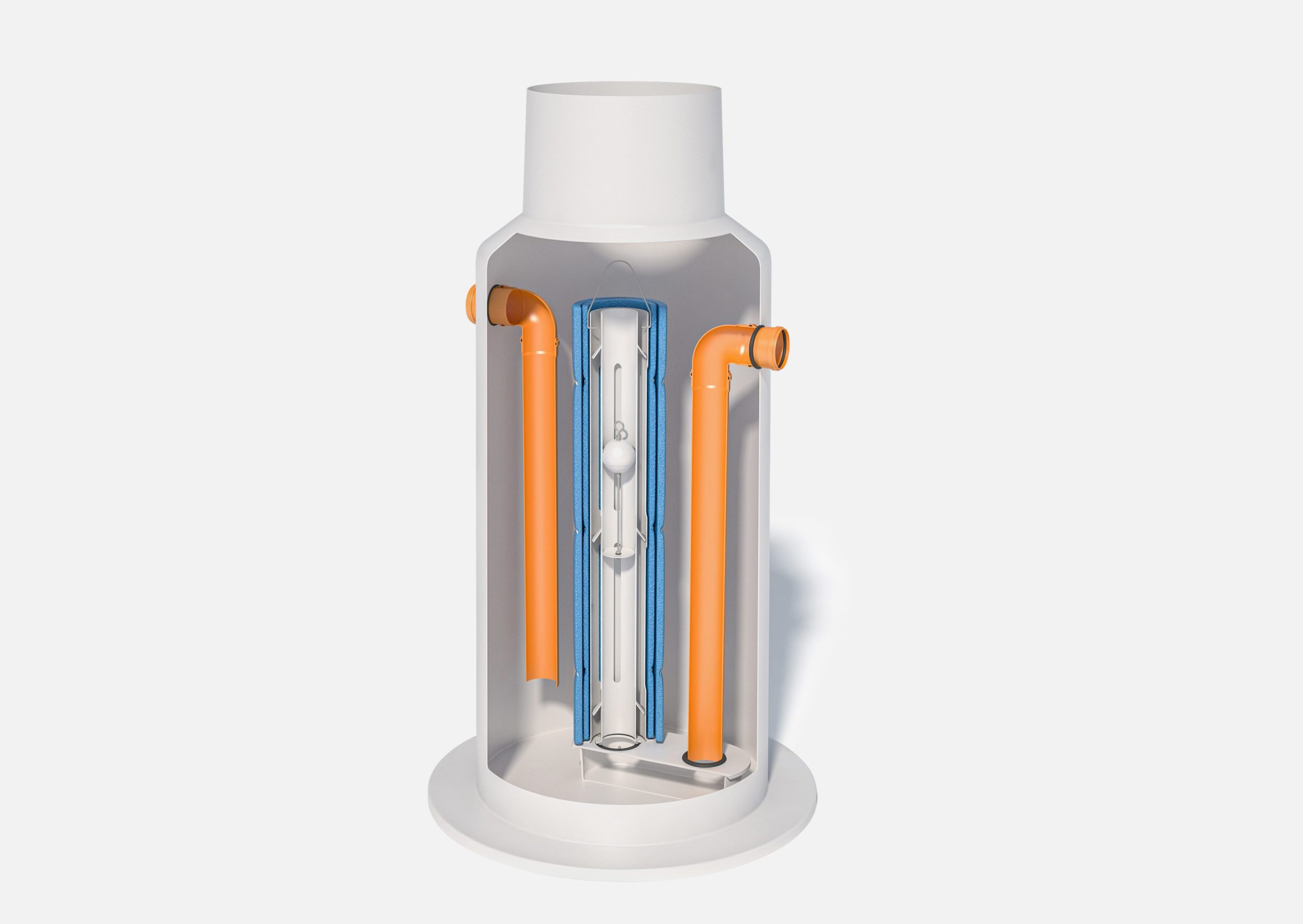

Our coalescence separators are designed to efficiently separate oil, petrol, and solid particles from wastewater. They are commonly used in environments such as service stations, mechanical workshops, oil depots, and car washes, where effective treatment of contaminated water is essential.

Manufactured from high-quality fiber-reinforced composite material, our separators offer exceptional durability and performance. The material is up to 20 times stronger than conventional plastics such as PVC, PE, and PP, providing excellent chemical resistance, long service life, and minimal maintenance requirements. In addition, the smooth surface ensures good hygiene and easy cleaning.

Each coalescence separator is supplied with coalescence filter modules and filters for optimal separation efficiency. Please note that automatic floating gates are not included.

Category:

Benefits

  • Versatile range: Available in various models to meet different specifications and project requirements.
  • Durable construction: Made from fully molded fiber-reinforced composite material for superior strength and reliability.
  • Quick and easy installation: Designed for simple setup and efficient implementation.
  • Corrosion and chemical resistant: Ideal for challenging and aggressive environments.
  • Exceptional durability: Built to ensure long-term performance with minimal maintenance.
  • Hygienic design: Smooth surfaces allow for easy cleaning and optimal hygiene.
  • Long service life: Engineered for sustainable, cost-effective operation.
  • Certified quality: CE-marked and fully compliant with DS/EN 858-1 standards.

Comes With

Delivered with assembly, operation and maintenance instructions.

Sizes and Specifications


Flow-rate
Diameter
Types
Height
Pipe attachment
1 l/sek. 750 mm SP-KU 1 1800 mm Ø110 mm
3 l/sek. 900 mm SP-KU 3 2100 mm Ø110 mm
6 l/sek. 1250 mm SP-KU 6 2100 mm Ø110 mm
8 l/sek. 1400 mm SP-KU 8 2100 mm Ø160 mm
10 l/sek. 1600 mm SP-KU 10 2200 mm Ø160 mm
12 l/sek. 1800 mm SP-KU 12 2200 mm Ø200 mm
15 l/sek. 2000 mm SP-KU 15 2200 mm Ø200 mm
20 l/sek. 2300 mm SP-KU 20 2200 mm Ø200 mm
24 l/sek. 2500 mm SP-KU 24 2600 mm Ø250 mm
30 l/sek. 2800 mm SP-KU 30 2600 mm Ø250 mm
35 l/sek. 3000 mm SP-KU 35 2800 mm Ø250 mm
48 l/sek. 3500 mm SP-KU 48 2800 mm Ø300 mm
62 l/sek. 4000 mm SP-KU 62 3000 mm Ø300 mm
79 l/sek. 4500 mm SP-KU 79 3000 mm Ø300 mm
100 l/sek. 2300 mm SP-KU 100 L 5600 mm Ø300 mm

Options

  • Customizable design: Available in tailor-made sizes to meet specific project requirements.
  • Traffic-load reinforcement: Can be strengthened to withstand heavy vehicle loads.
  • Groundwater protection: Optional reinforcement ensures stability under high groundwater pressure.

Extra equipment

  • Drain alarm.
  • Sand filter.
  • Automatic float shutter.
  • Sampling well.
  • Odor-proof cover.
  • Integrated sludge trap.
  • Integrated pump sump.
  • Sludge trap well.
Automatic floating gates
Diameter
 Type
107 mm 1-6 l/sek.
155 mm 8-10 l/sek.
195 mm 12-20 l/sek
240 mm 24-35 l/sek.
307 mm 48-100 l/sek.
Coalescence filters
Diameter Type Height
172 mm 1-6 l/sec. 1300 mm
172 mm 8-10 l/sec. 1700 mm
284 mm 12-20 l/sec. 1300 mm
380 mm 24-35 l/sec. 1500 mm
480 mm 48-100 l/sec. 1700 mm
Coalescence filter modules
Diameter Type
110 mm 1-6 l/sec.
160 mm 8-10 l/sec.
200 mm 12-20 l/sec.
250 mm 24-35 l/sec.
315 mm 48-100 l/sec.
Coalescence filter mounts
Diameter Type Height
110 mm 1-6 l/sec. 1300 mm
160 mm 8-10 l/sec. 1700 mm
200 mm 12-20 l/sec. 1300 mm
250 mm 24-35 l/sec. 1500 mm
315 mm 48-100 l/sec. 1700 mm
